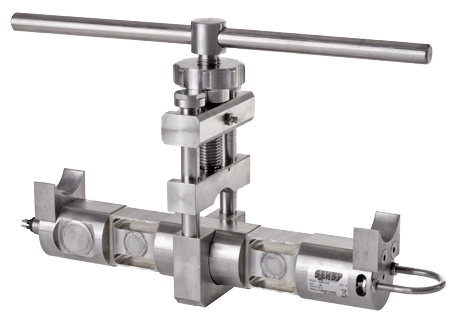

5560S/5565S Static Line Tensiometer

Brand: Sensy S.A.
Load cell specially designed to measure the tension force applied to a cable or a rope.
Features
  • Easy and fast mounting
  • Designed for static rope tension measurement
  • Protection: IP 67
  • Wide range of cable’s diameters: from 3 up to 90 mm (0.11" to 3.5")
  • Stainless steel
  • Cable length: 6 m
  • Available options:
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • Amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)
    • Subsea version (IP 68)
show more
Load cell specially designed to measure the tension force applied to a cable or a rope.
Features
  • Easy and fast mounting
  • Designed for static rope tension measurement
  • Protection: IP 67
  • Wide range of cable’s diameters: from 3 up to 90 mm (0.11" to 3.5")
  • Stainless steel
  • Cable length: 6 m
  • Available options:
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • Amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)
    • Subsea version (IP 68)
12 models matching criteria
5560S-15T-SL
SENSY Tensiometer on Cable Load Cell, Capacity 15t, 300% Breaking Load, IP67, 6m Cable, ATEX View More
  • Capacity: 25,000 Lbs
  • Breaking Load: 300%
  • Maximum Operating Load: 150%
  • Nominal Temperature Range: -10° to +45°C
  • Operating Temperature: -30° to +70°C
  • Storage Temperature: -50° to +85°C
  • Compensated Temperature -40° to +40°C
  • Accuracy Class: SL
  • Material of Construction: Stainless Steel
  • Cable Length: 0m
  • Output Signal (Sensitivity): 16 mA
  • Connector MS3102E-14S-2P Amphenol
  • CSA Class I, Div I, Groups A,B,C & D
  • Protection: IP67
8 - 11 weeks
Non-Cancellable / Non-Refundable
5560S-30T-SL
SENSY Tensiometer on Cable Load Cell, 200% Breaking Load, IP67, Cable, View More
  • Capacity: 60,000 Lbs
  • Breaking Load: 200%
  • Maximum Operating Load: 110%
  • Accuracy Class: SL
  • Cable Length: 10m
  • Output Signal (Sensitivity): ±1.5 mV/V
  • Protection: IP67
  • Special Options:
    • ​B-M12 STAINLESS
      • Binder stainless steel connector M12

    • K-CABLE PET 4X0.25
      • Polyethylene cable IGUS 4 conductors

    • Q-DB9 COND-USB
      • DB9 connector male at cable end for COND-USB

    • X-LONG CABLE
      • 10 meter


Out of Stock
5560S-45T-SL
SENSY Tensiometer on Cable Load Cell, Capacity 45t, 300% Breaking Load, IP67, 6m Cable, ATEX View More
  • Load cell 5560S-45t

    Wire rope tension meter

    Cable length 6 m

    Capacity 45t

    Breaking Load 300 %

    Maximum operating load 200 %

    Accuracy class SL

    Protection IP67

    Output signal ( sensitivity) 1 mV/V

    Included options :

    S-CAPACITE SPECIALE 1,00

    Other, special

    Q-DB9 COND-USB 1,00

    DB9 connector male at cable end

    for COND-USB

  • 8 - 10 weeks
    Non-Cancellable / Non-Refundable
    5560S-75T-SL
    SENSY Tensiometer on Cable Load Cell, Capacity 75t (150klbs), 300% Breaking Load, IP67, ATEX View More
    • Capacity: 75t
    • Breaking Load: 300%
    • Maximum Operating Load: 200%
    • Nominal Temperature Range: -10° to +45°C
    • Operating Temperature: -30° to +70°C
    • Storage Temperature: -50° to +85°C
    • Accuracy Class: SL
    • Material of Construction: Stainless Steel
    • Cable Length: 0m
    • Output Signal (Sensitivity): 16 mA
    • Protection: IP67
    42 - 58 days
    Non-Cancellable / Non-Refundable
    5560S-90KLBS-SL
    SENSY Tensiometer on Cable Load Cell, Capacity 45t (90K LBS), 300% Breaking Load, IP67, ATEX
    Out of Stock
    5560-FORC000049
    SENSY Tensiometer, 12T, 300% Breaking Load, 6m Cable, IP67 View More
    • Capacity: 12 ton
    • Breaking Load: 300%
    • Maximum Operating Load: 150%
    • Accuracy Class: SL
    • Material of Construction: Stainless Steel
    • Cable Length: 6m
    • Rope/Line diameter: 3/8" to 1.5"
    • Protection: IP67
    • INTEGRATED OPTION 1 Trapezoidal thread
    • INTEGRATED OPTION 2 Connector protection
    7 - 8 weeks
    5560-FORC000050
    SENSY Tensiometer, 5 ton, 300% Breaking Load, 6m Cable, IP67 View More
    • Capacity: 5 ton
    • Breaking Load: 300%
    • Maximum Operating Load: 150%
    • Accuracy Class: SL
    • Material of Construction: Stainless Steel
    • Cable Length: 6m
    • Rope/Line diameter: 3/8" to 7/8"
    • Protection: IP67
    • INTEGRATED OPTION 1 Trapezoidal thread
    • INTEGRATED OPTION 2 Connector protection
    7 - 8 weeks
    5560-FORC000051
    SENSY Tensiometer, 20 ton, 300% Breaking Load, 6m Cable, IP67 View More
    • Capacity: 20 ton
    • Breaking Load: 300%
    • Maximum Operating Load: 150%
    • Accuracy Class: SL
    • Material of Construction: Stainless Steel
    • Cable Length: 6m
    • Rope/Line diameter: 7/8" to 2"
    • Protection: IP67
    • INTEGRATED OPTION 1 Trapezoidal thread
    • INTEGRATED OPTION 2 Connector protection
    7 - 8 weeks
    Locking Lever 5560
    SENSY Locking Lever for 5560-TRIN View More
    SENSY Locking Lever for 5560-TRIN
    4 - 6 weeks
    Non-Cancellable / Non-Refundable
    SF-5560S-30T-VIPR
    SENSY Locking Screw for 5560-TRIN
    4 - 8 weeks
    Non-Cancellable / Non-Refundable

    Specifications

    Brand

    Applications

    • Hookload Sensor for Drilling & Mud-logging
    • Tension Measurement for Suspended Bridges & Foot-bridges, Big Tops
    • Tension Measurement of Cable, Rope, Shrouds & Riggings of Electric Pylons, Transmission Antenna's, Towers, Flare Masts, barge Mooring Lines

    Approvals & Certifications

    • ATEX Intrinsic Safety Ex II 1 GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • CE
    • CSA
    • IECEx

    Cable Length

    • 19.69 feet (6 metres)

    Capacity

    • 1 to 80 T

    Communication

    • RS-232C, RS-485
    • USB

    Electrical Connectors

    • DIN 45322

    Enclosure, Body Material

    • Alloy Steel
    • Stainless Steel

    Environmental Protection

    • IP67
    • IP68

    Excitation Voltage

    • 10 Vdc
    • 3-12 Vdc - Nominal Range

    Insulation Resistance

    • > 5,000 megaohms

    Load

    • Breaking Load: > 300 % of Full Scale
    • Permissible Dynamic Loading: 70 % of Full Scale

    Load Limit

    • 200 % of Full Scale

    Resistance

    • Input/Output: 352 ± 2 ohms

    Sensitivity

    • Nominal Sensitivity: ± 1 mV/V

    Service Temperature

    • -30° to 70° C (-22° to 158° F)

    Storage Temperature

    • -50° to 85° C (-58° to 185° F)

    Temperature Coefficient

    • < ± 0.1 % of Full Scale/10° C (18° F)

    Typical Applications

    The SENSY's load cell 5560S are perfectly designed to the following applications:
    • Hookload sensor for drilling, mud-logging
    • Tension measurement of cable, rope, shrouds and riggings of electric pylons, transmission antenna's, towers, flare masts, barge mooring lines
    • Tension measurement for suspended bridges and foot-bridges, big tops
