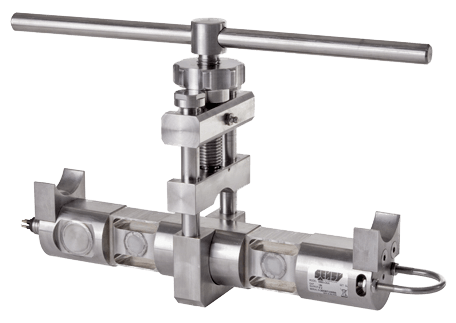

5560S/5565S Static Line Tensiometer

Brand: Sensy S.A.
Load cell specially designed to measure the tension force applied to a cable or a rope.
Features
  • Easy and fast mounting
  • Designed for static rope tension measurement
  • Protection: IP 67
  • Wide range of cable’s diameters: from 3 up to 90 mm (0.11" to 3.5")
  • Stainless steel
  • Cable length: 6 m
  • Available options:
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • Amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)
    • Subsea version (IP 68)
show more
Images are representations only.
Load cell specially designed to measure the tension force applied to a cable or a rope.
Features
  • Easy and fast mounting
  • Designed for static rope tension measurement
  • Protection: IP 67
  • Wide range of cable’s diameters: from 3 up to 90 mm (0.11" to 3.5")
  • Stainless steel
  • Cable length: 6 m
  • Available options:
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • Amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)
    • Subsea version (IP 68)
9 models matching criteria
5560-TRIN-85KLBS
SENSY Load Cell Wire Rope Tensiometer, Capacity 85klbs, 200% Breaking Load, IP67, 16mA Output, ATEX
1 In Stock
$5,472.83USD
$8.27 Shipping
5560S-45T-SL
SENSY Tensiometer on Cable Load Cell, Capacity 45t, 300% Breaking Load, IP67, 6m Cable, ATEX
Out of Stock
$2,667.69USD
$8.27 Shipping
5560S-15T-SL
SENSY Tensiometer on Cable Load Cell, Capacity 15t, 300% Breaking Load, IP67, 6m Cable, ATEX
Out of Stock
$4,185.35USD
$8.27 Shipping
5560S-30T-SL
SENSY Tensiometer on Cable Load Cell, Capacity 30t, 300% Breaking Load, IP67, 6mCable, ATEX
Out of Stock
$4,393.16USD
$8.27 Shipping
5560-TRIN-63KLBS
SENSY Load Cell Wire Rope Tensiometer, Capacity 63klbs, 200% Breaking Load, IP67, 16mA Output, ATEX
Out of Stock
$4,518.19USD
$8.27 Shipping
5560S-60T-SL
SENSY Tensiometer on Cable Load Cell, Capacity 60t (135klbs), 300% Breaking Load, IP67, ATEX
42 - 58 days
$5,399.14USD
$8.27 Shipping
5560-TRIN-107KLBS
SENSY Load Cell Wire Rope Tensiometer, Capacity 107klbs, 200% Breaking Load, IP67, 16mA Output, ATEX
5 - 7 weeks
$5,598.68USD
$8.27 Shipping
5560S-75T-SL
SENSY Tensiometer on Cable Load Cell, Capacity 75t (150klbs), 300% Breaking Load, IP67, ATEX
42 - 58 days
$6,153.41USD
$8.27 Shipping
5560S-90KLBS-SL
SENSY Tensiometer on Cable Load Cell, Capacity 45t (90K LBS), 300% Breaking Load, IP67, ATEX
Out of Stock

5560S/5565S

Body Material

Typical Applications

The SENSY's load cell 5560S are perfectly designed to the following applications:
  • Hookload sensor for drilling, mud-logging
  • Tension measurement of cable, rope, shrouds and riggings of electric pylons, transmission antenna's, towers, flare masts, barge mooring lines
  • Tension measurement for suspended bridges and foot-bridges, big tops
