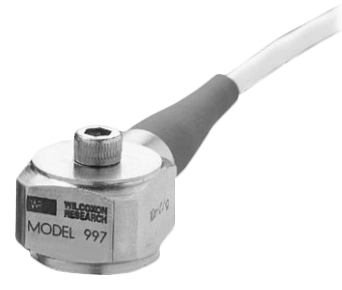

Model 997 Series High Frequency Integral Cable Accelerometer

Brand: Wilcoxon Sensing Technologies
High frequency accelerometers are ideal for applications involving high speed components such as machine tool spindles, compressors, and turbines. These applications often include gear mesh frequencies with higher harmonics or blade pass frequencies exceeding 60,000 CPM. Wilcoxon’s high frequency 997 series sensors offer 10 mV/g sensitivity, preventing sensor overload. Sensors with 10 mV/g output are most commonly used due to their high amplitude range (600 g) which can be present in high speed applications. Typically there is little measurable vibration in terms of displacement and velocity at high frequency; however tremendous amounts of acceleration may be present.
Features
  • Corrosion resistant
  • Hermetically sealed
  • ESD-protected
  • Reverse wiring protection
  • Internal ring offers extra isolation
  • IP67 integral cable
  • Manufactured in an approved ISO 9001 facility
show more
Images are representations only.
High frequency accelerometers are ideal for applications involving high speed components such as machine tool spindles, compressors, and turbines. These applications often include gear mesh frequencies with higher harmonics or blade pass frequencies exceeding 60,000 CPM. Wilcoxon’s high frequency 997 series sensors offer 10 mV/g sensitivity, preventing sensor overload. Sensors with 10 mV/g output are most commonly used due to their high amplitude range (600 g) which can be present in high speed applications. Typically there is little measurable vibration in terms of displacement and velocity at high frequency; however tremendous amounts of acceleration may be present.
Features
  • Corrosion resistant
  • Hermetically sealed
  • ESD-protected
  • Reverse wiring protection
  • Internal ring offers extra isolation
  • IP67 integral cable
  • Manufactured in an approved ISO 9001 facility

Model 997 Series

Model

Specifications

Approvals & Certifications

  • ISO 9001

Circuit Protection

  • ESD Protection
  • Reverse Wiring Protection

Electrical Connectors

  • Integral Cable (J10, 16 feet Integral Cable, Envirophone, Two Conductor Shielded)

Enclosure, Body Material

  • 316L Stainless Steel

Environmental Protection

  • Corrosion-Proof
  • IP67

Frequency

  • Frequency Response (± 3 dB): 0.5 to 29,000 Hz
  • Frequency Response (10%): 1 to 25,000 Hz
  • Frequency Response (5%): 1.5 to 20,000 Hz
  • Resonance Frequency, Mounted: > 45 kHz

Mounting

  • Model 997: 8-32 Captive Screw Mount
  • Model 997-M4: M4 Captive Screw

Noise

  • Electrical Noise, Equivalent G, Nominal (Broadband: 2.5 Hz to 25 kHz): 1,000 µg
  • Electrical Noise, Equivalent G, Nominal (Spectral: 1,000 Hz): 7 µg/√Hz
  • Electrical Noise, Equivalent G, Nominal (Spectral: 10 Hz): 25 µg/√Hz
  • Electrical Noise, Equivalent G, Nominal (Spectral: 100 Hz): 9 µg/√Hz

Non-Linearity

  • Amplitude Non-Linearity: 1%

Output Impedence

  • Maximum

Power Requirement

  • 18-30 Vdc
  • Current Regulating Diode: 2-10 mA

Range

  • Acceleration Range: 600 G Peak

Seal Type

  • Hermetic

Sensitivity

  • Base Strain Sensitivity, Maximum
  • Sensitivity, ± 10%, 25° C (77° F): 10 mV/g
  • Transverse Sensitivity, Maximum

Shock

  • Shock Limit: 5,000 G Peak

Temperature Range

  • -50° to 120° C (-58° to 248° F)

Turn-On Time

  • < 1 second

Vibration

  • Vibration Limit: 1,000 G Peak

Voltage

  • Bias Output Voltage, Nominal: 12 Vdc
