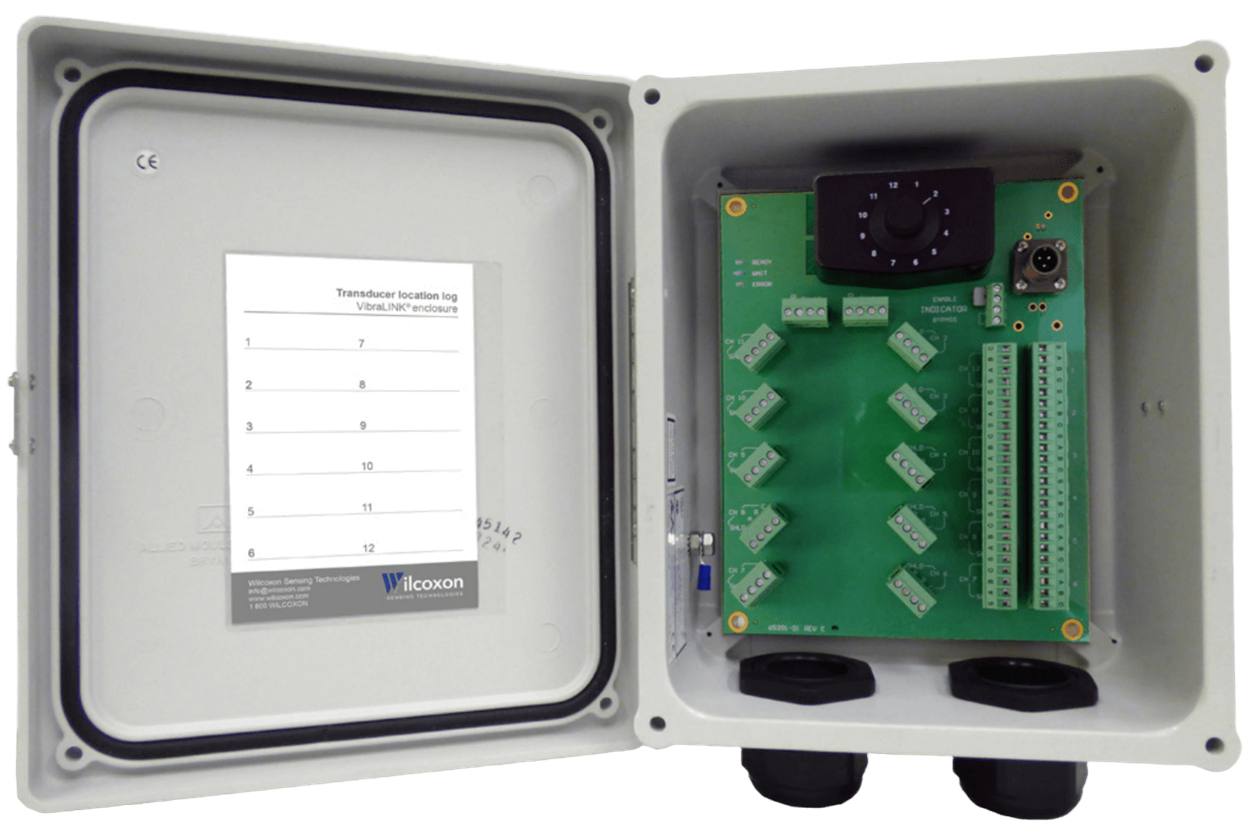

VibraLINK Switchable Junction Box

Brand: Wilcoxon Sensing Technologies
VibraLINK® switchboxes (VLS) handle up to 48 inputs of standard IEPE sensors. Flexible design enables a single board to be configured for 6, 8 or 12 channels. NEMA 4 rated enclosures are available in stainless steel or fiberglass to meet industrial or food processing applications. VibraLink® enclosures come standard with pre-drilled access holes for easy cable entry and exit with user-selected cable grips or conduits. An industry exclusive data ready light (patent pending) provides visual confirmation when sensor BOV has stabilized and data can be taken without risk of ski-slope interference. Low frequency anomolies resulting from magnet slap and dicharge time constant settling can be avoided. Wilcoxon’s advanced LED indication feature helps to minimize time spent in the field by ensuring only viable data has been collected. BNC and 2 pin MIL-5015 connectors are included for compatibility with most popular data collectors including the MachineryMate 800 meter. For online monitoring, optional terminal strip connectors are available. VibraLink switchboxes enable machinery health monitoring from a safe location minimizing risks of walkaround collection and reducing long cable costs.
Features
  • Data ready light
  • Up to 48 channels
  • 55% more internal space
  • Low cost
  • Durable and built to last
  • Lifetime warranty
  • BNC and MIL-5015 connector
  • For use with all IEPE sensors
  • Manufactured in an approved ISO 9001 facility
show more
Images are representations only.
VibraLINK® switchboxes (VLS) handle up to 48 inputs of standard IEPE sensors. Flexible design enables a single board to be configured for 6, 8 or 12 channels. NEMA 4 rated enclosures are available in stainless steel or fiberglass to meet industrial or food processing applications. VibraLink® enclosures come standard with pre-drilled access holes for easy cable entry and exit with user-selected cable grips or conduits. An industry exclusive data ready light (patent pending) provides visual confirmation when sensor BOV has stabilized and data can be taken without risk of ski-slope interference. Low frequency anomolies resulting from magnet slap and dicharge time constant settling can be avoided. Wilcoxon’s advanced LED indication feature helps to minimize time spent in the field by ensuring only viable data has been collected. BNC and 2 pin MIL-5015 connectors are included for compatibility with most popular data collectors including the MachineryMate 800 meter. For online monitoring, optional terminal strip connectors are available. VibraLink switchboxes enable machinery health monitoring from a safe location minimizing risks of walkaround collection and reducing long cable costs.
Features
  • Data ready light
  • Up to 48 channels
  • 55% more internal space
  • Low cost
  • Durable and built to last
  • Lifetime warranty
  • BNC and MIL-5015 connector
  • For use with all IEPE sensors
  • Manufactured in an approved ISO 9001 facility

VibraLINK

Channels

Size

Material

Standard Output

Online Connectivity

Terminal Type

Specifications

Approvals & Certifications

  • CE

Approvals & Certifications

  • ISO 9001

Channels

  • 12 to 48-Channels (Expandable) 20 x 16 x 8"
  • 6 to 12-Channels (Non-Expandable) Dimension 10 x 8 x 4"

Electrical Connectors

  • BNC Connector
  • Cable Grip
  • Conduit Connector
  • Output Connector: 2-Pin MIL-5015
  • Plug Connection

Enclosure, Body Material

  • Fiberglass
  • Stainless Steel

Environmental Protection

  • Fiberglass: NEMA 4X
  • IP66
  • Steel: NEMA 4

Indication

  • Data Setting Time, Variable, Indicated by Data Ready LED: Green LED (Stable BOV)
  • Data Setting Time, Variable, Indicated by Data Ready LED: Red LED (Error Detected)
  • Data Setting Time, Variable, Indicated by Data Ready LED: Yellow LED (BOV Stabilizing)

Materials of Construction

  • Hinge (Continuous Weld), Latch (Butterfly Knob): Stainless Steel

Mounting

  • Four-Corner Stainless Steel feet (Fiberglass Model Includes Configurable feet)

Sensor, Probe Type

  • Sensor Typical: IEPE

Termination

  • Quick-Connect
  • Screw Terminal Block
