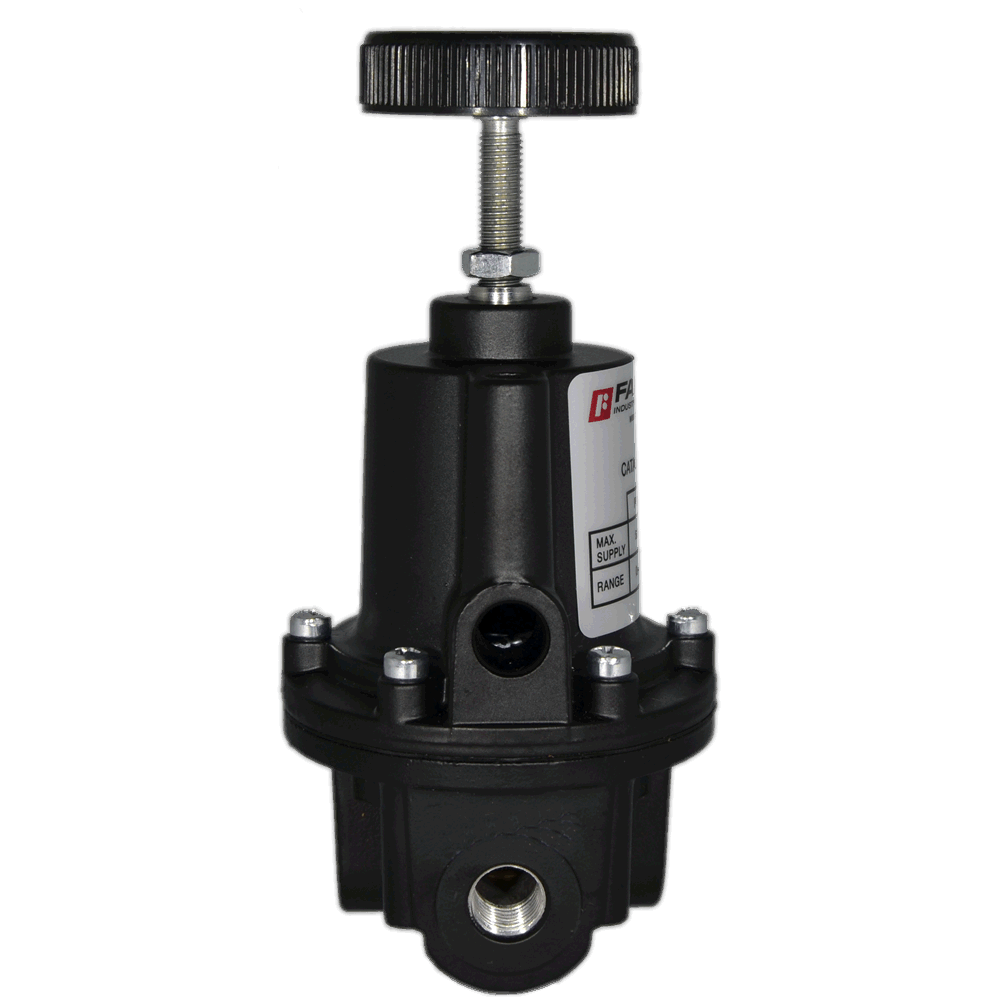

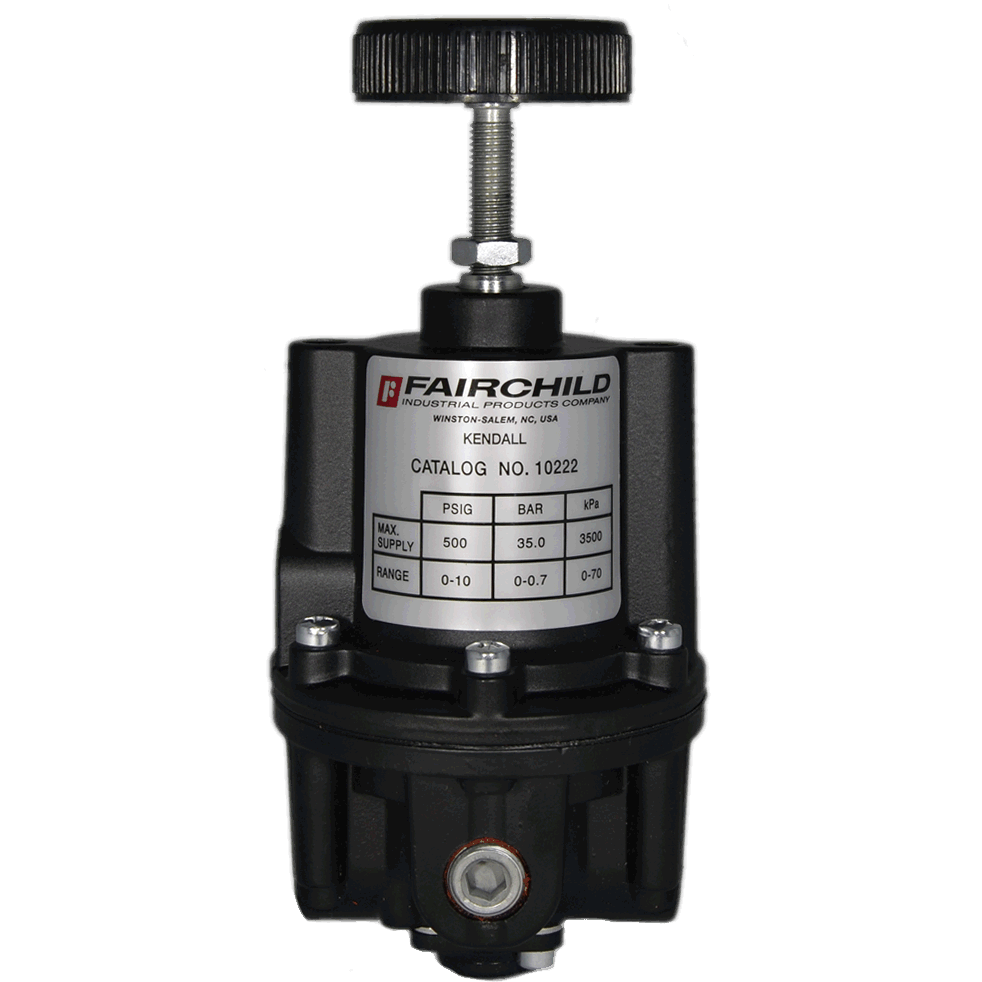

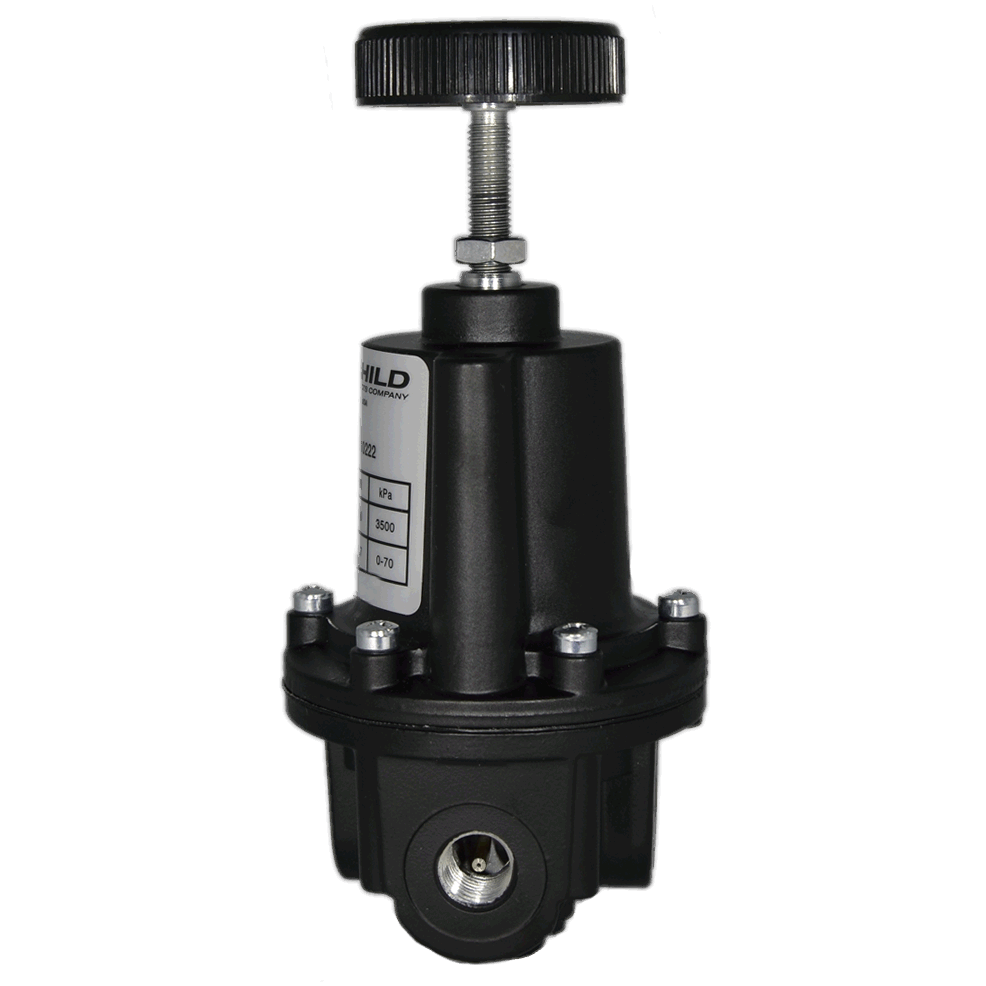

Model 10 Pneumatic Pressure Regulator

Brand: Fairchild Industrial Products
The Rotork Fairchild Model 10 is a precision pressure regulator designed for applications that require high performance and accurate process control. Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the supply valve in accordance with the flow velocity.

The Model 10 features control sensitivity of 1/8" water column and a balanced supply valve to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.

The Fairchild Model 10 pressure regulator will handle a 500 psi, 34 BAR, maximum supply pressure and offers nine (9) output pressure ranges from 0-2 psi, 0-0.15 BAR, 0-15 kPa, up to 5-400 psi, 0.3-28 BAR, 35-2,800 kPa. The Model 10 precision regulator offers 40 SCFM, 68 m3/hr flow capacity.

Typical Part Numbers are 10212, 10222, 10232, 10242, 10252, 10262, 10272, 10282, 10292, 10233, 10243, 10253, 10263, 10273, 10283, 10293
Features
  • Control sensitivity of 1/8" water column allows use in precision processes
  • Pressure balanced supply valve prevents supply pressure changes from affecting the setpoint
  • Optional check valve permits Backflow of downstream pressure when supply is opened to atmosphere
  • Separate control chamber isolates the diaphragm from the main flow to eliminate hunting and buzzing
  • An aspirator tube compensates downstream pressure droop under flow conditions
  • Canadian Registration Number (CRN) certification for all territories and provinces
  • NO Yellow Metals available for harsh media
show more
Images are representations only.
The Rotork Fairchild Model 10 is a precision pressure regulator designed for applications that require high performance and accurate process control. Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the supply valve in accordance with the flow velocity.

The Model 10 features control sensitivity of 1/8" water column and a balanced supply valve to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.

The Fairchild Model 10 pressure regulator will handle a 500 psi, 34 BAR, maximum supply pressure and offers nine (9) output pressure ranges from 0-2 psi, 0-0.15 BAR, 0-15 kPa, up to 5-400 psi, 0.3-28 BAR, 35-2,800 kPa. The Model 10 precision regulator offers 40 SCFM, 68 m3/hr flow capacity.

Typical Part Numbers are 10212, 10222, 10232, 10242, 10252, 10262, 10272, 10282, 10292, 10233, 10243, 10253, 10263, 10273, 10283, 10293
Features
  • Control sensitivity of 1/8" water column allows use in precision processes
  • Pressure balanced supply valve prevents supply pressure changes from affecting the setpoint
  • Optional check valve permits Backflow of downstream pressure when supply is opened to atmosphere
  • Separate control chamber isolates the diaphragm from the main flow to eliminate hunting and buzzing
  • An aspirator tube compensates downstream pressure droop under flow conditions
  • Canadian Registration Number (CRN) certification for all territories and provinces
  • NO Yellow Metals available for harsh media
190 models matching criteria
10203
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-20 psig, 0-150 kPa, 3/8" NPT
11 In Stock
$224.00USD
$9.99 Shipping
25433E
FAIRCHILD Model 25 Reversing Relay, 3/8" NPT, 0.5-30 psi
10 In Stock
$1,068.00USD
$9.99 Shipping
10233
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0.5-30 psig, 3-200 kPa, 3/8" NPT
1 In Stock
$224.00USD
$9.99 Shipping
10242
FAIRCHILD Model 10 Pneumatic Precision Regulator, 1-60 psig, 10-400 kPa, 1/4" NPT
1 In Stock
$224.00USD
$9.99 Shipping
10232B
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0.5-30 psig, 3-200 kPa, 1/4" NPT, Low Bleed
1 In Stock
$249.00USD
$9.99 Shipping
10263BET
FAIRCHILD Model 10 Pneumatic Precision Regulator, 2-150 psig, 15-1000 kPa, 3/8" NPT, Low Bleed, Tapped Exhaust, Tamper Proof
1 In Stock
$332.00USD
$9.99 Shipping
10282
FAIRCHILD Model 10 Pneumatic Precision Regulator, 5-300 psig, 35-2100 kPa, 1/4" NPT
1 In Stock
$423.00USD
$9.99 Shipping
25463
FAIRCHILD Model 25 Reversing Relay, 3/8" NPT, 2-150 psi
1 In Stock
$848.00USD
$9.99 Shipping
25462
FAIRCHILD Model 25 Reversing Relay,1/4" NPT, 2-150 psi
1 In Stock
$863.00USD
$9.99 Shipping
10202
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-20 psig, 0-150 kPa, 1/4" NPT
8 - 12 days
$224.00USD
$9.99 Shipping
available on backorder
10222
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 1/4" NPT
8 - 12 days
$224.00USD
$9.99 Shipping
available on backorder
10222H
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 1/4" BSPP (Parallel)
8 - 12 days
$224.00USD
$9.99 Shipping
available on backorder
10223
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 3/8" NPT
Out of Stock
$224.00USD
$9.99 Shipping
10223H
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 3/8" BSPP (Parallel)
8 - 12 days
$224.00USD
$9.99 Shipping
available on backorder
10232
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0.5-30 psig, 3-200 kPa, 1/4" NPT
8 - 12 days
$224.00USD
$9.99 Shipping
available on backorder
10232U
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0.5-30 psig, 3-200 kPa, 1/4" BSPT (Tapered)
8 - 12 days
$224.00USD
$9.99 Shipping
available on backorder
10233H
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0.5-30 psig, 3-200 kPa, 3/8" BSPP (Parallel)
8 - 12 days
$224.00USD
$9.99 Shipping
available on backorder
10243
FAIRCHILD Model 10 Pneumatic Precision Regulator, 1-60 psig, 10-400 kPa, 3/8" NPT
8 - 12 days
$224.00USD
$9.99 Shipping
available on backorder
10243H
FAIRCHILD Model 10 Pneumatic Precision Regulator, 1-60 psig, 10-400 kPa, 3/8" BSPP (Parallel)
8 - 12 days
$224.00USD
$9.99 Shipping
available on backorder
10262
FAIRCHILD Model 10 Pneumatic Precision Regulator, 2-150 psig, 15-1000 kPa, 1/4" NPT
8 - 12 days
$224.00USD
$9.99 Shipping
available on backorder
10262U
FAIRCHILD Model 10 Pneumatic Precision Regulator, 2-150 psig, 15-1000 kPa, 1/4" BSPT (Tapered)
8 - 12 days
$224.00USD
$9.99 Shipping
available on backorder
10263
FAIRCHILD Model 10 Pneumatic Precision Regulator, 2-150 psig, 15-1000 kPa, 3/8" NPT
8 - 12 days
$224.00USD
$9.99 Shipping
available on backorder
10263B
FAIRCHILD Model 10 Pneumatic Precision Regulator, 2-150 psig, 15-1000 kPa, 3/8" NPT, Low Bleed
8 - 12 days
$227.00USD
$9.99 Shipping
available on backorder
10212
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-2 psig, 0-15 kPa, 1/4" NPT
8 - 12 days
$237.00USD
$9.99 Shipping
available on backorder
10213
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-2 psig, 0-15 kPa, 3/8" NPT
8 - 12 days
$237.00USD
$9.99 Shipping
available on backorder

Model 10

Pressure Range

Port Size

Port Thread

Elastomers

  • view details

Actuation Adjustment Means

Actuation Adjustment Means

Actuation Adjustment Means

Actuation Adjustment Means

Actuation Adjustment Means

Actuation Adjustment Means

Actuation Adjustment Means

Actuation Adjustment Means

Actuation Adjustment Means

Relief

Exhaust Port

Mounting

Output Options

Output Options

Output Options

Output Options

Output Options

Output Options

Output Options

Yellow Metals

Specifications

Actuator Type

  • Knob Adjust
  • Plunger Operated
  • Screwdriver Adjust
  • Tamper-Proof

Ambient Temperature Range

  • -40° to 93° C (-40° to 200° F)

BSP Connection

  • 1/2" BSPP Female
  • 1/2" BSPT Female
  • 1/4" BSPP Female
  • 1/4" BSPT Female
  • 3/8" BSPP Female
  • 3/8" BSPT Female

Elastomers

  • Buna-N on Dacron
  • FluoroCarbon (Viton)
  • Silicone

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • Acceptable for use in Zones 1 & 2 for Gas Atmosphere, Groups IIA & IIB & Zones 21 & 22 for Dust Atmospheres

Exhaust Capacity - Relieving Units Only

  • 5.5 scfm
  • 5.5 scfm (9.35 m³/hour)
  • 9.4 m³/hour

Flow Capacity

  • 40 scfm
  • 40 scfm (68 m³/hour) at psig: 100 (bar: 7, kPa: 700) Supply & psig: 20 (bar: 1.5, kPa: 150) Set Point
  • 68 m³/hour

Media

  • Compressed Air
  • Gas

Mounting

  • None
  • Panel Mount

NPT Connection

  • 1/2" NPT Female
  • 1/4" NPT Female
  • 3/8" NPT Female

Output Options

  • Check Valve
  • None

Pressure Range

  • bar: 0 to 1.36
  • bar: 0 to 28
  • bar: 0.034 to 2.04
  • bar: 0.068 to 4.08
  • bar: 0.136 to 10.20
  • bar: 0.204 to 13.60
  • bar: 0.34 to 27.20
  • kPa: 0 to 137
  • kPa: 0 to 2,800
  • kPa: 13.6 to 1,020
  • kPa: 20.4 to 1,360
  • kPa: 3.4 to 204
  • kPa: 34 to 2,720
  • kPa: 6.8 to 408
  • psi: 0.5 to 30
  • psig: 0 to 20
  • psig: 0 to 400
  • psig: 1 to 60
  • psig: 2 to 150
  • psig: 3 to 200
  • psig: 5 to 400

Relief

  • Low Bleed
  • Low Flow
  • Non-Relieving
  • Relieving

Sensitivity

  • 1/8" WC (0.32 cm)

Supply Pressure - Maximum

  • bar: 35
  • kPa: 3,500
  • psig: 500

Supply Pressure Effect

  • less than 0.007 bar
  • less than psi: 0.01 (bar: 0.0007, kPa: 0.7)
  • less than psig: 0.1 (bar: 0.007, kPa: 0.7)
  • psig: 0.1 (bar: 0.007, kPa: 0.7) for a psig: 100 (bar: 7, kPa: 700) Change in Supply Pressure

Trim Material

  • Brass
  • Zinc-Plated Steel

Vent

  • Straight
  • Tapped Exhaust

Typical Applications

  • General Industrial
  • Packaging
  • Conveyance
  • Production Lines
  • Assembly

Markets
  • Factory Automation
  • Automotive
  • Heavy Industries
