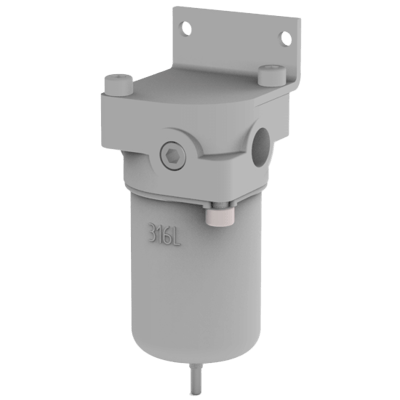

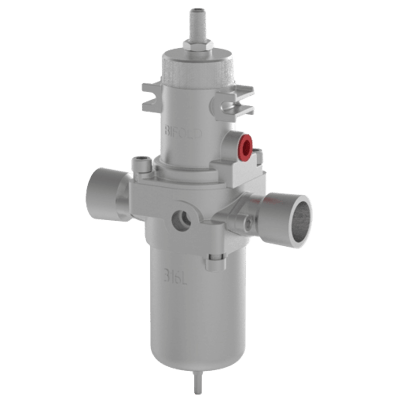

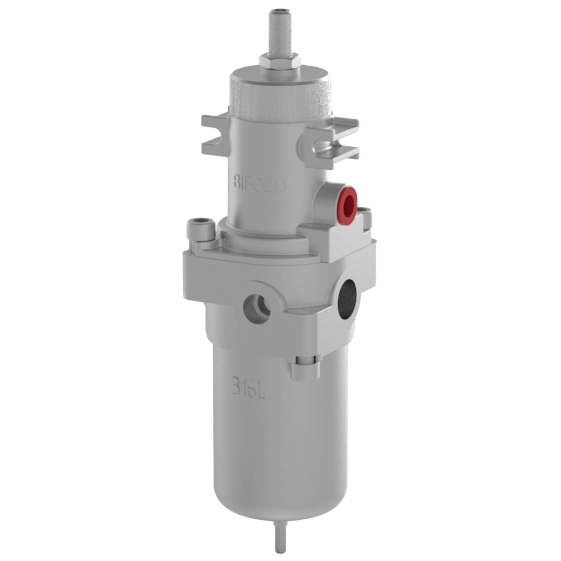

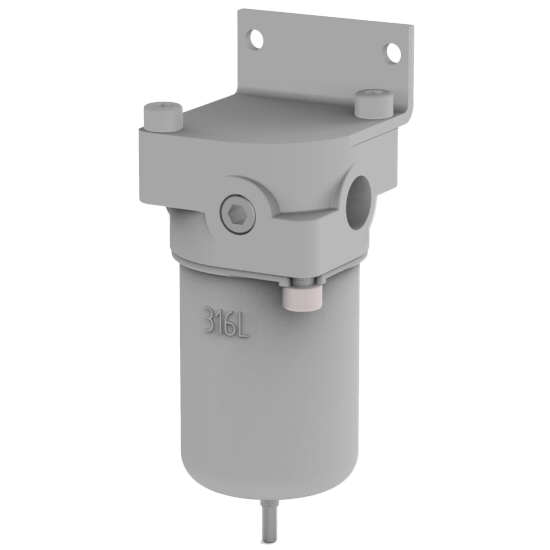

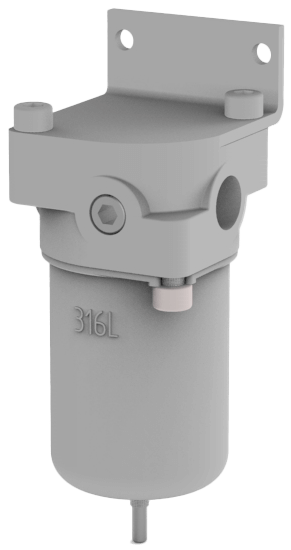

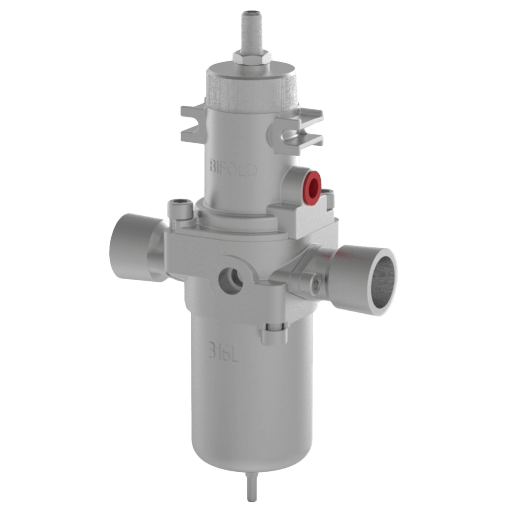

SC Filter Regulator

Brand: Bifold Group
Features:
  • Heavy duty all 316 stainless steel - Rugged and corrosion resistant
  • High stability - precision adjustment
  • Threadmilled ports - Leak tight joints
  • Elastomer seals - Tight shut off
  • Modular design - In line maintenance
show more
Images are representations only.
Features:
  • Heavy duty all 316 stainless steel - Rugged and corrosion resistant
  • High stability - precision adjustment
  • Threadmilled ports - Leak tight joints
  • Elastomer seals - Tight shut off
  • Modular design - In line maintenance

SC

Port Size

Maximum Pressure

Model

Relief

Drain

Output Pressure

  • view details
  • view details

O-Ring Material

Filter

Gauge

Vent

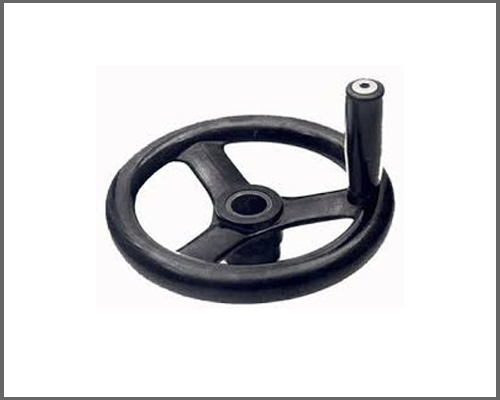

Hand Wheel

Specifications

Brand

Adjustment

  • M8 Socket Set Screw

Bonnet Material

  • 316L Stainless Steel - Bonnet & Bowl

Bowl

  • 25 ml (1.52"³) - Bowl Retention Capacity (Manual Drain)

Diaphragm Material

  • Silicone

Differential Pressure

  • psi: 2.176 (kPa: 15, bar: 0.15) at psi: 29 (kPa: 200, bar: 2) secondary Pressure (Relieving Typical Only)

Element

  • Sintered 316 Stainless Steel

Enclosure, Body Material

  • 316L Stainless Steel

Filter

  • 5 to 50 microns

Flow Capacity

  • 0.7 Cv - 1/4"
  • 0.75 Cv - 3/8" & 1/2"
  • 25.9 SFCM (44 m³/hour) - 1/4"
  • 27.8 SFCM (47.2 m³/hour) - 3/8” & 1/2”

Flow Rate

  • 1.5 cm³/second - Typical Bleed Flow at psi: 29 (kPa: 200, bar: 2) secondary Pressure

Materials of Construction

  • 18/10 Stainless Steel - Fasteners

Media

  • Air
  • Inert Gas
  • Natural Gas
  • Sweet & Sour Gas

Mounting

  • M5 x 13 Female Deep Fitted Into 2nd Gauge Port - for 1/4" Unit
  • M5 x 8 Female Deep - for 3/8” & 1/2” Unit
  • Stud Mount

Mounting Position

  • Any Orientation

NPT Connection

  • 1/2" NPT Female
  • 1/4" NPT Female
  • 1/8" NPT Female
  • 3/8" NPT Female

O-Ring Material

  • Flurosilicone
  • Viton (Standard)

Pressure Range

  • bar: 0.2 to 10
  • kPa: 20 to 1,000
  • psi: 3 to 145

Relief

  • Non-Relieving
  • Self-Relieving

Seat/Seal Material

  • Seal: Viton as Standard

Spring Material

  • 302S26 Stainless Steel to BS 2056
  • 316 Stainless Steel - Regulating Spring
  • Inconel®

Supply Pressure - Maximum

  • psi: 290 (kPa: 2,000, bar: 20) - Maximum

Temperature Range

  • -60° to 180° C (-76° to 356° F) - Working Temperature

Vent

  • 1/8" NPT
