Description
Features
- Adjustable Set Point Range:
- Increasing Vacuum: 3.5 to 28.5 Inches Hg, 89 to 724 mm Hg
- Decreasing Vacuum: 1 to 26 Inches Hg, 25 to 660 mm Hg
- Deadband: Approximately 2.5 Inches Hg, 64 mm Hg
- System Pressure (Maximum): 150 psig, 1034 kPa, 10.3 bar
- Proof Pressure: 250 psig, 1723 kPa, 17.2 bar
- Wetted Materials:
- Pressure Port: 1/4" Female NPT Aluminum
- Diaphragm: Polyimide
- O-Ring: Buna N
- Relay: SPDT or DPDT
- UL, CRN, CE Mark, General Purpose
Inventory
Displaying prices & availability for United States in USD. Change location or currency
5 models matching criteria

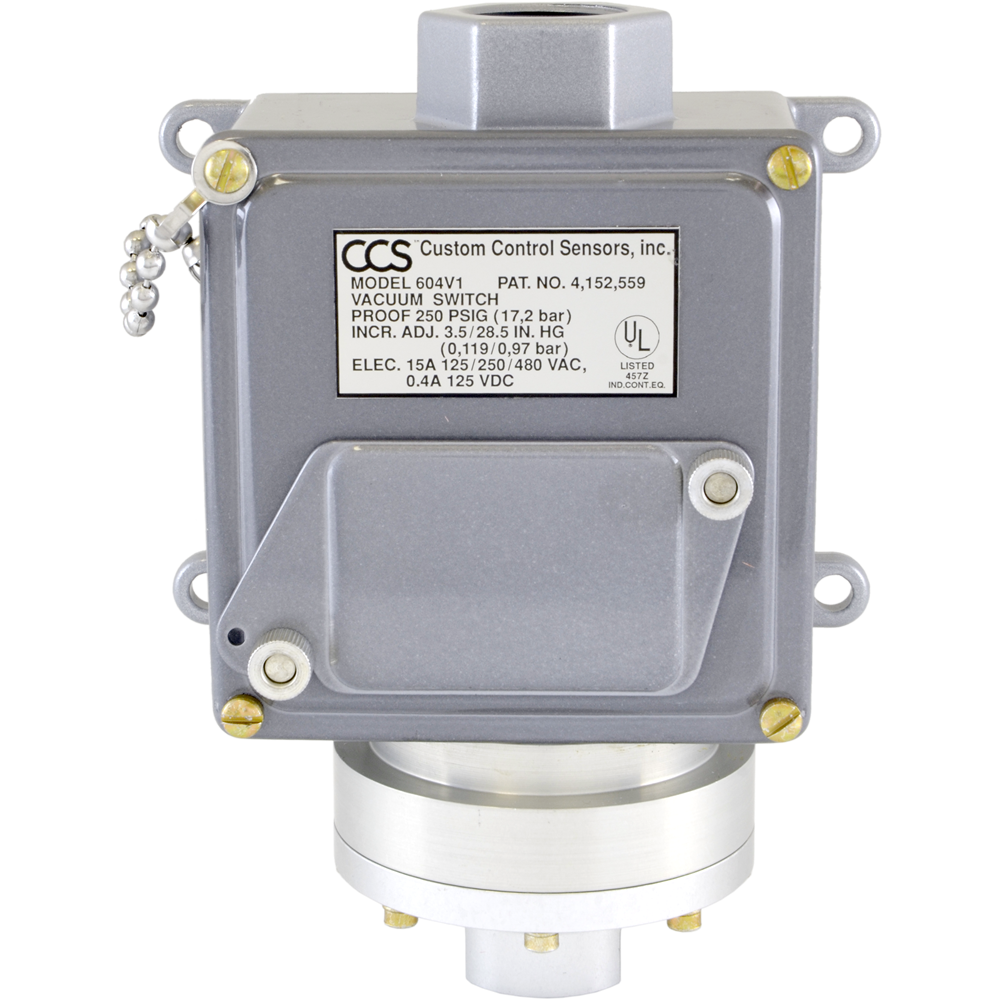

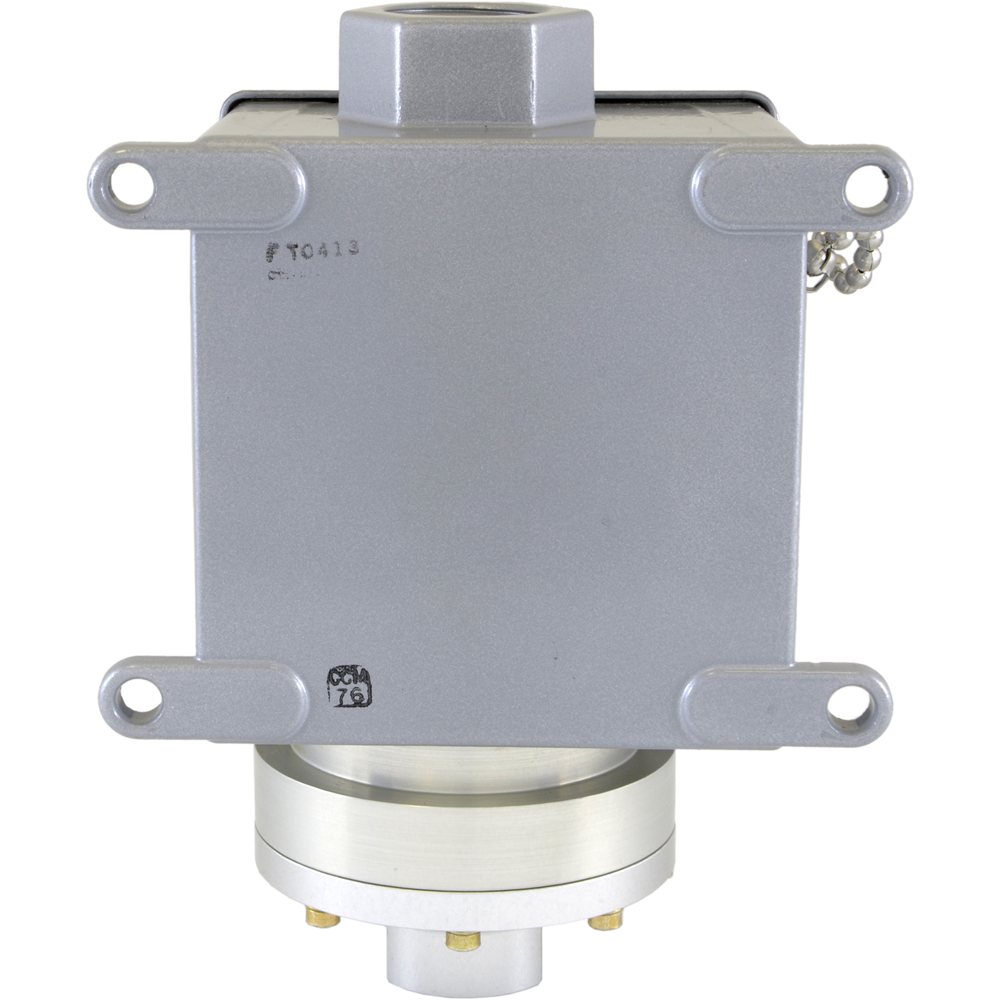

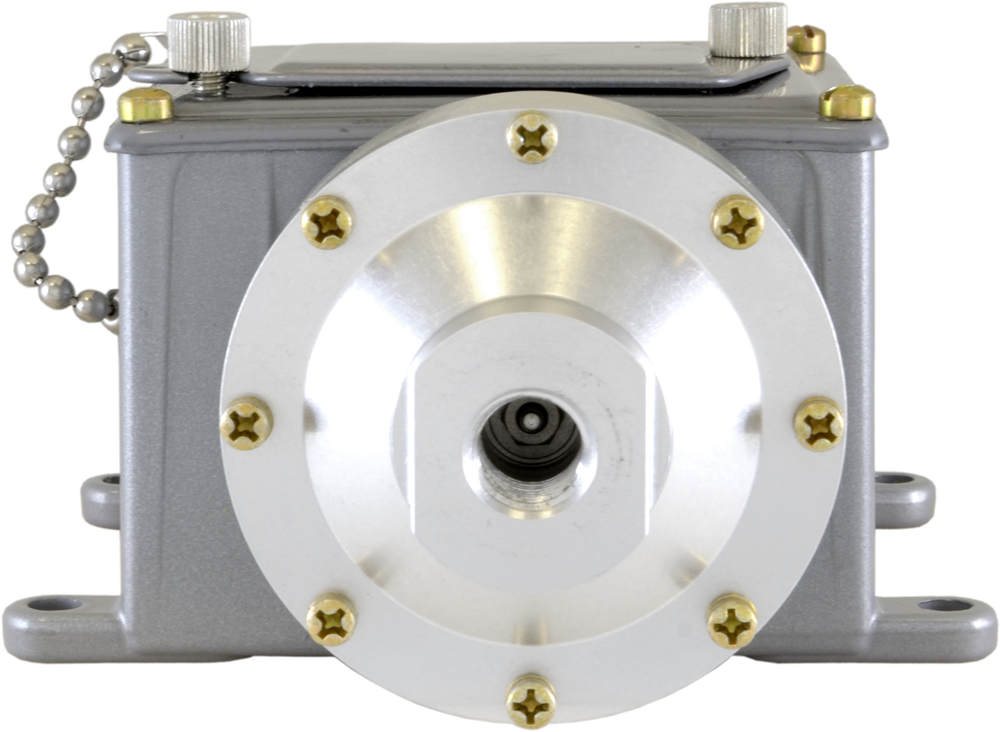

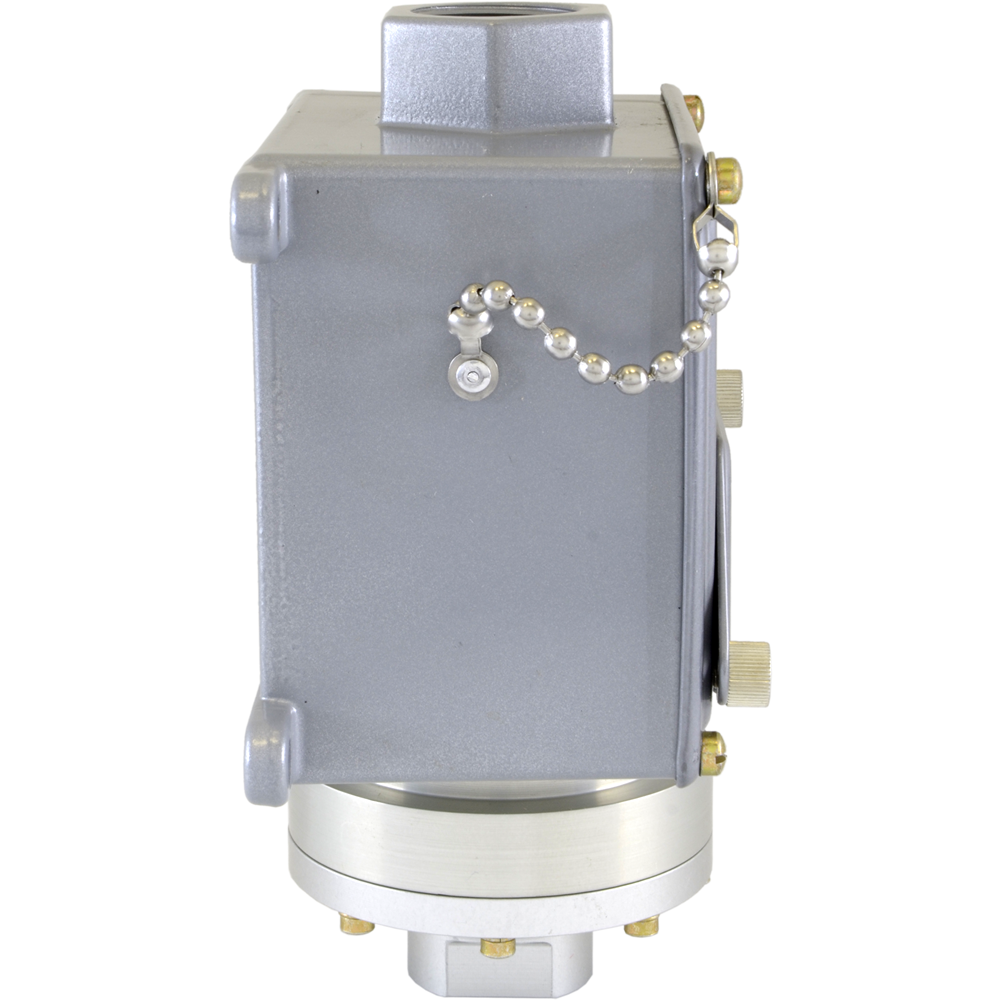

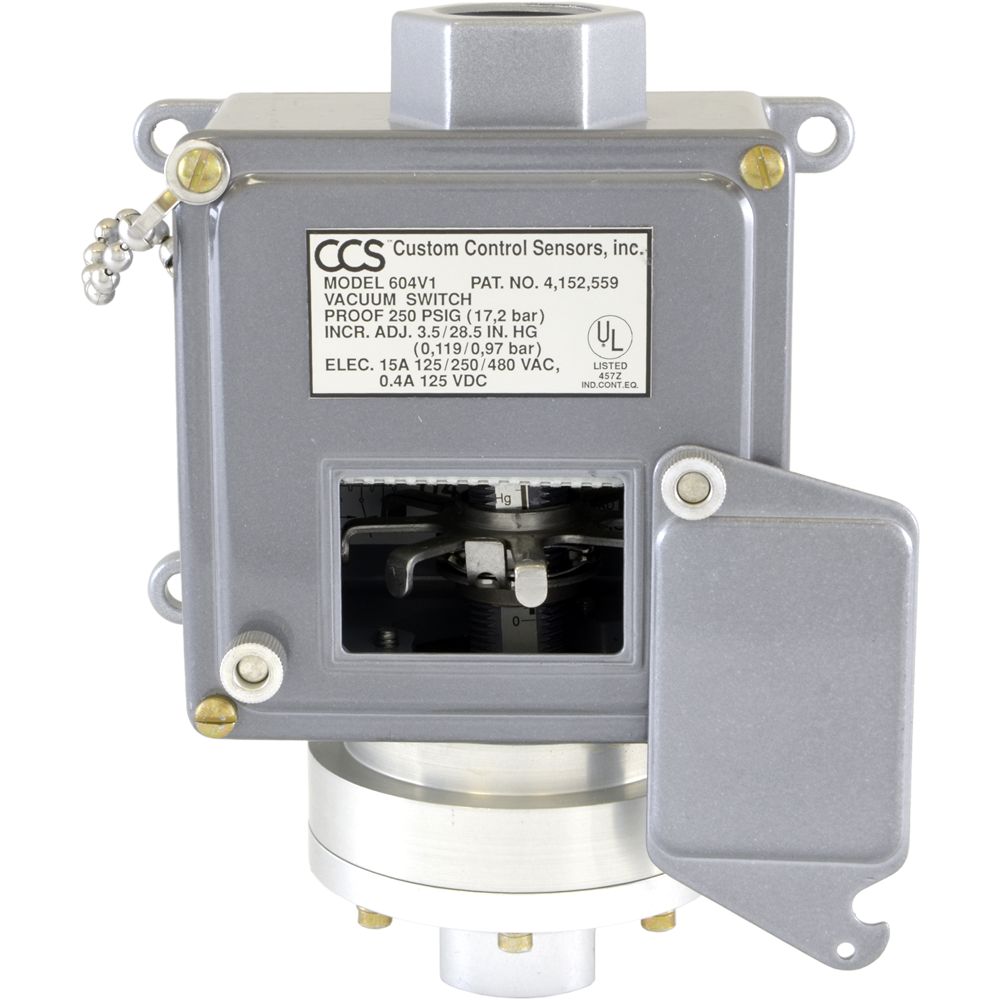

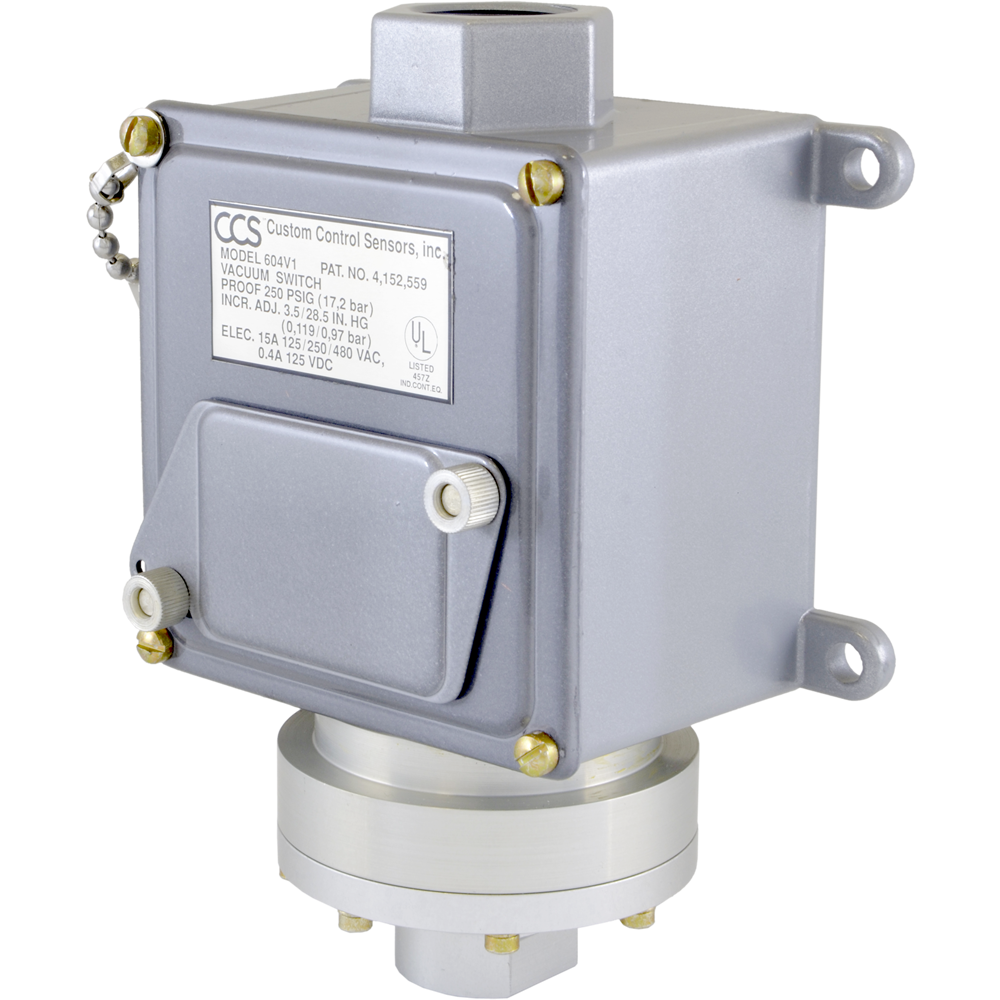

604V1
CCS DUAL-SNAP Vacuum Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N
View More
- Adjustable Set Point Range - Vacuum:
- Increasing: 3.5 to 28.5 inches Hg, 89 to 724 mm Hg
- Decreasing: 1 to 26 inches Hg, 25 to 660 mm Hg
- Deadband: Approximately 2.5 Inches Hg, 64 mm Hg
- System Pressure (Maximum): 150 psig, 1034.21 kPa, 10.3 bar
- Proof Pressure: 250 psig, 1723.68 kPa, 17.2 bar
- Wetted Materials:
- Pressure Port: 1/4" FNPT Aluminum
- Diaphragm: Polyimide
- O-Ring: Buna N
- Relay: SPDT
- UL, CRN, CE Mark, General Purpose
9 In Stock
$707.82USD
$19.01 Shipping
604VM1
CCS DUAL-SNAP Vacuum Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N, DPDT
View More
- Adjustable Set Point Range - Gauge:
- Increasing: 1.72 to 14.0 psi, 11.9 to 96.5 kPa, 0.12 to 0.97 bar
- Decreasing: 0.49 to 12.8 psi, 3.38 to 88.3 kPa, 0.03 to 0.88 bar
- Adjustable Set Point Range - Vacuum:
- Increasing: 3.5 to 28.5 inches Hg, 89 to 724 mm Hg
- Decreasing: 1 to 26 inches Hg, 25 to 660 mm Hg
- Deadband: Approximately 2.5 Inches Hg, 64 mm Hg
- System Pressure (Maximum): 150 psig, 1034.21 kPa, 10.3 bar
- Proof Pressure: 250 psig, 1723.68 kPa, 17.2 bar
- Wetted Materials:
- Pressure Port: 1/4" FNPT Aluminum
- Diaphragm: Polyimide
- O-Ring: Buna N
- Relay: DPDT
- UL, CRN, CE Mark, General Purpose
Contact For Inventory
$933.04USD
$19.01 Shipping
604VJ1
CCS DUAL-SNAP Vacuum Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N, CSA
View More
- Adjustable Set Point Range:
- Increasing Vacuum: 3.5 to 28.5 Inches Hg, 89 to 724 mm Hg
- Decreasing Vacuum: 1 to 26 Inches Hg, 25 to 660 mm Hg
- Deadband: Approximately 2.5 Inches Hg, 64 mm Hg
- System Pressure (Maximum): 150 psig, 1034.21 kPa, 10.3 bar
- Proof Pressure: 250 psig, 1723.68 kPa, 17.2 bar
- Wetted Materials:
- Pressure Port: 1/4" FNPT Aluminum
- Diaphragm: Polyimide
- O-Ring: Buna N
- Relay: SPDT
- UL, CSA, CRN, CE Mark, General Purpose
Contact For Inventory
604VX1
CCS DUAL-SNAP Vacuum Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N, Double Break
View More
- Adjustable Set Point Range:
- Increasing Vacuum: 3.5 to 28.5 Inches Hg, 89 to 724 mm Hg
- Decreasing Vacuum: 1 to 26 Inches Hg, 25 to 660 mm Hg
- Deadband: Approximately 2.5 Inches Hg, 64 mm Hg
- System Pressure (Maximum): 150 psig, 1034.21 kPa, 10.3 bar
- Proof Pressure: 250 psig, 1723.68 kPa, 17.2 bar
- Wetted Materials:
- Pressure Port: 1/4" FNPT Aluminum
- Diaphragm: Polyimide
- O-Ring: Buna N
- Relay: SPDT
- Switching Element: Double Break
- UL, CSA, CRN, CE Mark, General Purpose
Contact For Inventory
604V1-7008
CCS DUAL-SNAP Vacuum Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N, Gold Contacts
View More
- Adjustable Set Point Range - Vacuum:
- Increasing: 3.5 to 28.5 inches Hg, 89 to 724 mm Hg
- Decreasing: 1 to 26 inches Hg, 25 to 660 mm Hg
- Deadband: Approximately 2.5 Inches Hg, 64 mm Hg
- System Pressure (Maximum): 150 psig, 1034.21 kPa, 10.3 bar
- Proof Pressure: 250 psig, 1723.68 kPa, 17.2 bar
- Wetted Materials:
- Pressure Port: 1/4" FNPT Aluminum
- Diaphragm: Polyimide
- O-Ring: Buna N
- Relay: SPDT
- Contacts: Gold
- UL, CRN, CE Mark, General Purpose
Contact For Inventory
Configure
Specifications
Specifications
Brand
Adjustment Type
- Field Adjustable
Approvals & Certifications
- CE
- CRN
- CRN - Alberta
- CRN - British Columbia
- CRN - Manitoba
- CRN - N.W. Territories
- CRN - Saskatchewan
- CSA
- cUL
- EMC
- LVD
- PED
- RoHS
- UL
Deadband, Approximate
- Inches Hg: 2.5
- mmHg: 64
Diaphragm Material
- Polyimide
- Stainless Steel
Electrical Connectors
- Terminal Strip - Internal
Electrical Contacts
- Gold
- Silver
Electrical Rating
- 1 A at 125 Vac, 50/60 Hz
- 15 A at 125/250/480 Vac Resistive, 0.4 A at 125 DC, 0.2 A at 250 DC
- 5 A at 125/250 Vac Resistive, 5 A at 28 Vdc, 0.5 A at 125 Vdc
Enclosure, Body Material
- Aluminum
Environmental Protection
- IP65
- IP66
- NEMA 13
- NEMA 4, 13 / IP65, 66
- Non-Hazardous Area
NACE & NIST
- NACE
NPT Connection
- 1/4” NPT Female
Operating Temperature
- -40° to 86° C (-40° to 187° F)
O-Ring Material
- Buna-N
- Ethylene Propylene (EPR)
- Viton
Process Connection Material
- Aluminum
Proof Pressure
- bar: 17.24
- kPa: 1,724
- psig: 250
Service
- Sweet (Oil & Gas)
Set Point - Decreasing
- Inches Hg: -1 to 26
- mmHg: -25 to 660
Set Point - Increasing
- Inches Hg: -3.5 to 28.5
- mmHg: -89 to 724
Standard Features
- Internal Case Ground
- Weatherproof
Switch Type
- DPDT
- SPDT
System Pressure
- bar: 10.3
- kPa: 1,034
- psig: 150
