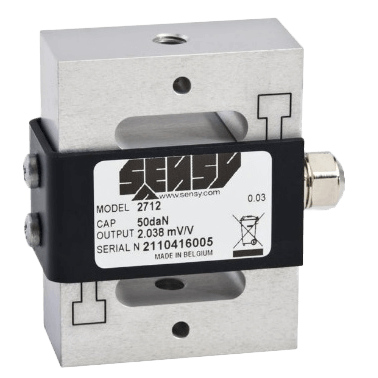

2712 Tension & Compression Load Cell

Brand: Sensy S.A.
Request a Quote
Favorite
Universal load cell combining high accuracy, sturdiness and easiness to install.
Features
  • Wide range of capacities: 100 N (10 kg) to 1000 N (100 kg)
  • Overload protection in tension and compression (not for 2712-5 kN and 2712-10 kN)
  • Easy to install, compact design
  • Protection IP 54 / IP 65
  • Material: anodized Aluminum alloy
  • Available options (non exhaustive list):
    • High service temperature (150° C)
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • Cable output by connector
  • Also available as standard reference load cells following ISO 376
show more
Images are representations only.
Universal load cell combining high accuracy, sturdiness and easiness to install.
Features
  • Wide range of capacities: 100 N (10 kg) to 1000 N (100 kg)
  • Overload protection in tension and compression (not for 2712-5 kN and 2712-10 kN)
  • Easy to install, compact design
  • Protection IP 54 / IP 65
  • Material: anodized Aluminum alloy
  • Available options (non exhaustive list):
    • High service temperature (150° C)
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • Cable output by connector
  • Also available as standard reference load cells following ISO 376
Close

Specifications

Brand

Accuracy

  • 0.02% of Full Scale
  • 0.03% of Full Scale
  • 0.1% of Full Scale

Applications

  • Conveyors
  • Hoppers
  • Measurement
  • Reactors

Approvals & Certifications

  • ATEX Intrinsic Safety Ex II 1 GD Ex Ia IIC T6 or T4 Ga Ex Ia IIIC T80° C Da
  • CE

Cable Length

  • 10 feet (3 meters)

Electrical Connectors

  • Cable

Enclosure, Body Material

  • Aluminum - Anodized

Environmental Protection

  • IP54
  • IP65

Excitation Voltage

  • 10 Vdc
  • 3-12 Vdc - Nominal Range

Insulation Resistance

  • > 5,000 MegaOhms

Linearity

  • Error: <± 0.1% of Full Scale (Class 0.1) to <± 0.015% of Full Scale (Class 0.02)

Load Limit

  • 120% of Full Scale

Operating Temperature

  • 150° C (302° F)

Repeatability

  • Error: <± 0.03% of Full Scale (Class 0.1) to <± 0.01% of Full Scale (Class 0.02)

Resistance

  • Input/Output: 352 ± 2 ohms

Sensitivity

  • Tolerance: <± 0.3% (Class 0.1) to <± 0.05% (Class 0.02)

Service Temperature

  • -30 to 70° C (-22° to 158° F)

Static Lateral Force

  • 50% of Full Scale

Storage Temperature

  • -50 to 85° C (-58° to 185° F)

Temperature Coefficient

  • <± 0.008% to <± 0.05% of Full Scale/10° C (18° F)
  • <± 0.013% to <± 0.035% of Full Scale/10° C (18° F)

Zero Balance

  • ± 0.02 mV/V
Close
