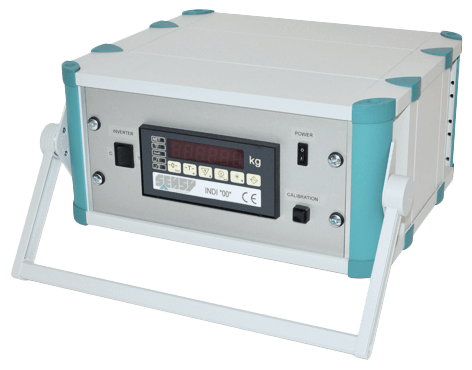

INDI-00 Display for Reference Force Transducer

Brand: Sensy S.A.
The INDI-00 is a high accuracy portable indicator designed to be used in combination with standard reference force transducers with accuracy class 0.5 and 00 following the norm ISO376.
Features
  • High accuracy: 0.01%
  • High resolution: 6 Digits
  • 6-Wires connection
  • Options:
    • Transportation case
    • Software acquisition and management
    • RS232 or RS485 output
    • Operation with rechargeable battery with charger
show more
The INDI-00 is a high accuracy portable indicator designed to be used in combination with standard reference force transducers with accuracy class 0.5 and 00 following the norm ISO376.
Features
  • High accuracy: 0.01%
  • High resolution: 6 Digits
  • 6-Wires connection
  • Options:
    • Transportation case
    • Software acquisition and management
    • RS232 or RS485 output
    • Operation with rechargeable battery with charger

Specifications

Brand

Accuracy

  • 0.01%

Applications

  • Force Measurement

Approvals & Certifications

  • CE
  • ISO 376

Communication

  • RS-232
  • RS-485

Display

  • 6-Digit Display

Environmental Protection

  • IP54

Input

  • 1 to 4 mV/V

Linearity

  • Linearity Error: ≤ 0.002% of Full Scale

Power Supply

  • 230 Vac

Resolution

  • 550,000 Div. - Internal

Sensor Excitation

  • 5 Vac

Service Temperature

  • -10° to 40° C (14° to 104° F)

Storage Temperature

  • -10° to 70° C (14° to 158° F)

Temperature Coefficient

  • < 0.002% of Full Scale/10° C (18° F)
