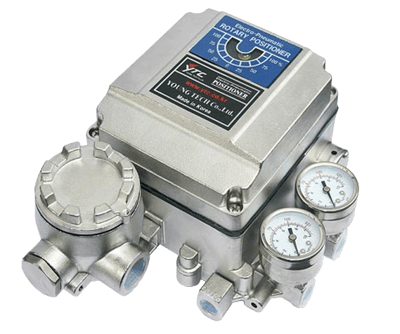

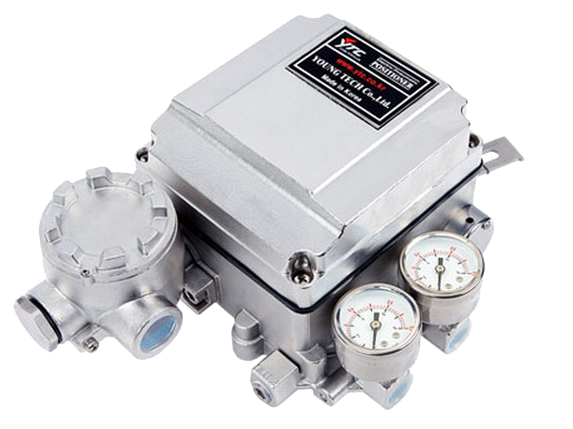

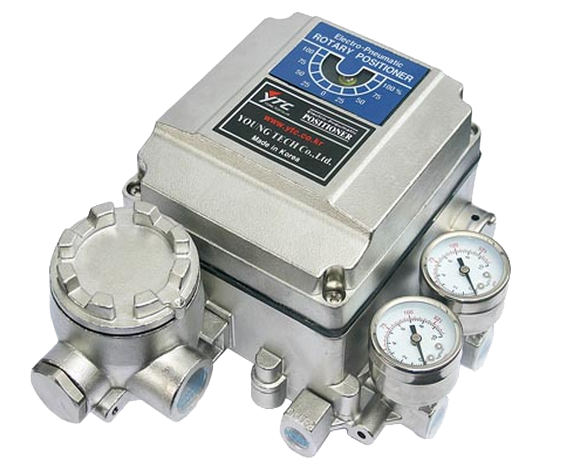

YT-1050 Electro-Pneumatic Positioner

Brand: Young Tech Co., Ltd
The YT-1050 is an Electro Pneumatic Positioner used for operation of pneumatic valve actuators by means of electrical controller or control system. It provies an Analog output signal of DC 4 to 20mA or split ranges.
Features
  • Simple zero and span adjustment
  • No resonance between 5-200Hz
  • Auto/Manual switch
  • RA vs DA action and 1/2 split range setting by simple adjustment.
show more
The YT-1050 is an Electro Pneumatic Positioner used for operation of pneumatic valve actuators by means of electrical controller or control system. It provies an Analog output signal of DC 4 to 20mA or split ranges.
Features
  • Simple zero and span adjustment
  • No resonance between 5-200Hz
  • Auto/Manual switch
  • RA vs DA action and 1/2 split range setting by simple adjustment.

Specifications

Ambient Temperature Range

  • -20° to 70° C (-4° to 158° F)

Approvals & Certifications

  • ATEX
  • KC

Conduit Connection

  • PF 1/2 (G 1/2")

Enclosure, Body Material

  • 316 Stainless Steel

Environmental Protection

  • IP66

Flow Capacity

  • 80 LPM

Hysteresis

  • ± 1% of Full Scale

Independent Linearity

  • ± 1% of Full Scale (Single-Acting)
  • ± 2% of Full Scale (Double-Acting)

Input Signal

  • 4-20 mA DC

Load Impedance

  • 250 ± 15 ohms

NPT Connection

  • 1/4" NPT Female

Operating Temperature

  • -20° to 70° C (-4° to 158° F)

Orifice Size

  • Phi 1
  • Phi 2

Repeatability

  • ± 0.5% of Full Scale

Supply Pressure

  • bar: 1.4 to 7
  • kPa: 140 to 700
  • psig: 20.3 to 101.5
