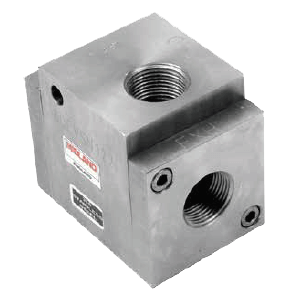

4500 Series Quick Exhaust Valve

Brand: Midland-ACS
316L Stainless Steel Quick Exhaust Valves.
Features
  • Specifically Designed for Severe Environments
  • Ambient Temperature Range -20º to 70º C (-4° to 158° F)
  • Low Temperature Option Available
show more
Images are representations only.
316L Stainless Steel Quick Exhaust Valves.
Features
  • Specifically Designed for Severe Environments
  • Ambient Temperature Range -20º to 70º C (-4° to 158° F)
  • Low Temperature Option Available
4QEVSE122
MIDLANDS Series 4500 Quick Exhaust Valve, 3.8 Outlet Cv, 5.5 Exhaust Cv, 1/2" NPT, Low Temperature
Out of Stock
7QEBSE122
MIDLAND-ACS Series 4500 Quick Exhaust Valve, 3.8 Outlet Cv, 5.5 Exhaust Cv, 1/2" NPT, Low Temperature
Out of Stock
9QEBSE122
MIDLAND-ACS Series 4500 Quick Exhaust Valve, 3.8 Outlet Cv, 5.5 Exhaust Cv, 1/2" NPT, Low Temperature
Out of Stock

4500 Series Exhaust Valve

Process Connection

Valve Type

Temperature Options

Specifications

Brand

Ambient Temperature Range

  • -20° to 70° C (-4° to 158° F)

Approvals & Certifications

  • ATEX
  • CE
  • EAC

Enclosure, Body Material

  • 316L Stainless Steel

Flow Capacity

  • 1/2” - 194 scfm (329.4 m³/hour) 5.5 Cv Outlet to Exhaust
  • 1/2”, 3/8" - 135 scfm (228.6 m³/hour) - 3.8 Cv Supply to Outlet, 3.8 Cv Outlet to Exhaust
  • 1/4” - 46 scfm (77.4 m³/hour) 1.3 Cv Supply to Outlet
  • 1/4” - 98 scfm (166.8 m³/hour) 2.8 Cv Outlet to Exhaust
  • 1” - 274 scfm (462 m³/hour) 7.8 Cv Supply to Outlet
  • 1” - 388 scfm (660 m³/hour) 11 Cv Outlet to Exhaust
  • 1-1/2” - 777 scfm (1320 m³/hour) 22 Cv Supply to Outlet
  • 2” - 1589 scfm (2700 m³/hour) 45 Cv Outlet to Exhaust
  • 2”, 1-1/2" - 1130 scfm (1920 m³/hour) 32 Cv Supply to Outlet, 32 Cv Outlet to Exhaust
  • 3/4” - 160 scfm (271.2 m³/hour) 4.5 Cv Supply to Outlet
  • 3/4” - 228 scfm (387.6 m³/hour) 6.5 Cv Outlet to Exhaust
  • 3/8” - 64 scfm (108.6 m³/hour) 1.8 Cv Supply to Outlet

Internal Part Material

  • 316L Stainless Steel

Media

  • Gases - Filtered Lubricated or Non-Lubricated
  • Inert Gas
  • Liquids - Low Pressure Hydraulic, Mineral Oil or Water
  • Sour Natural Gas
  • Sweet Natural Gas

NPT Connection

  • 1" NPT Female
  • 1/2" NPT Female
  • 1/4" NPT Female
  • 1-1/2" NPT Female
  • 2" NPT Female
  • 3/4" NPT Female
  • 3/8" NPT Female

Pressure Range

  • psi: 0 to 174 (kPa: 0 to 1,200, bar: 0 to 12)

Seat/Seal Material

  • EPDM on Low Temperature Option
  • Nitrile

Spring Material

  • 316 Stainless Steel

Temperature Range

  • -20° to 70° C (-4° to 158° F)
  • -50° to 90° C (-58° to 194° F) Low Temperature Version
