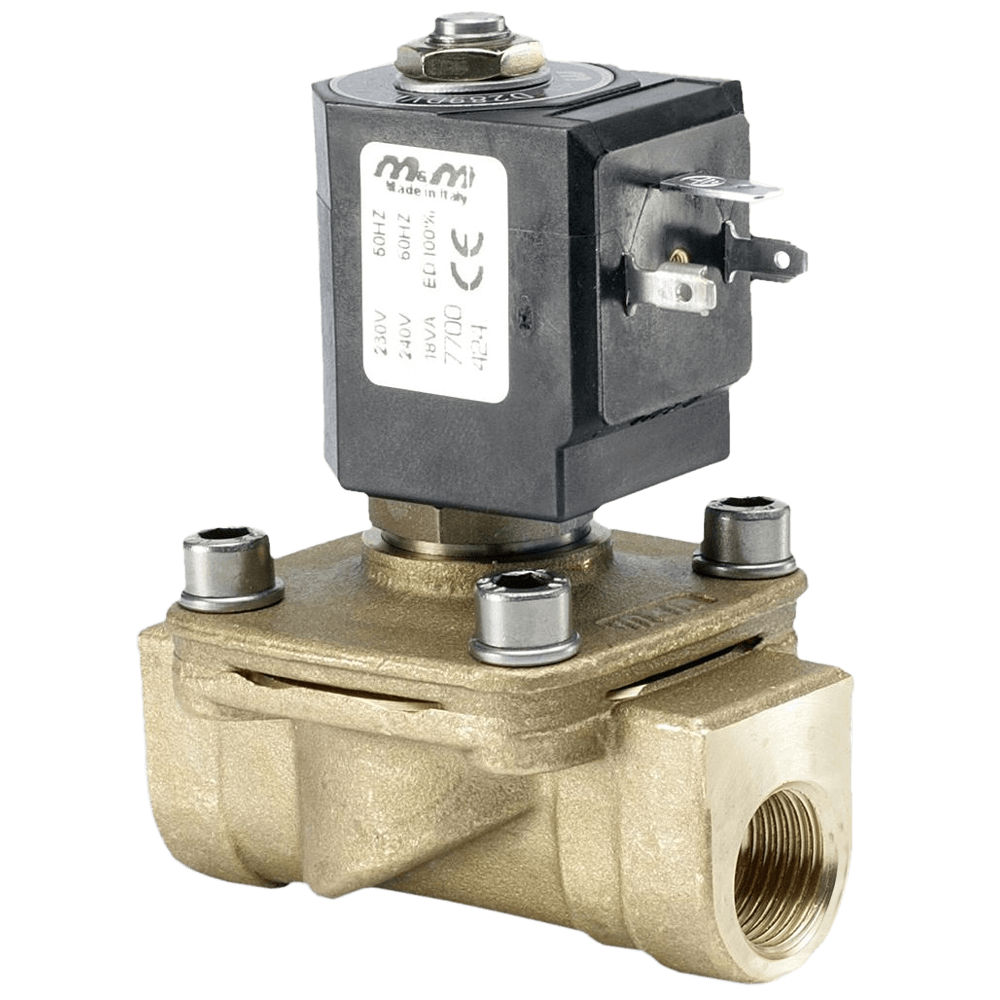

D887-D892 2/2-Way Pilot-Operated Solenoid Valve

Brand: M&M International - by Rotork
  • Media: Hot Water and Steam
  • Media Temperature: -10° to 150° C (14° to 302° F)
  • Ambient temperature: -10° to 70° C (14° to 158° F)
  • Body Material: Brass (CW617N EN 12165)
  • Orifice Material: Stainless Steel (1.4305 EN 10088/AISI 303)
  • Operator Material: Stainless Steel
  • Operator Seal Material: EPM PX 70/80
  • Diaphragm Material: PTFE
  • Main Seal Material: EPM PX 70/80
  • Protection Class: IP65 (with Connector and Gasket)
show more
  • Media: Hot Water and Steam
  • Media Temperature: -10° to 150° C (14° to 302° F)
  • Ambient temperature: -10° to 70° C (14° to 158° F)
  • Body Material: Brass (CW617N EN 12165)
  • Orifice Material: Stainless Steel (1.4305 EN 10088/AISI 303)
  • Operator Material: Stainless Steel
  • Operator Seal Material: EPM PX 70/80
  • Diaphragm Material: PTFE
  • Main Seal Material: EPM PX 70/80
  • Protection Class: IP65 (with Connector and Gasket)

Specifications

Approvals & Certifications

  • CE

BSP Connection

  • G 1" Female
  • G 1/2" Female
  • G 1/4" Female
  • G 3/4" Female
  • G 3/8" Female

Enclosure, Body Material

  • Brass (CW617N EN 12165)

Environmental Protection

  • IP65 (with Connector & Gasket)

Seat / Seal Material

  • Operator, Main Seal Material: EPM PX 70/80
  • Seal Material: PTFE
