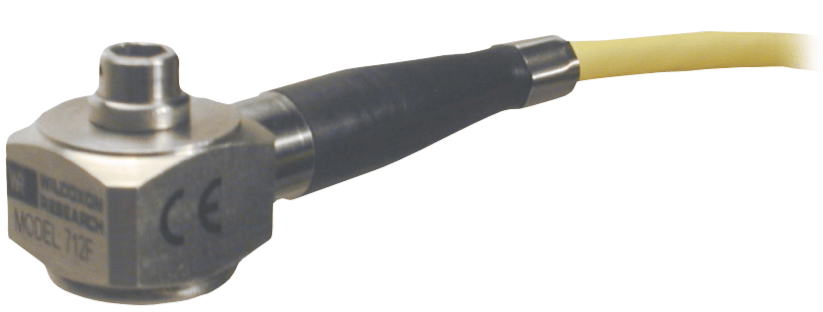

Model 712F High Frequency, Integral Cable Accelerometer

Brand: Wilcoxon Sensing Technologies
Side exit, high frequency, 16' J9T2A integral cable, case isolated, 100 mV/g, 8-32 mounting thread.
Features
  • Corrosion resistant
  • Hermetically sealed
  • Ground isolated
  • ESD protection
  • Reverse wiring protection
  • EMI/RFI protection
show more
Side exit, high frequency, 16' J9T2A integral cable, case isolated, 100 mV/g, 8-32 mounting thread.
Features
  • Corrosion resistant
  • Hermetically sealed
  • Ground isolated
  • ESD protection
  • Reverse wiring protection
  • EMI/RFI protection

Specifications

Approvals & Certifications

  • CE

Circuit Protection

  • ESD Protection
  • Reverse Wiring Protection

Electrical Connectors

  • Integral Cabling (J9T2A, 16 feet, Blunt Cut)

Enclosure, Body Material

  • 316L Stainless Steel

Environmental Protection

  • Corrosion-Proof

Frequency

  • Frequency Response (± 10 %): 6 to 20,000 Hz
  • Frequency Response (± 3 dB): 3 to 25,000 Hz
  • Frequency Response (± 5 %): 9 to 15,000 Hz
  • Resonance Frequency, Mounted: > 45 kHz

Mounting

  • 8-32 Captive Screw with 0.047” Diameter Safety Wire Hole

Noise

  • Electrical Noise, Equivalent G, Nominal (Broadband: 2.5 Hz to 25 kHz): 1,000 µg
  • Electrical Noise, Equivalent G, Nominal (Spectral: 1,000 Hz): 8.0 µg/√Hz
  • Electrical Noise, Equivalent G, Nominal (Spectral: 10 Hz): 25 µg/√Hz
  • Electrical Noise, Equivalent G, Nominal (Spectral: 100 Hz): 10 µg/√Hz

Non-Linearity

  • Amplitude Non-Linearity: 1 %

Output Impedence

  • Maximum

Power Requirement

  • 18-30 Vdc
  • Current Regulating Diode: 2-10 mA

Range

  • Acceleration Range: 60 G Peak

RFI/EMI Protection

  • Yes

Seal Type

  • Hermetic

Sensitivity

  • Base Strain Sensitivity, Max.
  • Sensitivity, ± 10 %, 25° C (77° F): 100 mV/g
  • Transverse Sensitivity, Max.

Shock

  • Shock Limit, Max.

Temperature Range

  • -50° to 120° C (-58° to 248° F)

Vibration

  • Vibration Limit: ± 1,000 G

Voltage

  • Bias Output Voltage, Nominal: 12 Vdc
