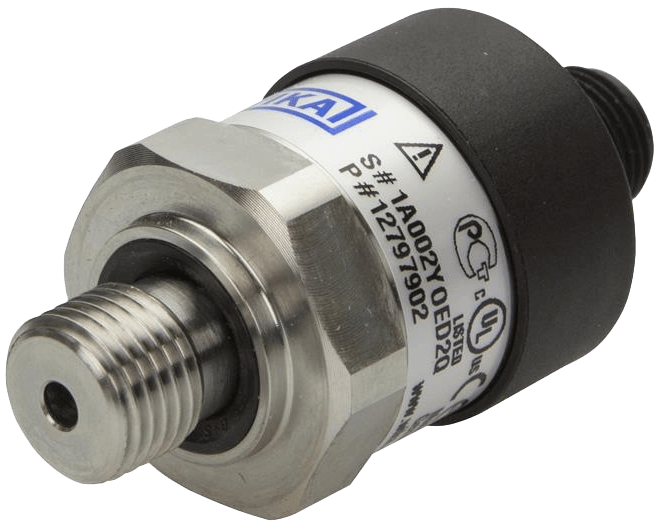

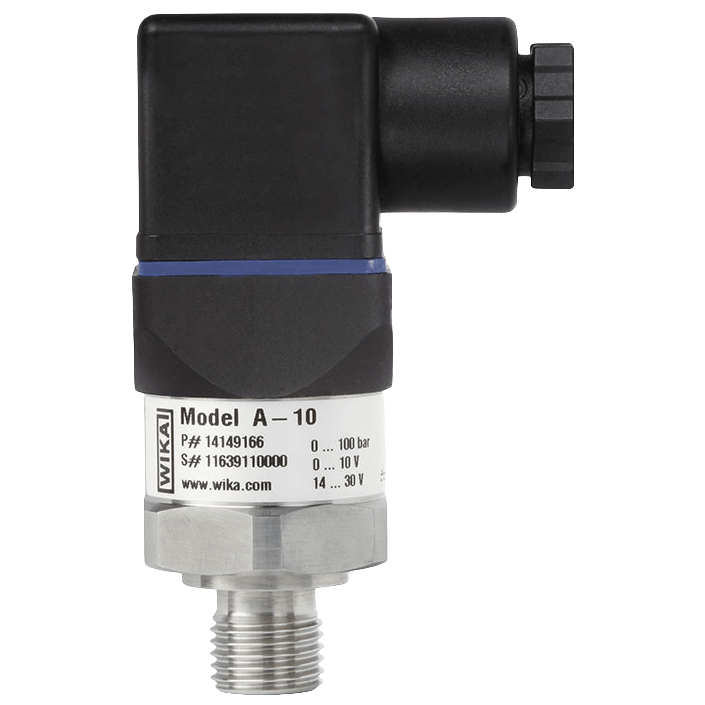

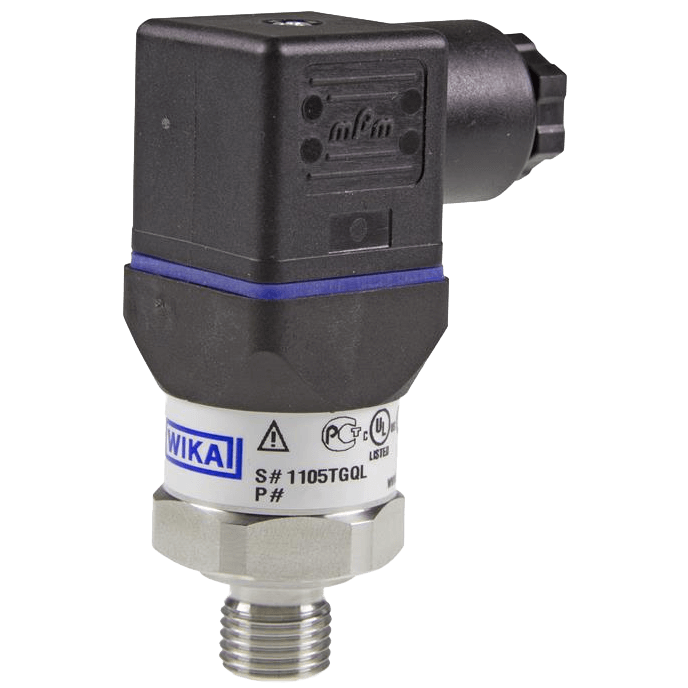

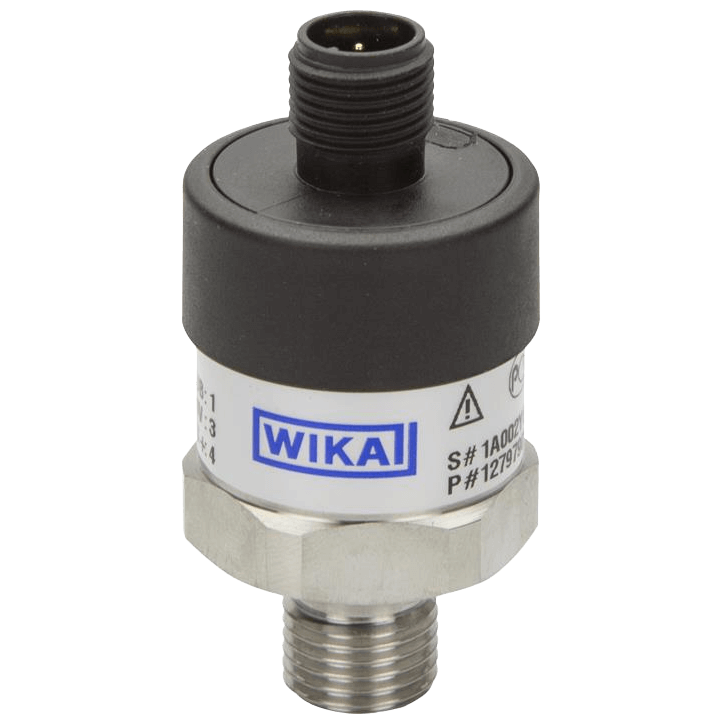

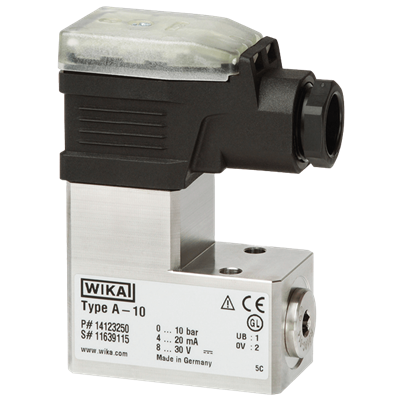

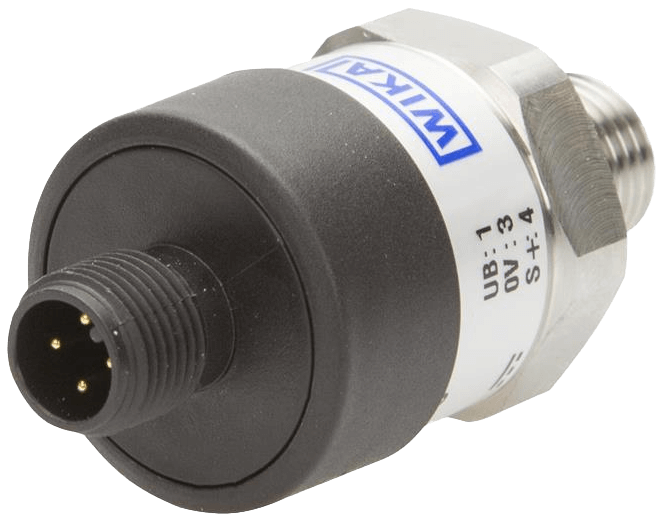

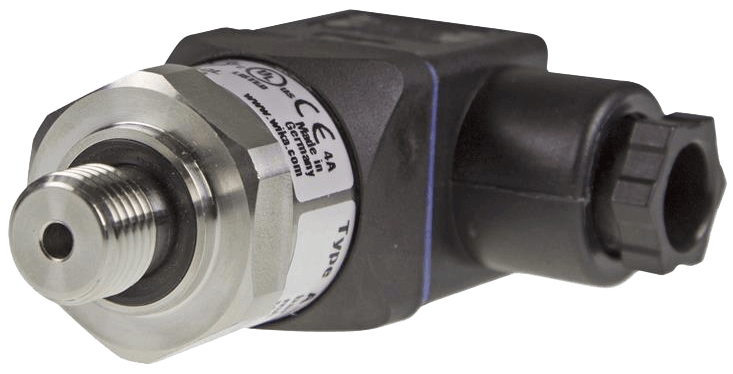

Model A-10 Pressure Transmitter

Brand: WIKA Instruments Ltd.
The model A-10 pressure transmitter for general industrial applications not only has a compact design, but it also offers excellent quality at an extremely competitive price. The user can choose between a non-linearity of 0.25% or 0.5%. A free test certificate provides information on the measuring points recorded during the manufacturing process. The model A-10 is set up for worldwide use through the international cULus and GOST-R certifications.
Features
  • Measuring ranges from 0 ... 0.05 to 0 ... 1,000 bar
  • Non-linearity 0.25 % or 0.5 %
  • Output 4 ... 20 mA, DC 0 ... 10 V, DC 0 ... 5 V and others
  • Electrical connection: Angular connector form A and C, circular connector M12 x 1, cable outlet 2 m
  • Process connection G ¼ A DIN 3852-E, ¼ NPT and others
show more
The model A-10 pressure transmitter for general industrial applications not only has a compact design, but it also offers excellent quality at an extremely competitive price. The user can choose between a non-linearity of 0.25% or 0.5%. A free test certificate provides information on the measuring points recorded during the manufacturing process. The model A-10 is set up for worldwide use through the international cULus and GOST-R certifications.
Features
  • Measuring ranges from 0 ... 0.05 to 0 ... 1,000 bar
  • Non-linearity 0.25 % or 0.5 %
  • Output 4 ... 20 mA, DC 0 ... 10 V, DC 0 ... 5 V and others
  • Electrical connection: Angular connector form A and C, circular connector M12 x 1, cable outlet 2 m
  • Process connection G ¼ A DIN 3852-E, ¼ NPT and others

Specifications

Accuracy

  • In Case of Occasional Faults Due to Electrostatic Discharges, A Temporary Measuring Error of up to ± 2.5% Can Occur. 1) Not Possible with Output Signal DC 0-5 V 2) Measuring Ranges ≤ 0.1 bar (or Equivalent) Only Possible with ≤ ± 0.5% of Span

Ambient Temperature Range

  • 0° to 80° C (32° to 176° F)
  • Current Signal: -40° to 100° C (-40° to 212° F)
  • Voltage Signal: -30° to 100° C (-22° to 212° F)

Applications

  • Compressors
  • Hydraulic Applications
  • Machine Building
  • Measurement & Control Technology
  • Pneumatics
  • Pumps
  • Ship Building

Approvals & Certifications

  • BelCT
  • CE
  • China RoHS Conformity
  • CRN
  • cULus
  • EAC
  • EMC
  • GL
  • GOST
  • MTSCHS
  • UkrSEPRO
  • UL

BSP Connection

  • G 1/2" A/B Male DIN 3852-E/EN 837
  • G 1/4" A/B Male DIN 3852-E/EN 837
  • G 1/4" Female EN 837
  • G 1/8" B Male EN 837
  • G 3/8" B Male EN 837
  • 1/2" BSPT Male
  • 1/4" BSPT Male
  • 3/8" BSPT Male

Cable Length

  • 6 Foot Cable with Free Ends (IP67)

Consumption

  • Current (2-Wire): Signal Current, Max. 25 mA
  • Voltage/Ratiometric

Electrical Connectors

  • Angular Connector M12 x 1, 4-Pin with 6' Cable
  • Cable Outlet
  • Circular Connector M12 x 1 (4-Pin)
  • Straight Connector M12 x 1, 4-Pin with 6' Cable
  • Valve Connector, Size A/C

Environmental Protection

  • IP65
  • IP67

Flange Type - Other

  • 31 mm - G 1/4 Female with Flange Connection

Materials of Construction

  • 316L Stainless Steel
  • HNBR (Hydrogenated Nitrile Butadiene Rubber)
  • Polyamide

Metric Connection

  • M14 x 1.5 Male
  • M20 x 1.5 Male

NPT Connection

  • 1/2" NPT Male
  • 1/4" NPT Female
  • 1/4" NPT Male
  • 1/8" NPT Male

Output

  • 0.5 - 4.5 Vdc (Ratiometric / 3-Wire)
  • 0-10 Vdc, 3-Wire
  • 0-5 Vdc, 3-Wire
  • 1-5 Vdc, 3-Wire
  • 4-20 mA, 2-Wire

Power Supply

  • 8-30 Vdc

Pressure Range

  • bar: 0 to 1,000
  • Inches WC: 0 to 400
  • kPa: 0 to 100,000
  • psi: 0 to 15,000

Pressure Type

  • Absolute
  • Gauge
  • Vacuum

PT/PF/PS (JIS) Connection

  • 1/2" PT Male
  • 1/4" PT Male
  • 3/8" PT Male

Repeatability

  • Non-Repeatability - Measuring Range > 0.1 bar: ≤ 0.1% of Span
  • Non-Repeatability - Measuring Range ≤ 0.1 bar: ≤ 0.2% of Span

Seat / Seal Material

  • Copper Seal Ring
  • FKM
  • NBR
  • Stainless Steel

Storage Temperature

  • -40° to 70° C (-40° to 158° F)

Temperature Range

  • 0° to 80° C (32° to 176° F)
  • Current Signal: -40° to 100° C (-40° to 212° F)
  • Voltage Signal: -30° to 100° C (-22° to 212° F)

UNF/UNC Connection

  • 7/16" 20 UNF Male BOSS

Wetted Materials

  • 316L Stainless Steel
  • PH Steel

Typical Applications

  • Machine building
  • Shipbuilding
  • Measurement and control technology
  • Hydraulics and pneumatics
  • Pumps and compressors
