Images are representations only.

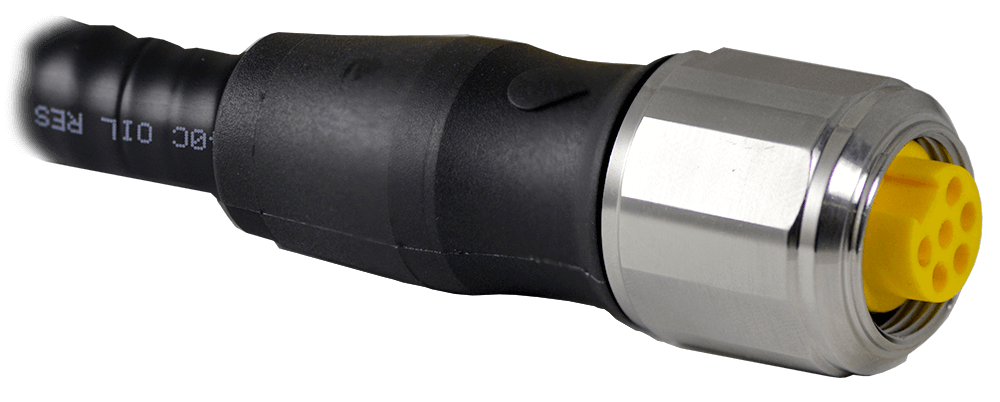

66A-1802 HART minifast Cable

Brand: Turck
Request Information
Favorite
Features
  • Process Cable:
    • Discrete Circuits
  • Connector:
    • "minifast" Series
    • Female Receptacle
    • 316 Stainless Steel Housing
    • 6 Contacts / 5 x #18 AWG Wires
    • (14.5 mm) = 1/2"-14 Male NPT Threads
  • Wires:
    • 105 C, 300 V
    • (4) x # 18 AWG Circuits
    • (1) x # 18 AWG Ground wire
    • (1) x # 20 AWG Drain
    • Interlocking Aluminum Armor
  • Protection Class:
    • IEC67, NEMA 1,3,4,6P
  • Approvals:
    • UL: ITC/PLTC-ER, Direct Burial, 105C
    • CSA: ACIC, 90C, 300V
show more
Features
  • Process Cable:
    • Discrete Circuits
  • Connector:
    • "minifast" Series
    • Female Receptacle
    • 316 Stainless Steel Housing
    • 6 Contacts / 5 x #18 AWG Wires
    • (14.5 mm) = 1/2"-14 Male NPT Threads
  • Wires:
    • 105 C, 300 V
    • (4) x # 18 AWG Circuits
    • (1) x # 18 AWG Ground wire
    • (1) x # 20 AWG Drain
    • Interlocking Aluminum Armor
  • Protection Class:
    • IEC67, NEMA 1,3,4,6P
  • Approvals:
    • UL: ITC/PLTC-ER, Direct Burial, 105C
    • CSA: ACIC, 90C, 300V
Close

Displaying prices & availability for United States in USD. Change location or currency

38 models matching criteria
P-RSVB RKVB 66A-1802-10M
TURCK minifast Cable, Double-ended, B-Connector,6-Pin, Male/Female,Armored, PVC/Black,SST, 10m, NCNR View More
  • Process Cable:

    • Analog and Discrete
    • Dual Connector Cable
  • Connectors:
    • "minifast" Series
    • Male x Female
    • 316 Stainless Steel Housing
    • 6 Contacts
  • Jacket:
    • Aluminum Armor, PVC Coated, Black
  • Conductors:
    • (2) #18 AWG Shielded Twisted Pair
    • (1) #18 AWG Ground Wire
    • (1) #20 AWG Drain Wire
  • Length:
    • 10 Meters
  • Temperature Rating:
    • -40°C to +90°C (-40°F to +194°F)
  • Protection Class:
    • IEC67, NEMA 4
  • Approvals:
    • CSA, CMX-Outdoor-CMG, HL
    • CSA, ACIC, 90 C, 300V
    • UL, ITC, PLTC
    • CSA, Class 1, Div 1 (w Intrinsically Safe Barrier)
    • CSA, Class 1, Div 2 (w Turck "mini lock")
3 In Stock
$370.00 USD $252.95 USD
$15.70 Shipping
P-RSVB RKVB 66A-1802-1M
TURCK minifast Cable, Double-ended, B-Connector,6-Pin, Male/Female,Armored, PVC/Black,SST, 1m, NCNR View More
  • Process Cable:
    • Analog and Discrete
    • Dual Connector Cable
  • Connectors:
    • "minifast" Series
    • Male x Female
    • 316 Stainless Steel Housing
    • 6 Contacts
  • Jacket:
    • Aluminum Armor, PVC Coated, Black
  • Conductors:
    • (2) #18 AWG Shielded Twisted Pair
    • (1) #18 AWG Ground Wire
    • (1) #20 AWG Drain Wire
  • Length:
    • 1 Meter
  • Temperature Rating:
    • -40°C to +90°C (-40°F to +194°F)
  • Protection Class:
    • IEC67, NEMA 4
  • Approvals:
    • CSA, CMX-Outdoor-CMG, HL
    • CSA, ACIC, 90 C, 300V
    • UL, ITC, PLTC
    • CSA, Class 1, Div 1 (w Intrinsically Safe Barrier)
    • CSA, Class 1, Div 2 (w Turck "mini lock")
1 In Stock
$203.46 USD
$15.70 Shipping
P-RKVB 66A-1802-15M
TURCK minifast Cable, Single-ended, B-Connector, 6-Pin, Female, Armored, PVC/Black, SST, 15m, NCNR View More
  • Process Cable:
    • Analog and Discrete
    • Single Connector Cable
  • Connectors:
    • "minifast" Series
    • Female x Free Leads
    • 316 Stainless Steel Housing
    • 6 Contacts
  • Jacket:
    • Aluminum Armor, PVC Coated, Black
  • Conductors:
    • (2) #18 AWG Shielded Twisted Pair
    • (1) #18 AWG Ground Wire
    • (1) #20 AWG Drain Wire
  • Length:
    • 15 Meters
  • Temperature Rating:
    • -40°C to +90°C (-40°F to +194°F)
  • Protection Class:
    • IEC67, NEMA 4
  • Approvals:
    • CSA, CMX-Outdoor-CMG, HL
    • CSA, ACIC, 90 C, 300V
    • UL, ITC, PLTC
    • CSA, Class 1, Div 1 (w Intrinsically Safe Barrier)
    • CSA, Class 1, Div 2 (w Turck "mini lock")
1 In Stock
$392.78 USD
$15.70 Shipping
P-RSVB 66A-1802-1M
TURCK minifast Cable, Single-ended, B-Connector, 6-Pin, Male, Armored, PVC/Black, SST, 1m, NCNR View More
  • Process Cable:
    • Analog and Discrete
    • Single Connector Cable
  • Connectors:
    • "minifast" Series
    • Male x Free Leads
    • 316 Stainless Steel Housing
    • 6 Contacts
  • Jacket:
    • Aluminum Armor, PVC Coated, Black
  • Conductors:
    • (2) #18 AWG Shielded Twisted Pair
    • (1) #18 AWG Ground Wire
    • (1) #20 AWG Drain Wire
  • Length:
    • 1 Meter
  • Temperature Rating:
    • -40°C to +90°C (-40°F to +194°F)
  • Protection Class:
    • IEC67, NEMA 4
  • Approvals:
    • CSA, CMX-Outdoor-CMG, HL
    • CSA, ACIC, 90 C, 300V
    • UL, ITC, PLTC
    • CSA, Class 1, Div 1 (w Intrinsically Safe Barrier)
    • CSA, Class 1, Div 2 (w Turck "mini lock")
Out of Stock
$122.55 USD
$15.70 Shipping
P-RKVB 66A-1802-1M
TURCK minifast Cable, Single-ended, B-Connector, 6-Pin, Female, Armored, PVC/Black, SST, 1m, NCNR View More
  • Process Cable:
    • Analog and Discrete
    • Single Connector Cable
  • Connectors:
    • "minifast" Series
    • Female x Free Leads
    • 316 Stainless Steel Housing
    • 6 Contacts
  • Jacket:
    • Aluminum Armor, PVC Coated, Black
  • Conductors:
    • (2) #18 AWG Shielded Twisted Pair
    • (1) #18 AWG Ground Wire
    • (1) #20 AWG Drain Wire
  • Length:
    • 1 Meter
  • Temperature Rating:
    • -40°C to +90°C (-40°F to +194°F)
  • Protection Class:
    • IEC67, NEMA 4
  • Approvals:
    • CSA, CMX-Outdoor-CMG, HL
    • CSA, ACIC, 90 C, 300V
    • UL, ITC, PLTC
    • CSA, Class 1, Div 1 (w Intrinsically Safe Barrier)
    • CSA, Class 1, Div 2 (w Turck "mini lock")
4 - 5 weeks
$122.55 USD
$15.70 Shipping
P-RKVB 66A-1802-2M
TURCK minifast Cable, Single-ended, B-Connector, 6-Pin, Female, Armored, PVC/Black, SST, 2m, NCNR View More
  • Process Cable:
    • Analog and Discrete
    • Single Connector Cable
  • Connectors:
    • "minifast" Series
    • Female x Free Leads
    • 316 Stainless Steel Housing
    • 6 Pin
  • Jacket:
    • Aluminum Armor, PVC Coated, Black
  • Conductors:
    • (2) #18 AWG Shielded Twisted Pair
    • (1) #18 AWG Ground Wire
    • (1) #20 AWG Drain Wire
  • Length:
    • 2 Meters
  • Temperature Rating:
    • -40°C to +90°C (-40°F to +194°F)
  • Protection Class:
    • IEC67, NEMA 4
  • Approvals:
    • CSA, CMX-Outdoor-CMG, HL
    • CSA, ACIC, 90 C, 300V
    • UL, ITC, PLTC
    • CSA, Class 1, Div 1 (w Intrinsically Safe Barrier)
    • CSA, Class 1, Div 2 (w Turck "mini lock")
4 - 5 weeks
$122.55 USD
$15.70 Shipping
P-RKVB 66A-1802-3M
TURCK minifast Cable, Single-ended, B-Connector, 6-Pin, Female, Armored, PVC/Black, SST, 3m, NCNR View More
  • Process Cable:
    • Analog and Discrete
    • Single Connector Cable
  • Connectors:
    • "minifast" Series
    • Female x Free Leads
    • 316 Stainless Steel Housing
    • 6 Contacts
  • Jacket:
    • Aluminum Armor, PVC Coated, Black
  • Conductors:
    • (2) #18 AWG Shielded Twisted Pair
    • (1) #18 AWG Ground Wire
    • (1) #20 AWG Drain Wire
  • Length:
    • 3 Meters
  • Temperature Rating:
    • -40°C to +90°C (-40°F to +194°F)
  • Protection Class:
    • IEC67, NEMA 4
  • Approvals:
    • CSA, CMX-Outdoor-CMG, HL
    • CSA, ACIC, 90 C, 300V
    • UL, ITC, PLTC
    • CSA, Class 1, Div 1 (w Intrinsically Safe Barrier)
    • CSA, Class 1, Div 2 (w Turck "mini lock")
4 - 5 weeks
$164.18 USD
$15.70 Shipping
P-RSVB RKVB 66A-1802-2M
TURCK minifast Cable, Double-ended, B-Connector,6-Pin, Male/Female,Armored, PVC/Black,SST, 2m, NCNR View More
  • Process Cable:
    • Analog and Discrete
    • Dual Connector Cable
  • Connectors:
    • "minifast" Series
    • Male x Female
    • 316 Stainless Steel Housing
    • 6 Contacts
  • Jacket:
    • Aluminum Armor, PVC Coated, Black
  • Conductors:
    • (2) #18 AWG Shielded Twisted Pair
    • (1) #18 AWG Ground Wire
    • (1) #20 AWG Drain Wire
  • Length:
    • 2 Meters
  • Temperature Rating:
    • -40°C to +90°C (-40°F to +194°F)
  • Protection Class:
    • IEC67, NEMA 4
  • Approvals:
    • CSA, CMX-Outdoor-CMG, HL
    • CSA, ACIC, 90 C, 300V
    • UL, ITC, PLTC
    • CSA, Class 1, Div 1 (w Intrinsically Safe Barrier)
    • CSA, Class 1, Div 2 (w Turck "mini lock")
4 - 5 weeks
$203.46 USD
$15.70 Shipping
P-RKVB 66A-1802-5M
TURCK minifast Cable, Single-ended, B-Connector, 6-Pin, Female, Armored, PVC/Black, SST, 5m, NCNR View More
  • Process Cable:
    • Analog and Discrete
    • Single Connector Cable
  • Connectors:
    • "minifast" Series
    • Female x Free Leads
    • 316 Stainless Steel Housing
    • 6 Contacts
  • Jacket:
    • Aluminum Armor, PVC Coated, Black
  • Conductors:
    • (2) #18 AWG Shielded Twisted Pair
    • (1) #18 AWG Ground Wire
    • (1) #20 AWG Drain Wire
  • Length:
    • 5 Meters
  • Temperature Rating:
    • -40°C to +90°C (-40°F to +194°F)
  • Protection Class:
    • IEC67, NEMA 4
  • Approvals:
    • CSA, CMX-Outdoor-CMG, HL
    • CSA, ACIC, 90 C, 300V
    • UL, ITC, PLTC
    • CSA, Class 1, Div 1 (w Intrinsically Safe Barrier)
    • CSA, Class 1, Div 2 (w Turck "mini lock")
4 - 5 weeks
$205.82 USD
$15.70 Shipping
P-RSVB RKVB 66A-1802-4M
TURCK minifast Cable, Double-ended, B-Connector,6-Pin, Male/Female,Armored, PVC/Black,SST, 4m, NCNR View More
  • Process Cable:
    • Analog and Discrete
    • Dual Connector Cable
  • Connectors:
    • "minifast" Series
    • Male x Female
    • 316 Stainless Steel Housing
    • 6 Contacts
  • Jacket:
    • Aluminum Armor, PVC Coated, Black
  • Conductors:
    • (2) #18 AWG Shielded Twisted Pair
    • (1) #18 AWG Ground Wire
    • (1) #20 AWG Drain Wire
  • Length:
    • 4 Meters
  • Temperature Rating:
    • -40°C to +90°C (-40°F to +194°F)
  • Protection Class:
    • IEC67, NEMA 4
  • Approvals:
    • CSA, CMX-Outdoor-CMG, HL
    • CSA, ACIC, 90 C, 300V
    • UL, ITC, PLTC
    • CSA, Class 1, Div 1 (w Intrinsically Safe Barrier)
    • CSA, Class 1, Div 2 (w Turck "mini lock")
4 - 5 weeks
$245.10 USD
$15.70 Shipping
Show More Models (27)
Close
Close

Specifications

Brand

Approvals & Certifications

  • CSA
  • cUL
  • UL

Connection Material

  • Stainless Steel

Connection Pin-Out

  • 6-Pin

Connection Style

  • minifast

Connector Shape

  • Straight

Environmental Protection

  • IP10
  • IP54
  • IP66
  • NEMA 1, 3, 4, 6P / IP10, 54, 66
  • NEMA 3
  • NEMA 4
  • NEMA 6P

Operating Temperature

  • -40° to 105° C (-40° to 221° F)

Version / Leadwires

  • 5-Wire
  • 66: 5 x 18 AWG BU, BR, GN/YE, WH, BK
