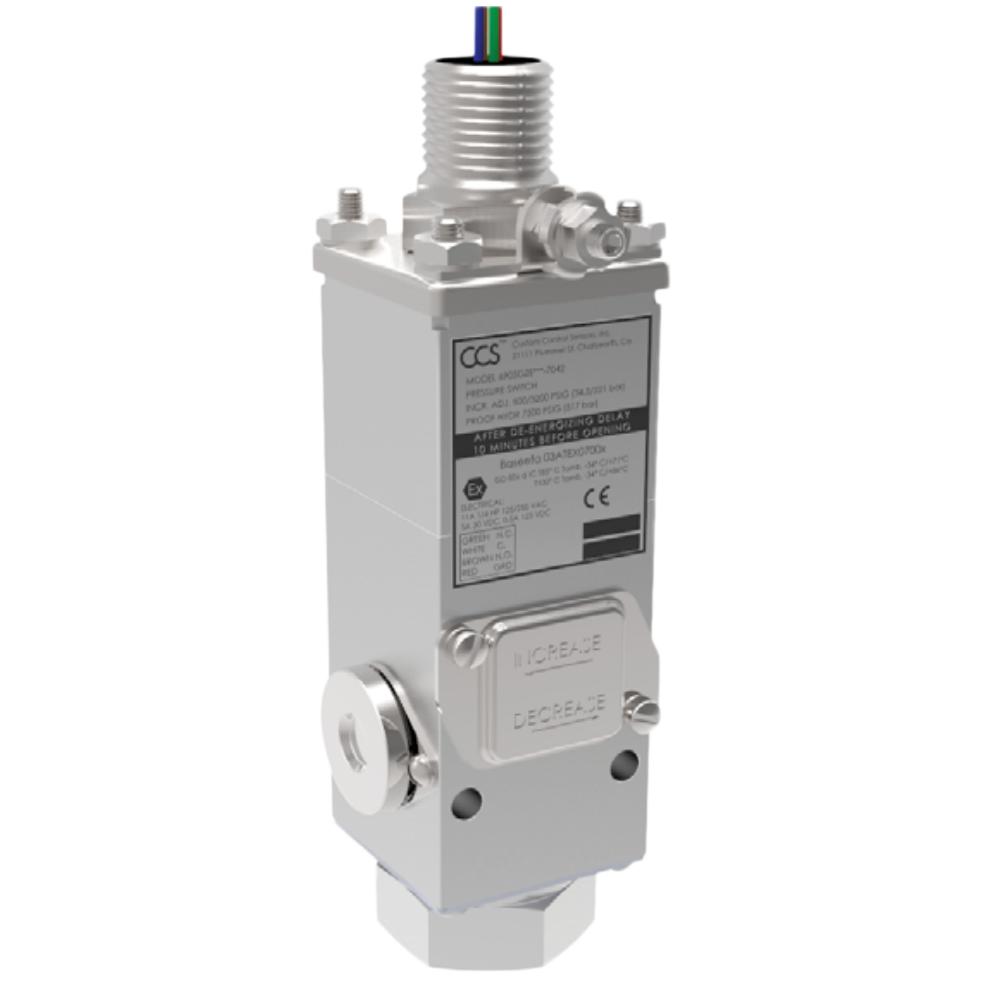

6905GZE-7042 Series Pressure Switch

Brand: Custom Control Sensors
Features
  • Adjustable Set Point Range:
    • Increasing: 3 to 3400 psig, 20.7 to 23,442.2 kPa, 0.21 to 234 ba
    • Decreasing: 1 to 3120 psig, 6.9 to 21,511.6 kPa, 0.07-215 b
    • Deadband: Approximately 2 to 280 psi, 13.79 to 1930.5 kPa, 0.14 to 19.3 b
    • System Pressure (Maximum): 500 to 5000 psig, 3447.39 to 34,473.8 kPa, 34.5 to 346 b
    • Proof Pressure: 750 to 7500 psig, 5171.07 to 51710.7 kPa, 51.7 to 517 b
    • Wetted Materials: 1/2"-14 NPT 316 Stainless Steel
  • Pressure Port: 1/2" Female NPT Stainless Steel
  • Diaphragm: Stainless Steel
  • O-Ring: Viton
  • Relay: SPDT or DPDT
  • ATEX
  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE
show more
Features
  • Adjustable Set Point Range:
    • Increasing: 3 to 3400 psig, 20.7 to 23,442.2 kPa, 0.21 to 234 ba
    • Decreasing: 1 to 3120 psig, 6.9 to 21,511.6 kPa, 0.07-215 b
    • Deadband: Approximately 2 to 280 psi, 13.79 to 1930.5 kPa, 0.14 to 19.3 b
    • System Pressure (Maximum): 500 to 5000 psig, 3447.39 to 34,473.8 kPa, 34.5 to 346 b
    • Proof Pressure: 750 to 7500 psig, 5171.07 to 51710.7 kPa, 51.7 to 517 b
    • Wetted Materials: 1/2"-14 NPT 316 Stainless Steel
  • Pressure Port: 1/2" Female NPT Stainless Steel
  • Diaphragm: Stainless Steel
  • O-Ring: Viton
  • Relay: SPDT or DPDT
  • ATEX
  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE
9 models matching criteria
6905GZE12-7042
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, SST Body View More
  • Adjustable Set Point Range:
    • Increasing: 3 to 20 psig, 20.7 to 137.8 kPa, 0.21 to 1.4 bar
    • Decreasing: 1 to 18 psig, 6.9 to 124.1 kPa, 0.07 to 1.2 bar
  • Deadband: Approximately 2 psi, 13.79 kPa, 0.14 bar
  • System Pressure (Maximum): 500 psig, 3447.39 kPa, 34.5 bar
  • Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT Stainless Steel
    • Diaphragm: Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT
  • ATEX
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
Contact For Inventory
6905GZE14-7042
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, SST Body View More
  • Adjustable Set Point Range:

    • Increasing: 9-75 psig, 62.1-517.1 kPa, 0.6-5.1 bar
    • Decreasing: 3-69 psig, 20.7-475.7 kPa, 0.21-4.8 bar
  • Deadband: Approximately 6 psi, 41.37 kPa, 0.41 bar
  • System Pressure (Maximum): 500 psig, 3447.39 kPa, 34.5 bar
  • Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
  • Wetted Materials:
    • Pressure Port: 1/2" - 14 FNPT Stainless Steel
    • Diaphragm: Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT
  • Electrical Connection: M20
  • ATEX
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
Contact For Inventory
6905GZE16-7042
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, SST Body View More
  • Adjustable Set Point Range:
    • Increasing: 18-150 psig, 124.2-1034.2 kPa, 1.2-10.3 bar
    • Decreasing: 6-138 psig, 41.4-951.4 kPa, 0.41-9.5 bar
  • Deadband: Approximately 12 psi, 82.74 kPa, 0.8 bar
  • System Pressure (Maximum): 1500 psig, 10342.14 kPa, 103 bar
  • Proof Pressure: 2000 psig, 13789.51 kPa, 138 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT Stainless Steel
    • Diaphragm: Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT
  • ATEX
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
Contact For Inventory
6905GZE16-7043
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton,SSTBody,GoldContacts View More
  • Adjustable Set Point Range:
    • Increasing: 18-150 psig, 124.2-1034.2 kPa, 1.2-10.3 bar
    • Decreasing: 6-138 psig, 41.4-951.4 kPa, 0.41-9.5 bar
  • Deadband: Approximately 12 psi, 82.74 kPa, 0.8 bar
  • System Pressure (Maximum): 1500 psig, 10342.14 kPa, 103 bar
  • Proof Pressure: 2000 psig, 13789.51 kPa, 138 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT Stainless Steel
    • Diaphragm: Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT
  • Contact: Gold
  • ATEX
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
Contact For Inventory
6905GZE18-7042
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, SST Body View More
  • Adjustable Set Point Range:
    • Increasing: 45-375 psig, 310.3-2585.5 kPa, 3.1-25.9 bar
    • Decreasing: 15-345 psig, 103.5-2378.6 kPa, 1.0-23.8 bar
  • Deadband: Approximately 30 psi, 206.84 kPa, 2.0 bar
  • System Pressure (Maximum): 1500 psig, 10342.14 kPa, 103 bar
  • Proof Pressure: 2000 psig, 13789.51 kPa, 138 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT Stainless Steel
    • Diaphragm: Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT
  • CE Mark, NACE, CRN
Contact For Inventory
6905GZE20-7042
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, SST Body View More
  • Adjustable Set Point Range:
    • Increasing: 300-1000 psig, 2068.5-6894.7 kPa, 20.7-69 bar
    • Decreasing: 225-925 psig, 1551.4-6377.6 kPa, 15.5-64 bar
  • Deadband: Approximately 75 psi, 517.11 kPa, 5.1 bar
  • System Pressure (Maximum): 2000 psig, 13789.51 kPa, 138 bar
  • Proof Pressure: 3000 psig, 20684.27 kPa, 207 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT Stainless Steel
    • Diaphragm: Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT
  • ATEX
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
Contact For Inventory
6905GZE22-7042
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, SST Body View More
  • Adjustable Set Point Range:

    • Increasing: 700-2500 psig, 4826.4-17236.8 kPa, 48.3-172 bar
    • Decreasing: 520-2320 psig, 3585.3-15995.8 kPa, 35.9-160 bar
  • Deadband: Approximately 180 psi, 1241.06 kPa, 12.4 bar
  • System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
  • Proof Pressure: 4500 psig, 31026.41 kPa, 310 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT Stainless Steel
    • Diaphragm: Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT
  • ATEX
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
Contact For Inventory
6905GZE24-7042
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, SST Body View More
  • Adjustable Set Point Range:
    • Increasing: 1800-3400 psi, 12410.6-23442.2 kPa, 124-234 bar
    • Decreasing: 1520-3120 psi, 10480.0-21511.6 kPa, 105-215 bar
  • Deadband: Approximately 280 psi, 1930.5 kPa, 19.3 bar
  • System Pressure (Maximum): 5000 psi, 34473.8 kPa, 346 bar
  • Proof Pressure: 7500 psi, 51710.7 kPa, 517 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT Stainless Steel
    • Diaphragm: Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT
  • ATEX
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
Contact For Inventory
6905GZEM12-7042
CCS DUAL-SNAP Pressure Switch, Haz. Area, DPDT,SST Port & Diaphragm, Viton, SST Body View More
  • Adjustable Set Point Range:

    • Increasing: 3 to 20 psig, 20.7 to 137.8 kPa, 0.21 to 1.4 bar
    • Decreasing: 1 to 18 psig, 6.9 to 124.1 kPa, 0.07 to 1.2 bar
  • Deadband: Approximately 2 psi, 13.79 kPa, 0.14 bar
  • System Pressure (Maximum): 500 psig, 3447.39 kPa, 34.5 bar
  • Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT Stainless Steel
    • Diaphragm: Stainless Steel
    • O-Ring: Viton
  • Relay: DPDT
  • ATEX
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
Contact For Inventory

Specifications

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • ATEX
  • CE
  • EMC
  • GOST-R
  • GOST-U
  • LVD
  • RoHS
  • RTN

Deadband, Approximate

  • bar: 0.14 to 12.4
  • kPa: 13.8 to 1,241
  • psi: 2 to 180

Diaphragm Material

  • Stainless Steel

Electrical - Free Leads

  • 18" (45 cm) Free Leads

Electrical Assembly

  • 316 Stainless Steel
  • Hermetic Seal

Electrical Certification

  • ATEX - Certificate No. Baseefa03-ATEX-0700X. Baseefa Certified for Potentially Explosive Atmospheres Electrical Assembly Series. in Compliance with EN 50014: 1997 + Amendment 1 & 2, EN 50018: 2000 + Amendment 1 & EN 50281-1-1: 1998 + Amendment 1 with Resp

Electrical Connectors

  • 1/2" NPT Male
  • M20 Male

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 11 A at 125/250 Vac

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • Hazardous Area

Maximum System Pressure

  • bar: 172.36+
  • bar: 35.48 to 69.96
  • bar: 69.96 to 172.36
  • bar: 7.9 to 35.48
  • kPa: 3,548 to 6,996
  • kPa: 6,996 to 17,236
  • kPa: 790 to 3,548
  • psig: 1,000 to 2,500
  • psig: 100 to 500
  • psig: 2,500+
  • psig: 500 to 1,000

NACE & NIST

  • NACE
  • NACE MR-0175:2003

NPT Connection

  • 1/2" NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Viton

Process Connection Material

  • 316 Stainless Steel

Proof Pressure

  • bar: 51.7 to 310
  • kPa: 5,171 to 31,026
  • psig: 750 to 4,500

Service

  • Sour (Oil & Gas)

Set Point - Decreasing

  • bar: 0 to 1.7
  • bar: 0.07 to 160
  • bar: 1.7 to 4.46
  • bar: 35.48 to 69.96
  • bar: 4.46 to 7.9
  • bar: 69.96+
  • bar: 7.9 to 35.48
  • kPa: 0 to 170
  • kPa: 170 to 446
  • kPa: 3,548 to 6,996
  • kPa: 446 to 790
  • kPa: 6,996+
  • kPa: 6.9 to 15,996
  • kPa: 790 to 3,548
  • psig: 0 to 10
  • psig: 1 to 2,320
  • psig: 1,000+
  • psig: 10 to 50
  • psig: 100 to 500
  • psig: 50 to 100
  • psig: 500 to 1,000

Set Point - Increasing

  • bar: 0 to 1.7
  • bar: 0.21 to 172
  • bar: 1.7 to 4.46
  • bar: 35.48 to 69.96
  • bar: 4.46 to 7.9
  • bar: 69.96+
  • bar: 7.9 to 35.48
  • kPa: 0 to 170
  • kPa: 170 to 446
  • kPa: 20.7 to 17,237
  • kPa: 3,548 to 6,996
  • kPa: 446 to 790
  • kPa: 6,996+
  • kPa: 790 to 3,548
  • psig: 0 to 10
  • psig: 1,000+
  • psig: 10 to 50
  • psig: 100 to 500
  • psig: 3 to 2,500
  • psig: 50 to 100
  • psig: 500 to 1,000

System Pressure

  • bar: 34.5 to 207
  • kPa: 3,447 to 20,684
  • psig: 500 to 3,000
