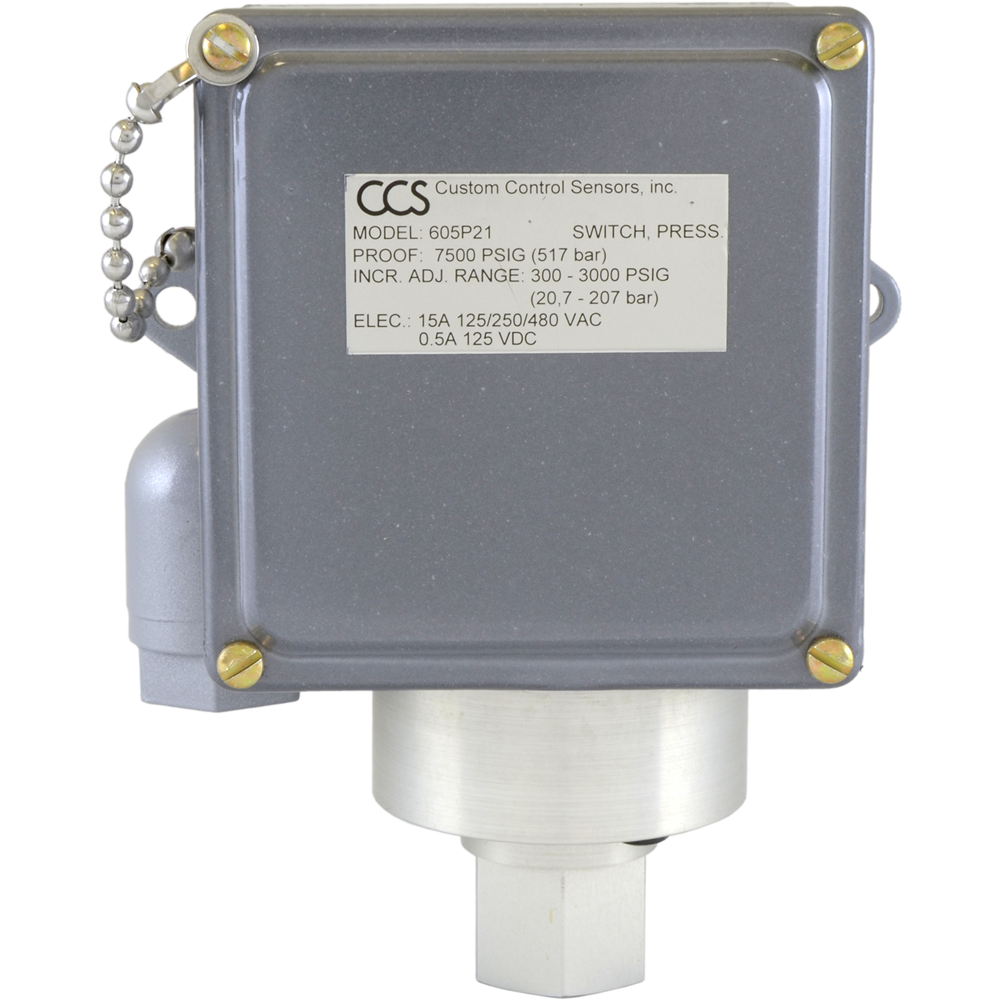

605P Series Pressure Switch

Brand: Custom Control Sensors
  • Adjustable Set Point Range:
    • Increasing: 20 to 5000 psig, 137.9 to 34,473.7 kPa, 1.4 to 345 bar
    • Decreasing: 10 to 4520 psig, 69.0 to 31,164.3 kPa, 0.68 to 312 bar
  • Deadband: Approximately 10 to 480 psi, 69.0 to 3309.4 kPa, 0.68 to 33.1 bar
  • System Pressure (Maximum): 2000 to 7500 psig, 13,789.51 to 51,710.6 kPa, 138 to 517 bar
  • Proof Pressure: 3000 to 10,000 psig, 20,684.27 to 68,947.5 kPa, 690 bar
  • Wetted Materials:
    • Pressure Port: 1/4" Female NPT Aluminum
    • Piston: 400 Stainless Steel
    • O-Ring: Buna N, Teflon
  • Relay: SPDT or DPDT
  • CRN, CE Mark, General Purpose
show more
Images are representations only.
  • Adjustable Set Point Range:
    • Increasing: 20 to 5000 psig, 137.9 to 34,473.7 kPa, 1.4 to 345 bar
    • Decreasing: 10 to 4520 psig, 69.0 to 31,164.3 kPa, 0.68 to 312 bar
  • Deadband: Approximately 10 to 480 psi, 69.0 to 3309.4 kPa, 0.68 to 33.1 bar
  • System Pressure (Maximum): 2000 to 7500 psig, 13,789.51 to 51,710.6 kPa, 138 to 517 bar
  • Proof Pressure: 3000 to 10,000 psig, 20,684.27 to 68,947.5 kPa, 690 bar
  • Wetted Materials:
    • Pressure Port: 1/4" Female NPT Aluminum
    • Piston: 400 Stainless Steel
    • O-Ring: Buna N, Teflon
  • Relay: SPDT or DPDT
  • CRN, CE Mark, General Purpose
4 models matching criteria
605P15
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, 400 SST Piston, Buna-N O-Ring, Teflon O-Ring, SPDT, Approvals: CE, CRN, CCC, EAC
25+ In Stock
$321.00USD
$9.99 Shipping
605P12
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, 400 SST Piston, Buna-N O-Ring, Teflon O-Ring, SPDT, Approvals: CE, CRN, CCC, EAC
25+ In Stock
$321.00USD
$9.99 Shipping
605P21
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, 400 SST Piston, Buna-N O-Ring, Teflon O-Ring, SPDT, Approvals: CE, CRN, CCC, EAC
25+ In Stock
$321.00USD
$9.99 Shipping
605P31
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, 400 SST Piston, Buna-N O-Ring, Teflon O-Ring, SPDT, Approvals: CE, CRN, CCC, EAC
13 In Stock
$321.00USD
$9.99 Shipping

605P

Base Model

Process Connection

O-Ring

Output

Electrical Contacts

Manual Reset

This Manual Reset option allows for automatic actuation on increasing pressure.

Paint

Specifications

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - N.W. Territories
  • CRN - Saskatchewan
  • EMC
  • LVD
  • PED
  • RoHS

Deadband, Approximate

  • bar: 0.68 to 33.1
  • kPa: 69.0 to 3,309
  • psig: 10 to 480

Diaphragm Material

  • None

Electrical Connectors

  • 1/2" NPT Male

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 15 A at 125/250/480 Vac Resistive, 0.4 A at 125 DC, 0.2 A at 250 DC
  • 5 A at 125/250 Vac Resisitve, 5 A at 28 DC, 0.5 A at 125 DC

Enclosure, Body Material

  • Aluminum

Manual Reset

  • Manual Reset on Increasing Pressure

NACE & NIST

  • NACE

NPT Connection

  • 1/4" NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Buna-N, Teflon
  • Ethylene Propylene (EPR)
  • Viton

Piston Material

  • Stainless Steel, 400 Series

Process Connection Material

  • Aluminum

Proof Pressure

  • bar: 207 to 690
  • kPa: 20,684 to 68,948
  • psig: 3,000 to 10,000

Set Point - Decreasing

  • bar: 0.68 to 312
  • kPa: 69.0 to 31,164
  • psig: 10 to 4,520

Set Point - Increasing

  • bar: 1.4 to 345
  • kPa: 137.9 to 34,474
  • psig: 20 to 5,000

Standard Features

  • Internal Case Ground
  • Weatherproof

Switch Type

  • DPDT
  • SPDT

System Pressure

  • bar: 138 to 517
  • kPa: 20,684
  • psig: 2,000 to 7,500
