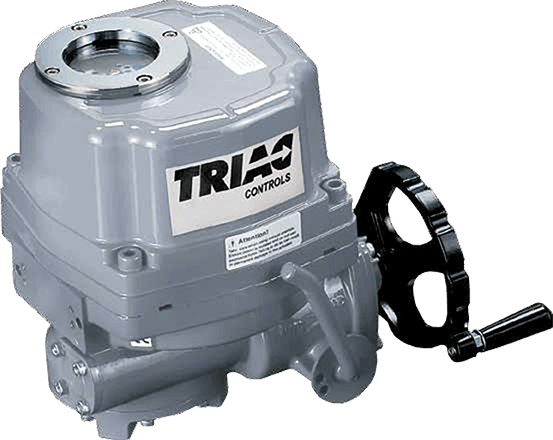

XC Series Electric Actuator

Brand: A-T Controls, Inc.
The Triac XC Series Actuators are CSA Certified Type 4, 4X, 6 & 7 for hazardous locations and meet UL 1203 standard.

The actuators are rugged and reliable with powder coated anodized aluminum housing for use in Oil, Gas, Chemical & Power Gen applications. The XC Series is the perfect match for resilient or high-performance butterfly valves and dampers because of the self-locking, double reduction worm drive and torque switches. The XC Series is also ideal for ball, plug or any rotary valve requiring automation in a hazardous location.
Features
  • Visual position indicator
  • Torque switches (XC-01350 – XC-25900)
  • Anti-condensation heater and thermostat
  • Two auxiliary limit switches
  • Self-locking gear train
  • Manual handwheel with torque from 690 in-lbs to 25900 in-lbs
  • Available motor voltages: 12VDC, 24VDC, 24VAC, 120VAC & 220VAC
  • Optional proportional control
  • Various inputs with feedback available
show more
Images are representations only.
The Triac XC Series Actuators are CSA Certified Type 4, 4X, 6 & 7 for hazardous locations and meet UL 1203 standard.

The actuators are rugged and reliable with powder coated anodized aluminum housing for use in Oil, Gas, Chemical & Power Gen applications. The XC Series is the perfect match for resilient or high-performance butterfly valves and dampers because of the self-locking, double reduction worm drive and torque switches. The XC Series is also ideal for ball, plug or any rotary valve requiring automation in a hazardous location.
Features
  • Visual position indicator
  • Torque switches (XC-01350 – XC-25900)
  • Anti-condensation heater and thermostat
  • Two auxiliary limit switches
  • Self-locking gear train
  • Manual handwheel with torque from 690 in-lbs to 25900 in-lbs
  • Available motor voltages: 12VDC, 24VDC, 24VAC, 120VAC & 220VAC
  • Optional proportional control
  • Various inputs with feedback available
14 models matching criteria
XC-0690-X
A-T CONTROLS XC Series Electric Actuator, CSA Explosion Proof, On/Off, 690 In-Lbs, 110VAC
2 - 4 weeks
$996.23USD
$8.23 Shipping
XC-00690E
A-T CONTROLS XC Series Electric Actuator, CSA Explosion Proof, On/Off, 690 In-Lbs, 220VAC
2 - 4 weeks
$996.23USD
$8.23 Shipping
XC-690A
A-T CONTROLS XC Series Electric Actuator, CSA Explosion Proof, On/Off, 620 In-Lbs, 24VDC/24VAC
2 - 4 weeks
$1,208.64USD
$8.23 Shipping
XC-00690A
A-T CONTROLS XC Series Electric Actuator, CSA Explosion Proof, On/Off, 620 In-Lbs, 24VDC/24VAC
2 - 4 weeks
$1,208.64USD
$8.23 Shipping
XC-01700X
A-T CONTROLS XC Series Electric Actuator, CSA Explosion Proof, On/Off, 1700 In-Lbs, 110VAC
2 - 4 weeks
$1,246.52USD
$8.23 Shipping
XC-1350A
A-T CONTROLS XC Series Electric Actuator, CSA Explosion Proof, On/Off, 1350 In-Lbs, 24VDC/24VAC
2 - 4 weeks
$1,380.72USD
$8.23 Shipping
XC-02640-X
A-T CONTROLS XC Series Electric Actuator, CSA Explosion Proof, On/Off, 2640 In-Lbs, 110VAC
2 - 4 weeks
$1,409.54USD
$8.23 Shipping
XC-01700A
A-T CONTROLS XC Series Electric Actuator, CSA Explosion Proof, On/Off, 1410 In-Lbs, 24VDC/24VAC
2 - 4 weeks
$1,458.11USD
$8.23 Shipping
XC-1700A
A-T CONTROLS XC Series Electric Actuator, CSA Explosion Proof, On/Off, 1350 In-Lbs, 24VDC/24VAC
2 - 4 weeks
$1,458.11USD
$8.23 Shipping
XC-1700C
A-T CONTROLS XC Series Electric Actuator, CSA Explosion Proof, On/Off, 1410 In-Lbs, 24VDC
2 - 4 weeks
$1,458.11USD
$8.23 Shipping
XC-02640A
A-T CONTROLS XC Series Electric Actuator, CSA Explosion Proof, On/Off, 2120 In-Lbs, 24VDC/24VAC
2 - 4 weeks
$1,621.13USD
$8.23 Shipping
XC-2640A
A-T CONTROLS XC Series Electric Actuator, CSA Explosion Proof, On/Off, 2120 In-Lbs, 24VDC/24VAC
2 - 4 weeks
$1,621.13USD
$8.23 Shipping
XC-10500X
A-T CONTROLS XC Series Electric Actuator, CSA Explosion Proof, On/Off, 9600 In-Lbs, 110VAC
2 - 4 weeks
$2,238.63USD
$8.23 Shipping
XCD-1350-X
A-T CONTROLS XC Series Electric Actuator, CSA Explosion Proof, Modulating, 1350 In-Lbs, 110VAC
2 - 4 weeks
$2,302.85USD
$8.23 Shipping

XC Series

Model

Control Type

  • view details

Actuator Size

Motor Voltage

  • view details

Transmitter

Operation

Typical Applications

For use in Oil, Gas, Chemical & Power Gen applications.
