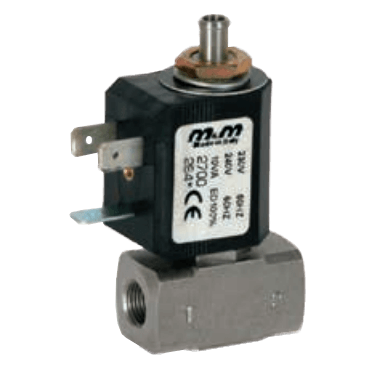

B398 3/2-Way Direct-Acting Solenoid Valve, G 1/8"

Brand: M&M International - by Rotork
Request Information
  • Media: Water, Oil, Air and Aggressive Fluids
  • Media Temperature: -10° to 130° C (14° to 266° F)
  • Ambient Temperature: -10° to 50° C (14° to 122° F)
  • Body Material: Stainless Steel (1.4305 EN 10088/AISI 303)
  • Orifice Material: Stainless Steel (1.4305 EN 10088/AISI 303)
  • Operator Material: Stainless Steel
  • Seal Material: Food grade FKM
  • Protection Class: IP65 (with Connector and Gasket)
  • Media: Water, Oil, Air and Aggressive Fluids
  • Media Temperature: -10° to 130° C (14° to 266° F)
  • Ambient Temperature: -10° to 50° C (14° to 122° F)
  • Body Material: Stainless Steel (1.4305 EN 10088/AISI 303)
  • Orifice Material: Stainless Steel (1.4305 EN 10088/AISI 303)
  • Operator Material: Stainless Steel
  • Seal Material: Food grade FKM
  • Protection Class: IP65 (with Connector and Gasket)
Close

Specifications

Brand

Approvals & Certifications

  • CE

BSP Connection

  • G 1/8" Female

Enclosure, Body Material

  • 303 Stainless Steel, 1.4305 EN 10088

Environmental Protection

  • IP65 (with Connector & Gasket)

Seat / Seal Material

  • Foodgrade FKM - Seal
