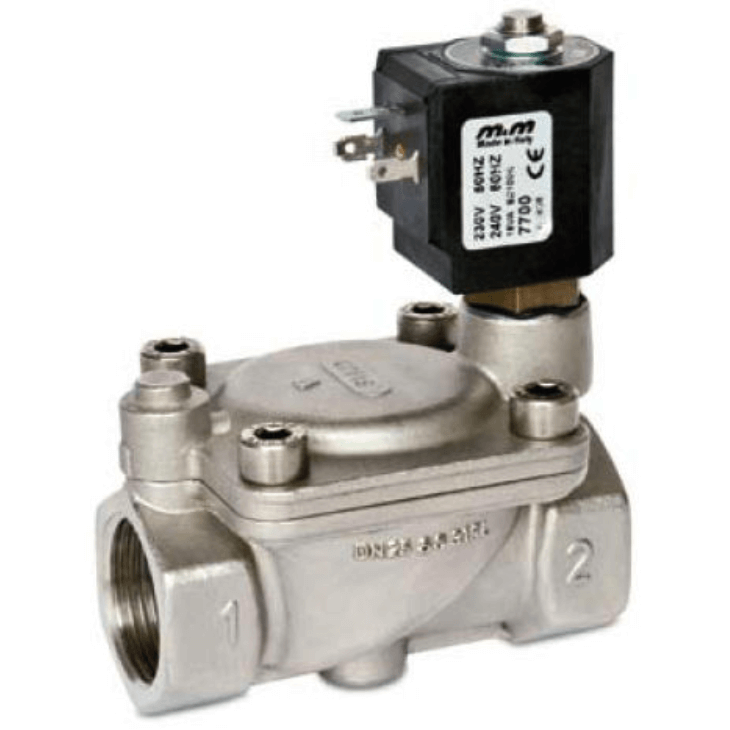

D206DVYI-D22DVYI, D204DVZI-D205DVZI, RD606DT-RD622DT 2/2-Way Pilot-Operated Solenoid Valve

Brand: M&M International - by Rotork
  • Media: Water, Oil, Air
  • Media Temperature: -10° to 130° C (14° to 266° F)
  • Ambient Temperature: -10° to 50° C (14° to 122° F)
  • Body Material: AISI 316L (ASME SA351/351M GRADE CF3M)
  • Operator Material: Stainless Steel
  • Operator Seal Material and Diaphragm Material: FKM
  • Silver: Shading Ring as Standard
  • Protection Class: IP65 (with Connector and Gasket)
show more
  • Media: Water, Oil, Air
  • Media Temperature: -10° to 130° C (14° to 266° F)
  • Ambient Temperature: -10° to 50° C (14° to 122° F)
  • Body Material: AISI 316L (ASME SA351/351M GRADE CF3M)
  • Operator Material: Stainless Steel
  • Operator Seal Material and Diaphragm Material: FKM
  • Silver: Shading Ring as Standard
  • Protection Class: IP65 (with Connector and Gasket)
D205DVZI
M&M Solenoid Valve, D204 Series, 3/8" Pipe, VKM Seals, NPT, 33/64 Orifice, NEMA4, IP65 View More
  • D2: Main Valve Assembly
  • 05: Pipe Size: 1/2"
  • DV: Seals: VKM
  • Z: Orifice: 33/64
  • I: With Options (below, sold separately)
    • 7251: Coil Option
    • 600011000: Female DIN Plastic Connector

10 - 12 weeks
Non-Cancellable / Non-Refundable
$437.96USD
$14.81 Shipping
D222DVYI
M&M Solenoid Valve, D222 Series, 1" Pipe, VKM Seals, NPT, 63/64 Orifice, NEMA4, IP65 View More
  • D2: Main Valve Assembly
  • 22: Pipe Size: 1"
  • DV: Seals: VKM
  • Y: Orifice: 63/64
  • I: With Options (below, sold separately)
    • 7251: Coil Option
    • 600011000: Female DIN Plastic Connector

10 - 12 weeks
Non-Cancellable / Non-Refundable
$600.99USD
$14.81 Shipping

Specifications

Approvals & Certifications

  • ATEX for D204/205/206
  • CE
  • UL Approved Coil

BSP Connection

  • G 1" Female
  • G 1/2" Female
  • G 3/4" Female
  • G 3/8" Female

Enclosure, Body Material

  • 316L Stainless Steel - ASME SA351, 351M, CF3M

Environmental Protection

  • IP65 (with Connector & Gasket)

Seat / Seal Material

  • Operator Seal: FKM
  • Seal: EPDM, Temperature, Maximum
  • Seal: NBR, Temperature, Maximum
