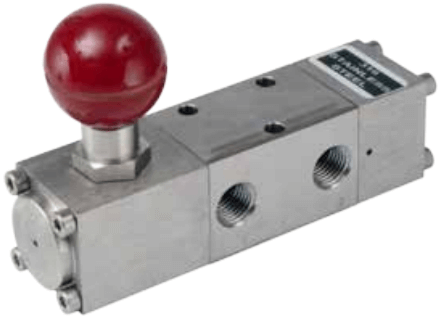

1650 Series Manually Operated

Brand: Midland-ACS
Request a Quote
Favorite
A range of 3/2 Manually Operated Spool Valves in Stainless Steel for use on Gases.
Features
  • Specifically Designed for Severe Environments

  • Working Temperature Range -20° to 180º C (-4° to 356º F)

  • 316L Stainless Steel Construction

  • Designed for Actuator Control

  • NACE Option Available
    • show more
    Images are representations only.
    A range of 3/2 Manually Operated Spool Valves in Stainless Steel for use on Gases.
    Features
  • Specifically Designed for Severe Environments

  • Working Temperature Range -20° to 180º C (-4° to 356º F)

  • 316L Stainless Steel Construction

  • Designed for Actuator Control

  • NACE Option Available
    • Close

    Specifications

    Brand

    Ambient Temperature Range

    • -20° to 180° C (-4° to 356° F)

    Approvals & Certifications

    • ATEX
    • CE
    • EAC
    • Ex

    Enclosure, Body Material

    • 316 Stainless Steel - Spool
    • 316L Stainless Steel

    Flow Capacity

    • 1" Valves - 477 scfm (810 m³/hour) 13.5 Cv
    • 3/4" Valves - 318 scfm (540 m³/hour) 9.0 Cv

    Media

    • Air
    • Gases - Filtered Lubricated or Non-Lubricated
    • Inert Gas
    • Sour Natural Gas
    • Sweet Natural Gas

    NACE & NIST

    • NACE

    NPT Connection

    • 1" NPT Line Port
    • 1/8" NPT Pilot Ports
    • 3/4" NPT Line Port

    Pressure Range

    • psi: 0 to 174

    Seat/Seal Material

    • Fluoroelastomer

    Spring Material

    • 316 Stainless Steel
    Close
