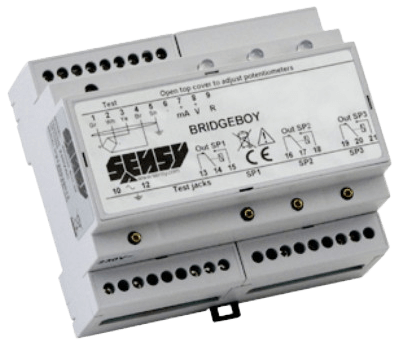

BRIDGE-BOY Load Limitation Electronics

Brand: Sensy S.A.
Electronics with 1 or 3 set points designed, in combination with a load cell, to limit the load and/or to detect slack cable of a hoisting device (EOT cranes).
Features
  • Low cost
  • 1 or 3 independent set points
  • Set point 1 and 2 configurated for load limitation
  • Set point 3 configurated by default for slack cable detection
  • Adjustments by potentiometers easy to reach
  • Analog outputs: 0-10 V and 4 to 20 mA
  • Din rail mounting (TS 35)
  • 115 Vac available by internal jumper
show more
Images are representations only.
Electronics with 1 or 3 set points designed, in combination with a load cell, to limit the load and/or to detect slack cable of a hoisting device (EOT cranes).
Features
  • Low cost
  • 1 or 3 independent set points
  • Set point 1 and 2 configurated for load limitation
  • Set point 3 configurated by default for slack cable detection
  • Adjustments by potentiometers easy to reach
  • Analog outputs: 0-10 V and 4 to 20 mA
  • Din rail mounting (TS 35)
  • 115 Vac available by internal jumper

BRIDGE-BOY

Model

Supply Voltage

Relay

Specifications

Brand

Accuracy

  • ± 0.5% of Full Scale

Applications

  • Load Limitation

Approvals & Certifications

  • CE

Delay Time

  • 60 milliseconds to 1 second

Environmental Protection

  • IP20
  • IP54

Input

  • 0.4-2 mV/V

Mounting

  • DIN Rail TS35

Output

  • Current: 4-20 mA (Load Resistance ≤ 500 ohms)
  • Tension: 0-10 V (Load Resistance ≥ 2.5 KiloOhms)

Power Supply

  • 10 VA
  • 115-230 Vac (50/60 Hz, 10 VA)
  • 48-115 Vac (50/60 Hz, 10 VA)

Relay Output

  • 1 Relay
  • 3 Relays
  • 6 A (250 Vac) - Breaking Capacity Relays

Sensor Excitation

  • 10-28 mA (11 V, Maximum

Service Temperature

  • -20° to 60° C (-4° to 140° F)

Storage Temperature

  • -40° to 70° C (-40° to 158° F)
