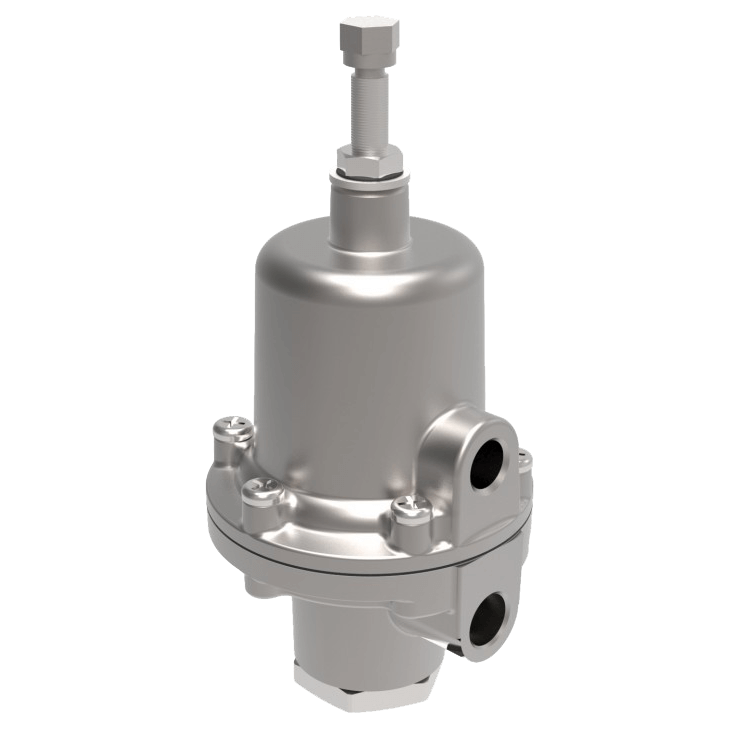

Model 66BP Back Pressure Regulator

Brand: Fairchild Industrial Products
The Rotork Fairchild Model 66BP is a stainless steel precision back pressure regulator for high performance applications with corrosive environments and/or high temperatures. The Model 66BP stainless steel housing and internals, along with its fluorocarbon elastomers are compatible with a wide range of corrosive materials and difficult operating environments.

The Fairchild Model 66BP features control sensitivity of 1" water column to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of system pressure changes or conditions.

The Fairchild Model 66BP back pressure regulator will handle a 150 psi, 10 BAR maximum system pressure and offers five (5) set point pressure ranges from 0-10 psi, 0-0.7 BAR, 0-70 kPa up to 2-150 psi, 0.15-10 BAR, 15-1,000 kPa.
Features
  • Stainless Steel and Fluorocarbon
  • Control sensitivity to 1" water column
  • Large Control Diaphragm area
  • Valve Damper system
  • Line or Panel Mounting
show more
Images are representations only.
The Rotork Fairchild Model 66BP is a stainless steel precision back pressure regulator for high performance applications with corrosive environments and/or high temperatures. The Model 66BP stainless steel housing and internals, along with its fluorocarbon elastomers are compatible with a wide range of corrosive materials and difficult operating environments.

The Fairchild Model 66BP features control sensitivity of 1" water column to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of system pressure changes or conditions.

The Fairchild Model 66BP back pressure regulator will handle a 150 psi, 10 BAR maximum system pressure and offers five (5) set point pressure ranges from 0-10 psi, 0-0.7 BAR, 0-70 kPa up to 2-150 psi, 0.15-10 BAR, 15-1,000 kPa.
Features
  • Stainless Steel and Fluorocarbon
  • Control sensitivity to 1" water column
  • Large Control Diaphragm area
  • Valve Damper system
  • Line or Panel Mounting

Model 66BP

Pressure Range

Port Size

Port Thread

Elastomers

Adjustment Type

Bonnet

Exhaust Port

Mounting

Specifications

Actuator Type

  • Knob Adjust
  • Screw

Ambient Temperature Range

  • -65° to 149° C (-85° to 300° F)

Bonnet Material

  • Aluminum
  • Stainless Steel

BSP Connection

  • 1/2" BSPP Female
  • 1/2" BSPT Female
  • 1/4" BSPP Female
  • 1/4" BSPT Female
  • 3/8" BSPP Female
  • 3/8" BSPT Female

Diaphragm Material

  • Fluorocarbon on Nomex with Teflon Shield

Elastomers

  • FluoroCarbon

Enclosure, Body Material

  • 316 Stainless Steel

Exhaust Port

  • Tapped Exhaust

Flow Capacity

  • 22 scfm (37.4 m³/hour) at psig: 100 (kPa: 700, bar: 7) System Pressure

Mounting

  • Panel Mount

NPT Connection

  • 1/2" NPT Female
  • 1/4" NPT Female
  • 3/8" NPT Female

Pressure Range

  • bar: 0 to 10
  • kPa: 0 to 1,000
  • psig: 0 to 150

Sensitivity

  • 1" WC (2.54 cm)

Supply Pressure - Maximum

  • bar: 10
  • kPa: 1,000
  • psig: 150

Trim Material

  • 316 Stainless Steel
  • Teflon
