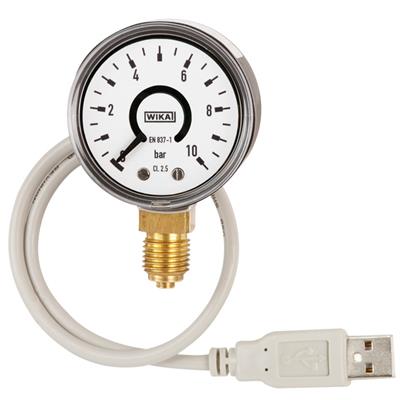

Images are representations only.

Bourdon Tube Pressure Gauge Type 111.10

Brand: WIKA Alexander Wiegand SE & Co. KG
Features
  • Copper alloy wetted parts
  • Black plastic or painted steel case
  • Lower mount (LM) process connection
show more
Features
  • Copper alloy wetted parts
  • Black plastic or painted steel case
  • Lower mount (LM) process connection

Specifications

Enclosure, Body Material

  • Black Plastic

Lens

  • Window: Crystal-Clear Plastic, Snap-fit

Materials of Construction

  • Dial & Pointer: Aluminum
  • Dial: Plastic
  • Movement, Bourdon Tube, Pressure Connection: Copper Alloy
  • Pointer: ABS Plastic

NPT Connection

  • 1/4” NPT Female
  • 1/8” NPT Female

Pressure Range

  • bar: -1 to 400
  • kPa: -100 to 40,000
  • psi: -15 to 6,000

Pressure Type

  • Compound (Vacuum & Gauge Pressure)
  • Vacuum

Size

  • Dial: 1-1/2” (40 mm)
  • Dial: 2” (50 mm)
  • Dial: 2-1/2” (63 mm)
  • Dial: 4” (101 mm)
