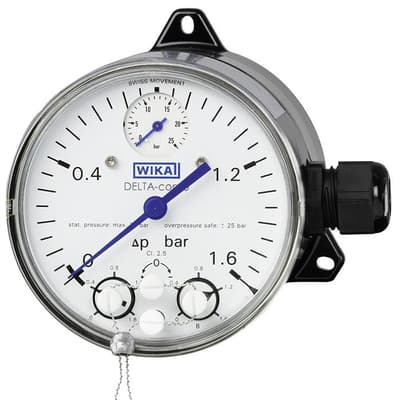

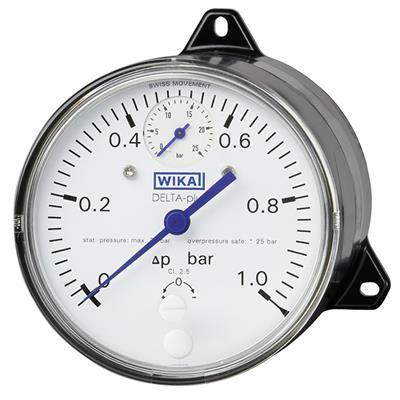

Model DPGS40TA Differential Pressure Gauge with Micro Switch

Brand: WIKA Instruments Ltd.
The differential pressure gauges of the DELTA-line product family are primarily used for the monitoring and control of low differential pressures where there are high requirements in terms of one-sided overpressure and static pressure.
Features
  • Differential pressure gauge with integrated working pressure indication and micro switch
  • Robust aluminium case with shatterproof window
  • TÜV certified functional safety through SIL certificate
  • Flow monitor with safety function in accordance with VdTÜV code of practice "Flow 100"
  • Germanischer Lloyd approval
show more
Images are representations only.
The differential pressure gauges of the DELTA-line product family are primarily used for the monitoring and control of low differential pressures where there are high requirements in terms of one-sided overpressure and static pressure.
Features
  • Differential pressure gauge with integrated working pressure indication and micro switch
  • Robust aluminium case with shatterproof window
  • TÜV certified functional safety through SIL certificate
  • Flow monitor with safety function in accordance with VdTÜV code of practice "Flow 100"
  • Germanischer Lloyd approval

Specifications

Nominal Size

  • Differential pressure indication: Ø 100 mm
  • Working pressure indication: Ø 22 mm

Accuracy

  • Working Pressure Indication: ≤ 4% of Span
  • Differential Pressure Indication: ≤ 2.5% of Span (option ≤ 1.6 %)

Scale Ranges (EN 837)

  • Working pressure: 0 ... 25 bar
  • Differential pressure VdTÜV version: 0 ... 0.25 to 0 ... 2.5 bar
  • Differential pressure SIL version: 0 ... 0.25 to 0 ... 6 bar
  • Differential pressure: 0 ... 0.25 to 0 ... 10 bar

Max. Working Pressure (Stat.)

  • 25 bar

Overpressure Safety

  • Either side max. 25 bar

Permissible Temperature

  • Storage: -40 ... +70° C
  • Medium: -10 ... +90° C
  • Ambient: -10 ... +70° C

Ingress Protection

  • IP65 per IEC/EN 60529

Media Chamber (wetted)

  • Aluminium, EN AC–Al Si9Cu3(Fe), Black lacquered (option: Stainless Steel 1.4571)

Process Connections (wetted)

  • 2 x G 1/4 female, lower mount (LM), in-line, centre distance 26 mm

Pressure Elements (Wetted)

  • Differential Pressure: Compression springs from stainless steel 1.4310 and separating diaphragm from FPM/FKM (option: NBR, not available for VdTÜV version) Working Pressure: Bourdon Tube from Cu-alloy

Transmission Parts (wetted)

  • Stainless steel 1.4301, 1.4305, 1.4310, FPM/FKM (option: NBR)

Sealings (wetted)

  • FPM/FKM (option: NBR)

Movement

  • Copper alloy

Dial

  • Differential and working pressure indication: White dial, black lettering

Pointer

  • Differential and working pressure indication: Blue pointer

Zero adjustment for differential Pressure indication

  • Via screw in the dial

Case

  • Aluminium, EN AC–Al Si9Cu3(Fe), black lacquered

Window

  • Plastic, with plug screw for zero and switch point adjustment (Option: Lead sealing of the settings)

Weight

  • approx. 1.4 kg

Typical Applications

Monitoring and control of filters, compressors and pumps in:
  • Marine boilers, pressure vessels, bilge-water collection
  • Drinking and cooling-water treatment plants
  • Pressure-boosting stations, heating technology, fire-extinguishing systems
