604D Pressure Switch

Brand: Custom Control Sensors
  • Adjustable Set Point Range:
    • Increasing: 1 to 75 psid, 6.9 to 517.1 kPa, 0.069 to 5.17 bar
    • Decreasing: 0.4 to 71 psid, 2.7 to 489.5 kPa, 0.02 to 4.9 bar
  • Deadband: Approximately 0.6 to 4 psi, 4.13 to 27.5 kPa, 0.042 to 0.28 bar
  • System Pressure (Maximum): 400 psig, 2757.90 kPa, 28 bar
  • Proof Pressure:
    • Both Ports: 750 psig, 5171.07 kPa, 52 bar
    • High: 750 psig, 5171.07 kPa, 52 bar
    • Low: 400 psig, 2757.90 kPa, 28 bar
  • Wetted Materials:
    • Pressure Port: 1/4"-18 Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • UL, CRN, CE Mark, General Purpose
show more

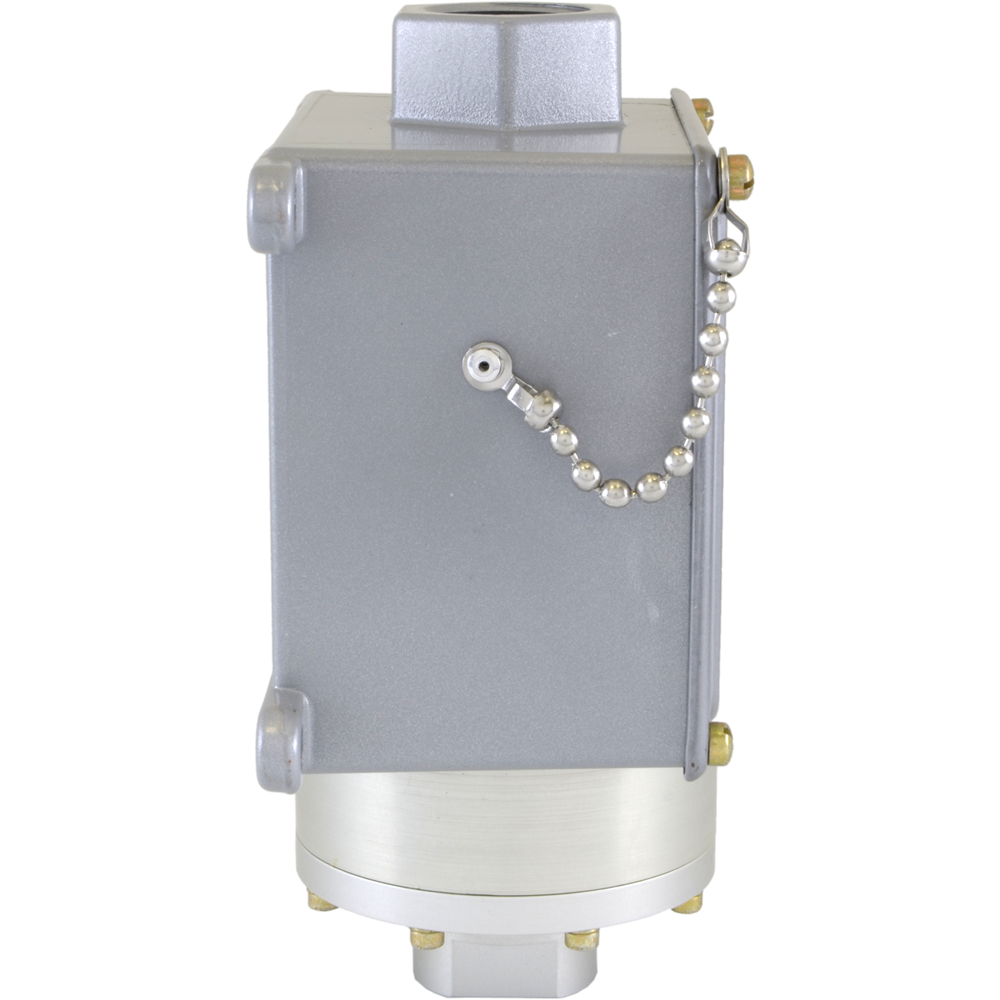

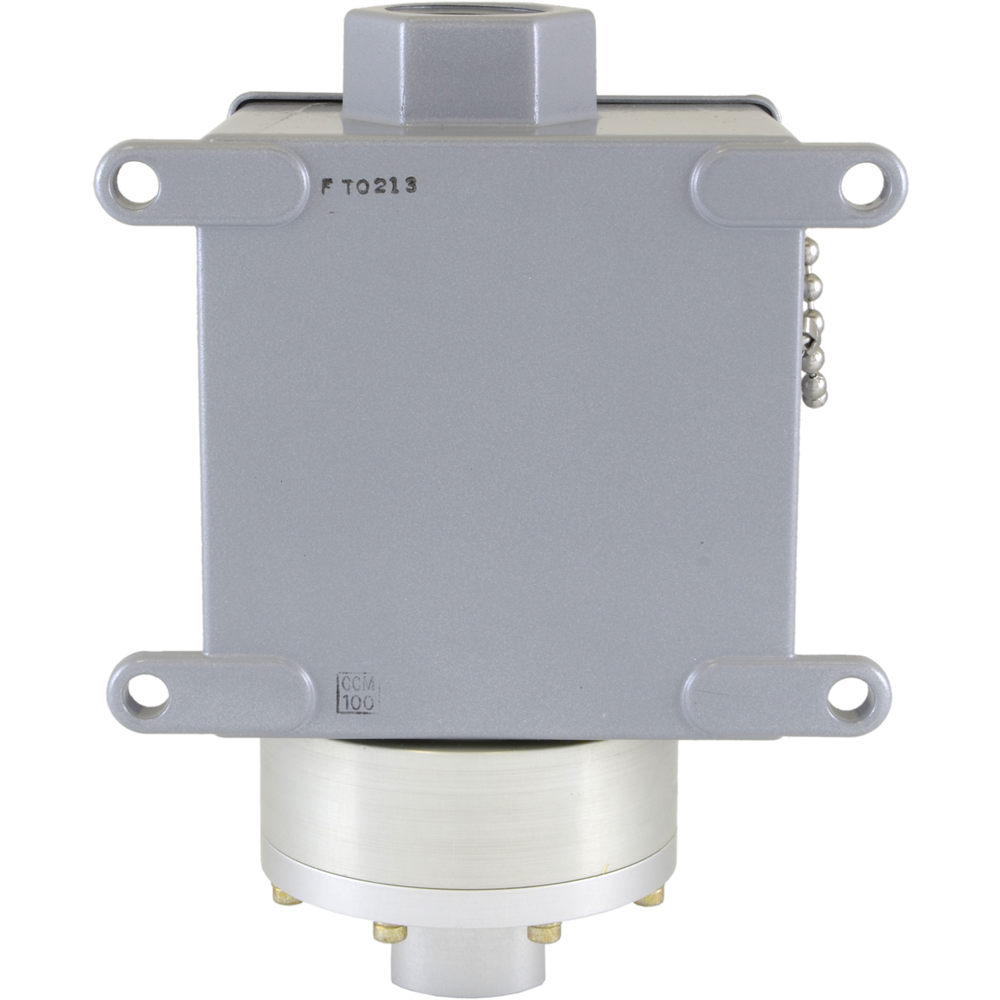

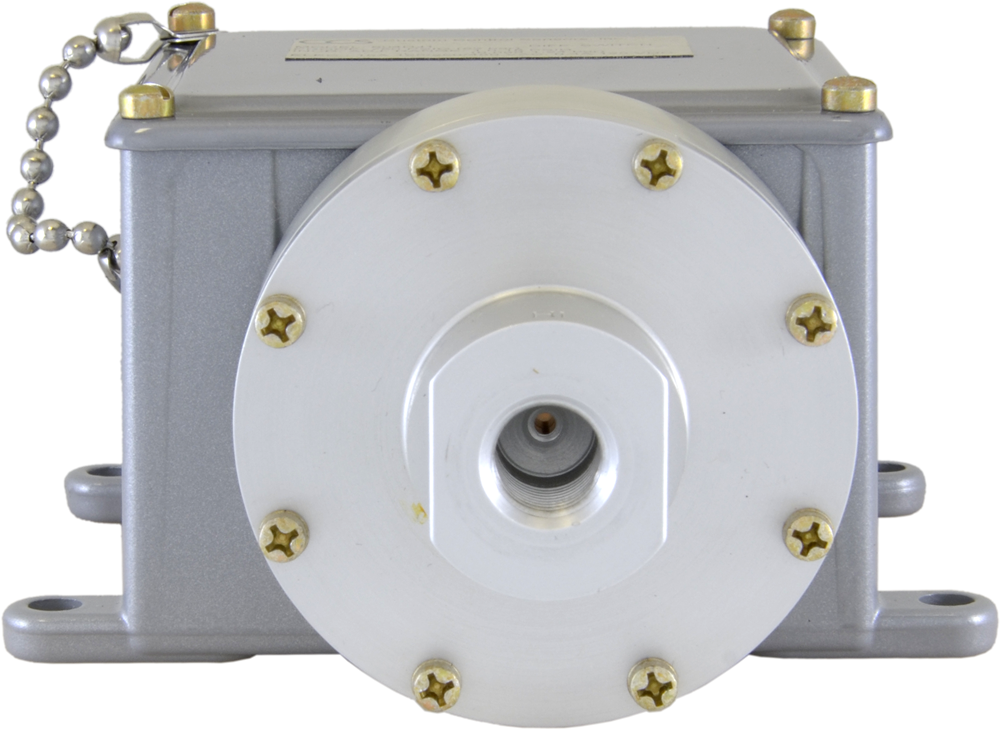

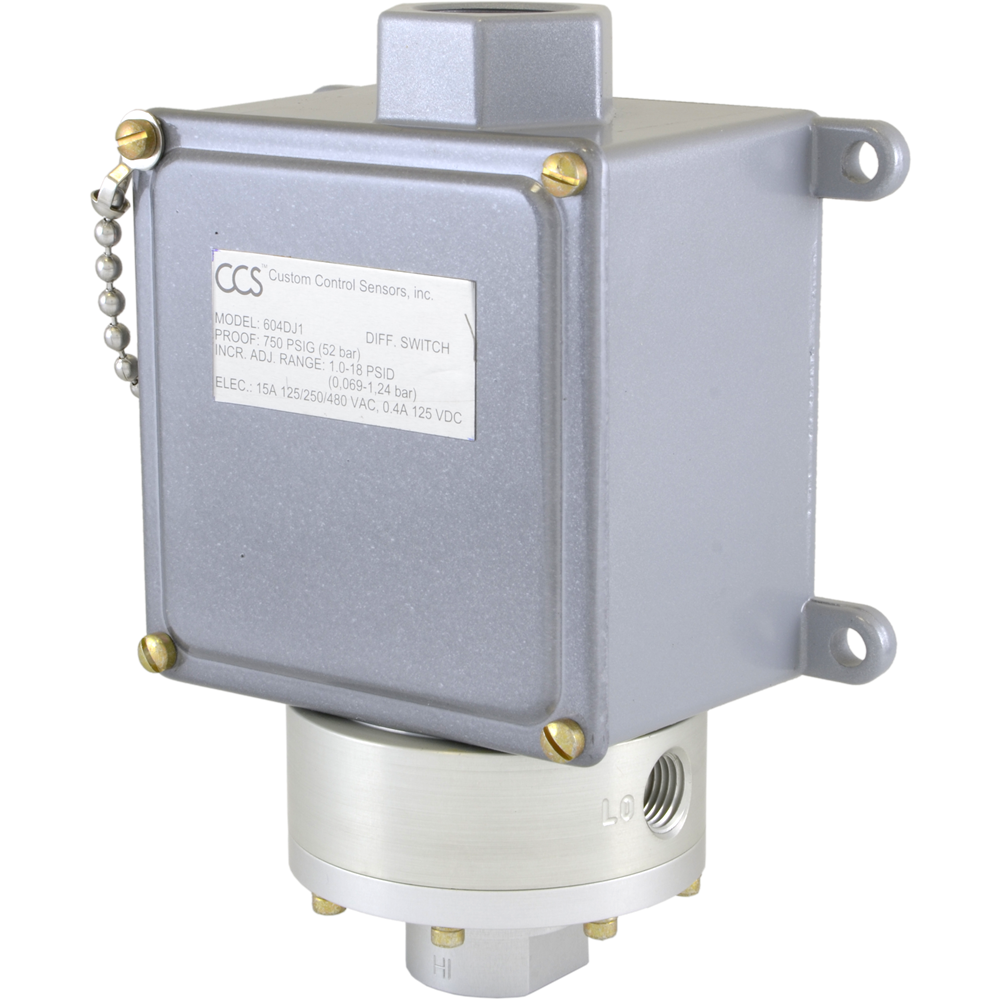

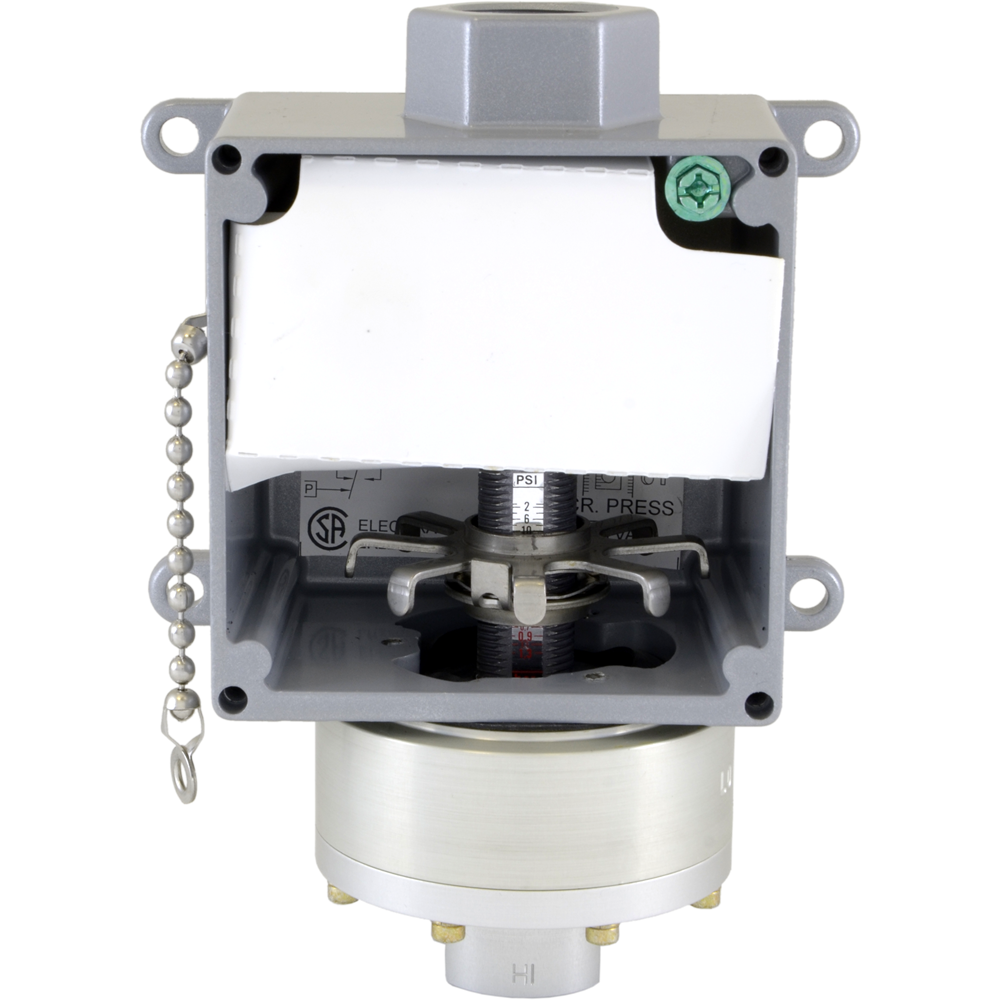

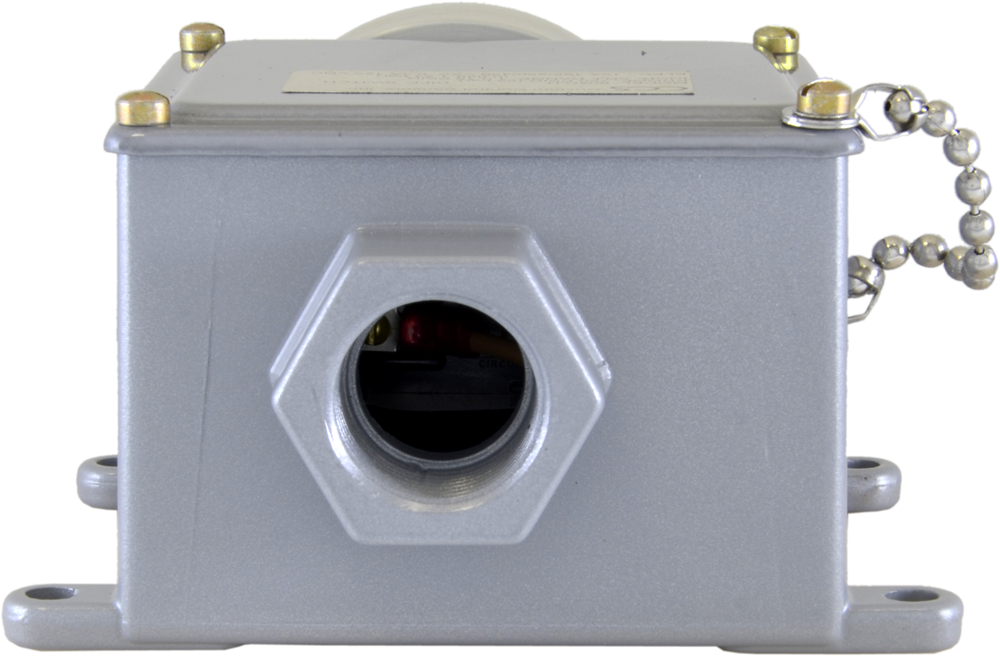

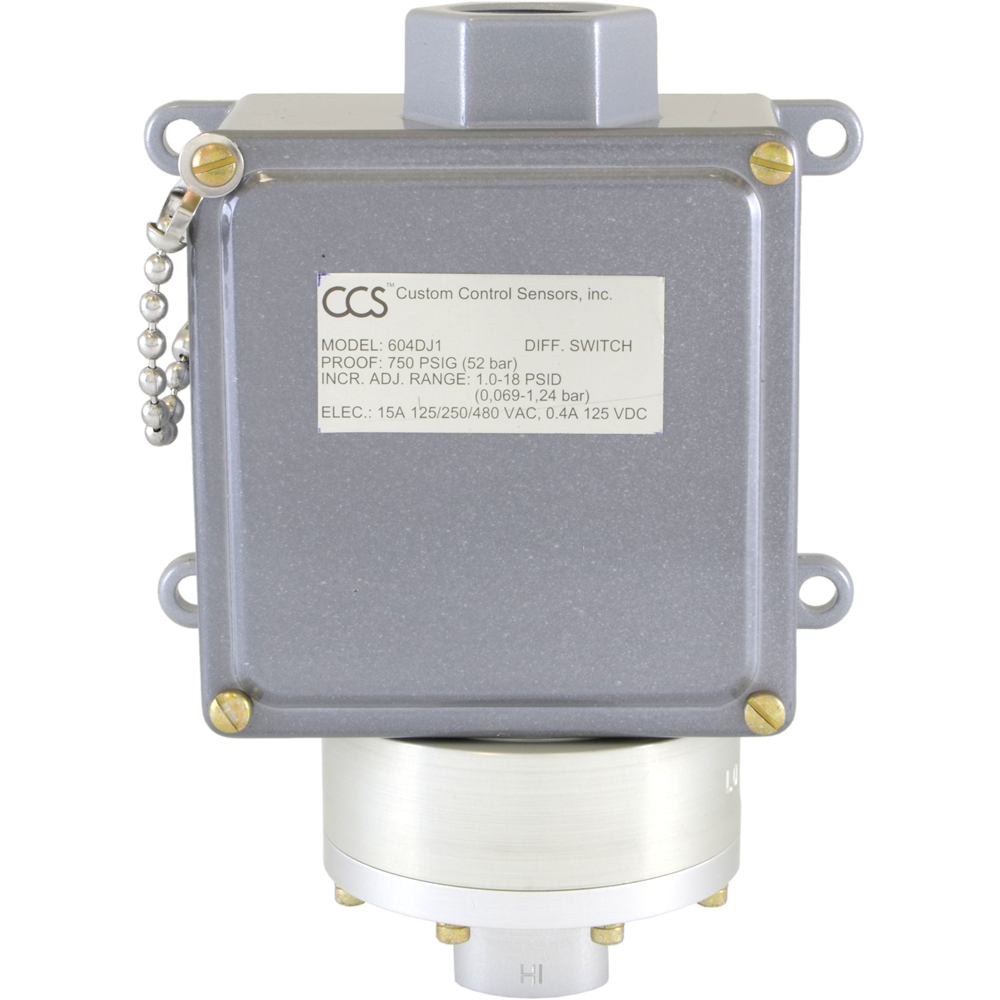

Images are representations only.
  • Adjustable Set Point Range:
    • Increasing: 1 to 75 psid, 6.9 to 517.1 kPa, 0.069 to 5.17 bar
    • Decreasing: 0.4 to 71 psid, 2.7 to 489.5 kPa, 0.02 to 4.9 bar
  • Deadband: Approximately 0.6 to 4 psi, 4.13 to 27.5 kPa, 0.042 to 0.28 bar
  • System Pressure (Maximum): 400 psig, 2757.90 kPa, 28 bar
  • Proof Pressure:
    • Both Ports: 750 psig, 5171.07 kPa, 52 bar
    • High: 750 psig, 5171.07 kPa, 52 bar
    • Low: 400 psig, 2757.90 kPa, 28 bar
  • Wetted Materials:
    • Pressure Port: 1/4"-18 Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • UL, CRN, CE Mark, General Purpose
13 models matching criteria
604D1
CCS DUAL-SNAP Differential Pressure Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, Polyimide Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CE, CRN, CCC, EAC
12 In Stock
$229.35USD
$8.27 Shipping
604DM1
CCS DUAL-SNAP Differential Pressure Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, Polyimide Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CE, CRN, CCC, EAC
10 In Stock
$282.33USD
$8.27 Shipping
604DJ1
CCS DUAL-SNAP Differential Pressure Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, Polyimide Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CE, CSA, CRN, CCC, EAC
7 In Stock
$1,000.18USD
$8.27 Shipping
604DJ2
CCS DUAL-SNAP Differential Pressure Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, Polyimide Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CE, CSA, CRN, CCC, EAC
5 In Stock
$1,027.50USD
$8.27 Shipping
604DM2
CCS DUAL-SNAP Differential Pressure Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, Polyimide Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CE, CRN, CCC, EAC
2 In Stock
$375.89USD
$8.27 Shipping
604D2
CCS DUAL-SNAP Differential Pressure Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, Polyimide Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CE, CRN, CCC, EAC
1 In Stock
$413.15USD
$8.27 Shipping
604D2-7008
CCS DUAL-SNAP Differential Pressure Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, Polyimide Diaphragm, Viton O-Ring, SPDT, Gold Contacts, Approvals: UL, CE, CRN, CCC, EAC
5 - 7 weeks
$1,068.90USD
$8.27 Shipping
604DZJ2
CCS DUAL-SNAP Differential Pressure Switch, Non-Hazardous Area, 1/4" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CE, CSA, CRN, CCC, EAC
5 - 7 weeks
$1,586.37USD
$8.27 Shipping
604DZJ1
CCS DUAL-SNAP Differential Pressure Switch, Non-Hazardous Area, 1/4" NPT SST Port & Diaphragm, Viton O-Ring, SPDT
5 - 7 weeks
$1,595.48USD
$8.27 Shipping
604DZM1-7011
CCS DUAL-SNAP Differential Pressure Switch, Non-Hazardous Area, 1/4" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CE, CRN, CCC, EAC
5 - 7 weeks
$1,718.02USD
$8.27 Shipping
604DZM1
CCS DUAL-SNAP Differential Pressure Switch, Non-Hazardous Area, 1/4" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CE, CRN, CCC, EAC
5 - 7 weeks
$1,745.34USD
$8.27 Shipping
604DZM2-7011
CCS DUAL-SNAP Differential Pressure Switch, Non-Hazardous Area, 1/4" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CE, CRN, CCC, EAC
Out of Stock
$1,747.83USD
$8.27 Shipping
604DJM1
CCS DUAL-SNAP Differential Pressure Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, Polyimide Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CE, CSA, CRN, CCC, EAC
5 - 7 weeks

604D

Base Model

Process Connection

O-Ring

Output

Electrical Contacts

Agency Approvals

Paint
