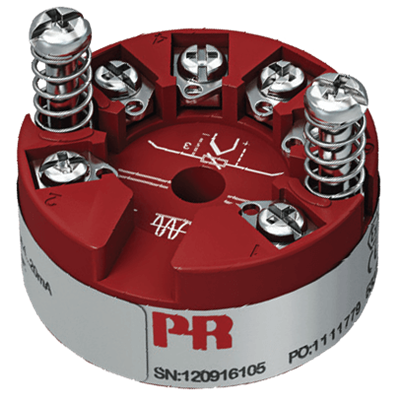

5333D 2-Wire Programmable Transmitter

Brand: PR Electronics
Request Information
Favorite
  • RTD or Ohm input
  • High measurement accuracy
  • 3-wire connection
  • Programmable sensor error value
  • For DIN form B sensor head mounting
Features
  • Within a few seconds the user can program PR5333D to measure temperatures within all RTD ranges defined by the norms.
  • The RTD and resistance inputs have cable compensation for 3-wire connection.
show more
  • RTD or Ohm input
  • High measurement accuracy
  • 3-wire connection
  • Programmable sensor error value
  • For DIN form B sensor head mounting
Features
  • Within a few seconds the user can program PR5333D to measure temperatures within all RTD ranges defined by the norms.
  • The RTD and resistance inputs have cable compensation for 3-wire connection.
Close

Displaying prices & availability for United States in USD. Change location or currency

5333D
PR ELECTRONICS Puck RTD/Thermocouple Transmitter, Programmable, 2-Wire, 4-20 mA, CSA View More
  • Analog 4-20 mA Output
  • 0/250°F
  • CSA, FM, IECEx, ATEX
1 - 4 weeks
Non-Cancellable / Non-Refundable
$151.98 USD
$15.50 Shipping
Close

Specifications

Brand

Accuracy

  • ± 0.1%

Approvals & Certifications

  • ATEX 2014/34/EU KEMA 03-ATEX-1535 X
  • CCOE P337392 / 2
  • CSA 1125003
  • DNV Marine Standard F. Certificate No. 2.4
  • EAC Ex TR-CU 012 / 2011
  • EAC TR CU 020/2011
  • EMC 2014/30/EU
  • FM 2D5A7
  • IECEx DEK 13.0036X
  • INMETRO DEKRA 13.0002 X

Calibration

  • 20° to 28° C (68° to 82° F)

Environmental Protection

  • IP00
  • IP68

Humidity

  • < 95% Relative Humidity, Non-Condensing

Load

  • ≤ (Vsupply-8) / 0.023 ohms

Output

  • 4-20 mA Signal Range

Response Time

  • 0.33 to 60 seconds

RTD Type

  • Linch R
  • Ni100
  • Pt100

Supply Voltage

  • 8.0-35 Vdc

Temperature Range

  • -40° to 85° C (-40° to 185° F)

Vibration

  • ± 1.6 mm
  • ± 4 G
Close

Typical Applications

  • Linearized temperature measurement with Pt100...Pt1000 or Ni100...Ni1000 sensor.
  • Conversion of linear resistance variation to a standard analog current signal, for instance from valves or Ohmic level sensors.
