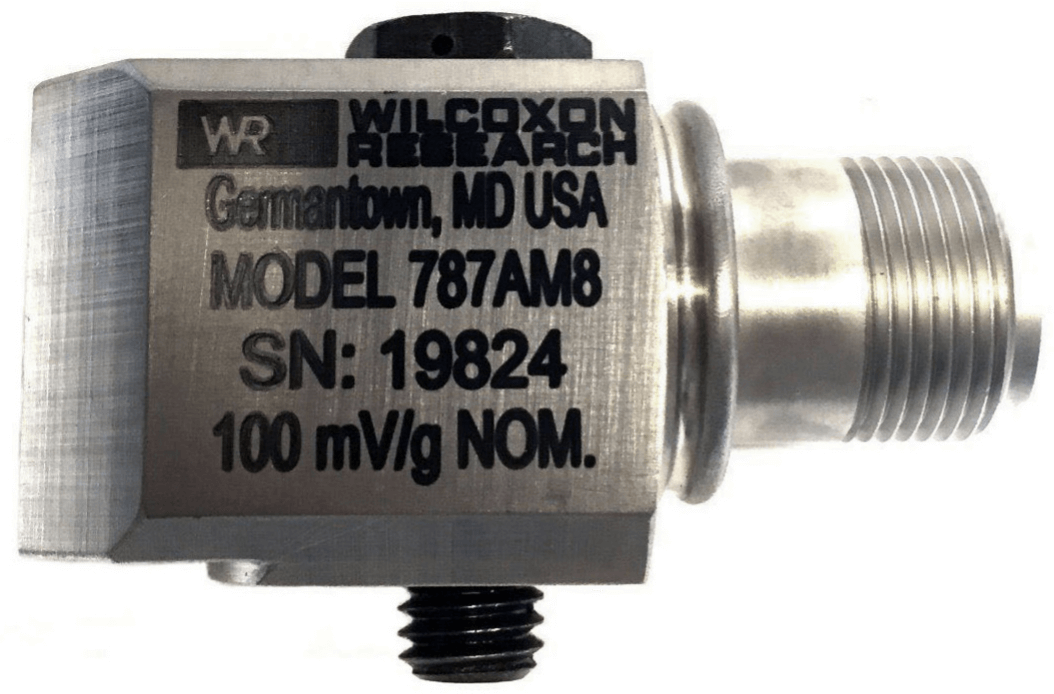

Model 787A-M8 Low Profile Industrial Accelerometer

Brand: Wilcoxon Sensing Technologies
Features:
  • Corrosion resistant
  • Hermetically sealed
  • Ground isolated
  • ESD protection
  • Reverse wiring protection
  • Ideal for moderate industrial environments, conveyors and drives
  • show more
    Images are representations only.
    Features:
  • Corrosion resistant
  • Hermetically sealed
  • Ground isolated
  • ESD protection
  • Reverse wiring protection
  • Ideal for moderate industrial environments, conveyors and drives
  • Specifications

    Circuit Protection

    • ESD Protection
    • Reverse Wiring Protection

    Electrical Connectors

    • Cable (J9T2A, Two Conductor Shielded, Teflon Jacketed)
    • Mating Connector: R6 Typical
    • Output Connector: 2-Pin, MIL-C-5015 Style

    Enclosure, Body Material

    • 316L Stainless Steel

    Environmental Protection

    • Corrosion-Proof

    Frequency

    • Frequency Response (± 10%): 1 to 5,000 Hz
    • Frequency Response (± 3 dB): 0.7 to 10,000 Hz
    • Resonance Frequency, Mounted, Minimum: 22 kHz

    Mounting

    • M8 Captive Hex Head Screw with 0.046" Diameter Safety Wire Hole

    Noise

    • Electrical Noise, Equivalent G, Nominal (Broadband: 2.5 Hz to 25 kHz): 700 µg
    • Electrical Noise, Equivalent G, Nominal (Spectral: 10 Hz): 10 µg/√Hz
    • Electrical Noise, Equivalent G, Nominal (Spectral: 100 to 1,000 Hz): 5 µg/√Hz

    Non-Linearity

    • Amplitude Non-Linearity: 1%

    Output Impedence

    • Maximum

    Power Requirement

    • 18-30 Vdc
    • Current Regulating Diode: 2-10 mA

    Range

    • Acceleration Range: 80 G Peak

    Seal Type

    • Hermetic

    Sensitivity

    • Base Strain Sensitivity, Maximum
    • Electromagnetic Sensitivity, Equivalent G, Maximum
    • Sensitivity, ± 5%, 25° C (77° F): 100 mV/g
    • Transverse Sensitivity: Maximum

    Shock

    • Shock Limit: 5,000 G

    Temperature Range

    • -50° to 120° C (-58° to 248° F)

    Vibration

    • Vibration Limit: 500 G

    Voltage

    • Bias Output Voltage, Nominal: 12 Vdc
