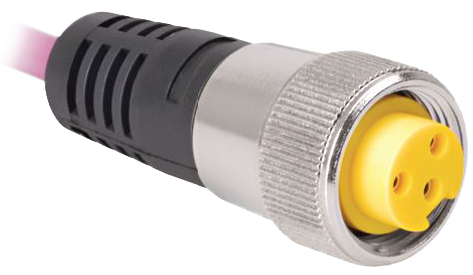

Discrete minifast Single Ended Cordset

Brand: Turck
Features
  • Connector
    • Female or Male
    • Straight or Right Angle
  • Options
    • Cable
      • Shielded Braided
      • PVC Jacket
      • Foil/Drain
    • Connector
      • Nickle Plated Brass
      • Nylon
      • 316 Stainless Steel
show more
Features
  • Connector
    • Female or Male
    • Straight or Right Angle
  • Options
    • Cable
      • Shielded Braided
      • PVC Jacket
      • Foil/Drain
    • Connector
      • Nickle Plated Brass
      • Nylon
      • 316 Stainless Steel
9 models matching criteria
P-RKV 52-972-2M
TURCK minifast Drop Cordset, 5-Pin, Female, 5-Wire Analog/Discrete, PVC/Grey, CSA, 2m, NCNR View More
  • Process Cable:
    • 5-Wire Analog or Discrete
    • Single Connector Drop Cordset
  • Connectors:
    • "minifast" Series
    • Female Single Ended
    • 316 Stainless Steel Housing
    • 5 Contacts, (5)#18 AWG
  • Conductors:
    • (5)#18 AWG
    • 300V, 105C
    • Grey PVC Jacket
  • Length:
    • 2 Meters
  • Temperature Rating:
    • -40°C to +105°C (-40°F to +221°F)
  • Approvals:
    • UL: ITC/PLTC/AWM, 105C, 300V
    • CSA: CMX-OUTDOOR-CMG/AWM, 105C, 300V
2 - 8 weeks
$55.16 USD
$15.53 Shipping
P-RKV 52-972-3M
TURCK minifast Drop Cordset, 5-Pin, Female, 5-Wire Analog/Discrete, PVC/Grey, CSA, 3m, NCNR View More
  • Process Cable:
    • 5-Wire Analog or Discrete
    • Single Connector Drop Cordset
  • Connectors:
    • "minifast" Series
    • Female Single Ended
    • 316 Stainless Steel Housing
    • 5 Contacts, (5)#18 AWG
  • Conductors:
    • (5)#18 AWG
    • 300V, 105C
    • Grey PVC Jacket
  • Length:
    • 3 Meters
  • Temperature Rating:
    • -40°C to +105°C (-40°F to +221°F)
  • Approvals:
    • UL: ITC/PLTC/AWM, 105C, 300V
    • CSA: CMX-OUTDOOR-CMG/AWM, 105C, 300V
2 - 8 weeks
$68.37 USD
$15.53 Shipping
P-RKV 521-196-4M
TURCK minifast Drop Cordset, 5-Pin, Female, PVC/Grey, CSA, 4m, NCNR View More
  • Process Cable:
    • Single Connector Drop Cordset
  • Connectors:
    • "minifast" Series
    • Female Single Ended
    • 316 Stainless Steel Housing
    • 5 Contacts, (4) #18 AWG
  • Conductors:
    • (4)#18 AWG
    • 600V, 90C
    • Grey PVC Jacket
  • Length:
    • 4 Meters
  • Temperature Rating:
    • -40°C to +90°C (-40°F to +194°F)
  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
    • CSA: CIC/TC, 90C, 600V
    • c(UL) C22.2 No 245/1309 Marine Shipboard/IEEE 1580
2 - 8 weeks
$77.70 USD
$15.53 Shipping
P-RKV 52-972-5M
TURCK minifast Drop Cordset, 5-Pin, Female, 5-Wire Analog/Discrete, PVC/Grey, CSA, 5m, NCNR View More
  • Process Cable:
    • 5-Wire Analog or Discrete
    • Single Connector Drop Cordset
  • Connectors:
    • "minifast" Series
    • Female Single Ended
    • 316 Stainless Steel Housing
    • 5 Contacts, (5)#18 AWG
  • Conductors:
    • (5)#18 AWG
    • 300V, 105C
    • Grey PVC Jacket
  • Length:
    • 5 Meters
  • Temperature Rating:
    • -40°C to +105°C (-40°F to +221°F)
  • Approvals:
    • UL: ITC/PLTC/AWM, 105C, 300V
    • CSA: CMX-OUTDOOR-CMG/AWM, 105C, 300V
2 - 8 weeks
$80.80 USD
$15.53 Shipping
P-RKV 60-025-1M
TURCK Discrete minifast Cable, Single-ended, 6-Pin, Female, Armored, PVC/Plum, SST, 1m, NCNR
2 - 8 weeks
$80.80 USD
$15.53 Shipping
P-RKV 521-196-15M
TURCK minifast Drop Cordset, 5-Pin, Female, PVC/Grey, CSA, 15m, NCNR View More
  • Process Cable:
    • Single Connector Drop Cordset
  • Connectors:
    • "minifast" Series
    • Female Single Ended
    • 316 Stainless Steel Housing
    • 5 Contacts, (4) #18 AWG
  • Conductors:
    • (4)#18 AWG
    • 600V, 90C
    • Grey PVC Jacket
  • Length:
    • 15 Meters
  • Temperature Rating:
    • -40°C to +90°C (-40°F to +194°F)
  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
    • CSA: CIC/TC, 90C, 600V
    • c(UL) C22.2 No 245/1309 Marine Shipboard/IEEE 1580
2 - 8 weeks
$172.49 USD
$15.53 Shipping
P-RKV 521-196-20M
TURCK minifast Drop Cordset, 5-Pin, Female, PVC/Grey, CSA, 20m, NCNR View More
  • Process Cable:
    • Single Connector Drop Cordset
  • Connectors:
    • "minifast" Series
    • Female Single Ended
    • 316 Stainless Steel Housing
    • 5 Contacts, (4) #18 AWG
  • Conductors:
    • (4)#18 AWG
    • 600V, 90C
    • Grey PVC Jacket
  • Length:
    • 20 Meters
  • Temperature Rating:
    • -40°C to +90°C (-40°F to +194°F)
  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
    • CSA: CIC/TC, 90C, 600V
    • c(UL) C22.2 No 245/1309 Marine Shipboard/IEEE 1580
2 - 8 weeks
$216.00 USD
$15.53 Shipping
P-RKV 521-196-12M
TURCK minifast Drop Cordset, 5-Pin, Female, PVC/Grey, CSA, 12m, NCNR View More
  • Process Cable:
    • Single Connector Drop Cordset
  • Connectors:
    • "minifast" Series
    • Female Single Ended
    • 316 Stainless Steel Housing
    • 5 Contacts, (4) #18 AWG
  • Conductors:
    • (4)#18 AWG
    • 600V, 90C
    • Grey PVC Jacket
  • Length:
    • 12 Meters
  • Temperature Rating:
    • -40°C to +90°C (-40°F to +194°F)
  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
    • CSA: CIC/TC, 90C, 600V
    • c(UL) C22.2 No 245/1309 Marine Shipboard/IEEE 1580
2 - 8 weeks
P-RKV 521-196-8M
TURCK minifast Drop Cordset, 5-Pin, Female, PVC/Grey, CSA, 8m, NCNR View More
  • Process Cable:
    • Single Connector Drop Cordset
  • Connectors:
    • "minifast" Series
    • Female Single Ended
    • 316 Stainless Steel Housing
    • 5 Contacts, (4) #18 AWG
  • Conductors:
    • (4)#18 AWG
    • 600V, 90C
    • Grey PVC Jacket
  • Length:
    • 8 Meters
  • Temperature Rating:
    • -40°C to +90°C (-40°F to +194°F)
  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
    • CSA: CIC/TC, 90C, 600V
    • c(UL) C22.2 No 245/1309 Marine Shipboard/IEEE 1580
2 - 8 weeks

Specifications

Brand

Approvals & Certifications

  • CSA
  • UL

Connection Material

  • Nickel-Plated Brass
  • Nylon
  • Stainless Steel

Connection Pin-Out

  • 3-Pin
  • 4-Pin

Connection Style

  • minifast

Connector Shape

  • Right Angle
  • Straight

Environmental Protection

  • IP10
  • IP54
  • IP66
  • NEMA 1, 3, 4, 6P / IP10, 54, 66
  • NEMA 3
  • NEMA 4
  • NEMA 6P

Operating Temperature

  • -40° to 105° C (-40° to 221° F)

Version / Leadwires

  • 33-187: 3 x 18 AWG GN, BK, WH, ITC/PLTC PVC
  • 3-Wire
  • 442A-041: 4 x 18 AWG BK, WH, RD, GN, ITC/PLTC PVC Armor
  • 4-Wire
  • 5-Wire
  • 60-025: 5 x 16 AWG BU, BN, GN/YE, WH, BK ITC/PLTC PVC
