611V8000 Series Pressure Switch

Brand: Custom Control Sensors
Request Information
Favorite
Features
  • Adjustable Set Point Range:
    • Increasing: 4-28.5 Inches Hg, 102-724 mm Hg
    • Decreasing: 1.5-26 Inches Hg, 36-660 mm Hg
  • Deadband: 2.5 Inches Hg, 8.0 kPa, 0.08 bar
  • System Pressure (Maximum):150 psig, 1024.21 kPa, 10.3 bar
  • Proof Pressure: 250 psig, 1,723.69 kPa, 17.2 bar
  • Wetted Materials:
    • Pressure Port: 1/4" Male NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna-N
  • Relay: SPDT or DPDT
  • CE Mark
show more
Features
  • Adjustable Set Point Range:
    • Increasing: 4-28.5 Inches Hg, 102-724 mm Hg
    • Decreasing: 1.5-26 Inches Hg, 36-660 mm Hg
  • Deadband: 2.5 Inches Hg, 8.0 kPa, 0.08 bar
  • System Pressure (Maximum):150 psig, 1024.21 kPa, 10.3 bar
  • Proof Pressure: 250 psig, 1,723.69 kPa, 17.2 bar
  • Wetted Materials:
    • Pressure Port: 1/4" Male NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna-N
  • Relay: SPDT or DPDT
  • CE Mark
Close

Displaying prices & availability for United States in USD. Change location or currency

611V8000
CCS DUAL-SNAP Vacuum Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:
    • Increasing: 1.96 to 14.0 psi, 13.5 to 96.5 kPa, 0.14 to 0.97 bar
    • Decreasing: 0.74 to 12.8 psi, 5.10 to 88.3 kPa, 0.05 to 0.88 bar
  • Deadband: 2.5 Inches Hg, 8.0 kPa, 0.08 bar
  • System Pressure (Maximum):150 psig, 1024.21 kPa, 10.3 bar
  • Proof Pressure: 250 psig, 1723.69 kPa, 17.2 bar
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna-N
  • Relay: SPDT or DPDT
  • CE Mark
Contact For Inventory
$473.17 USD
Does not ship to US

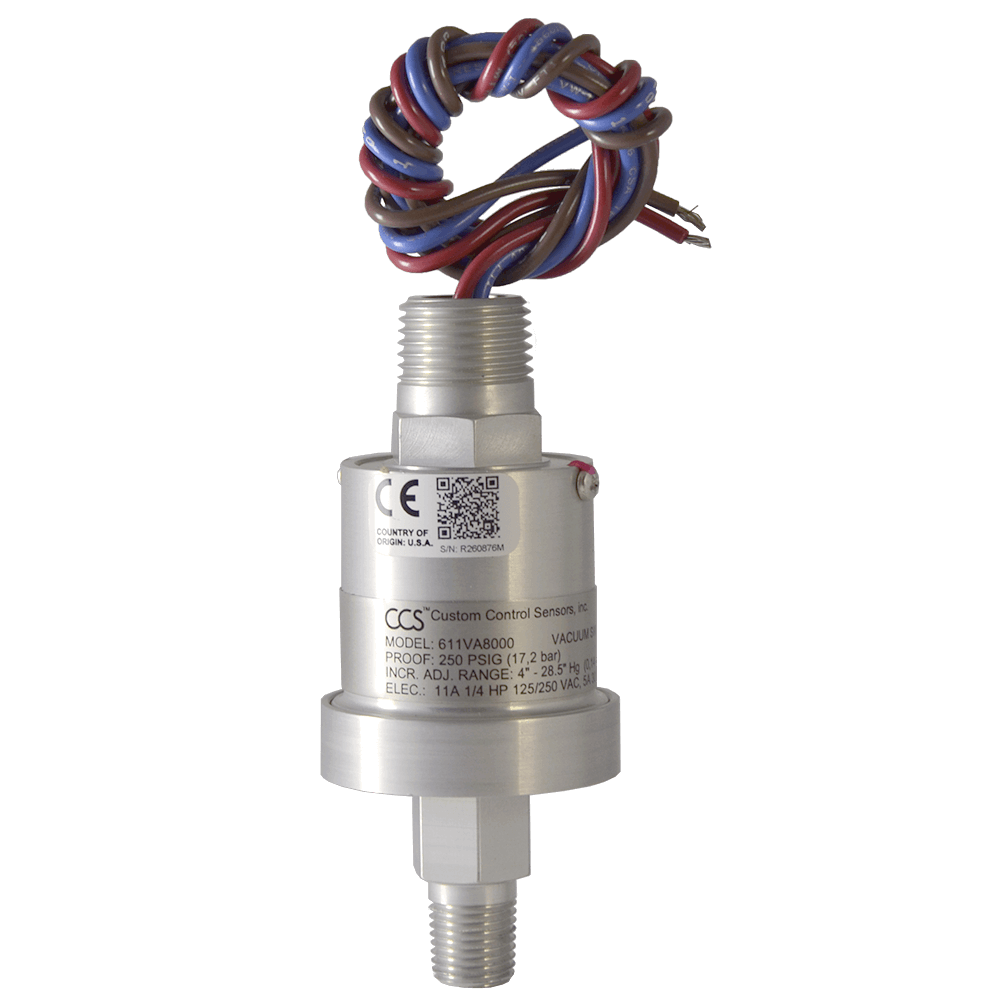

611VA8000

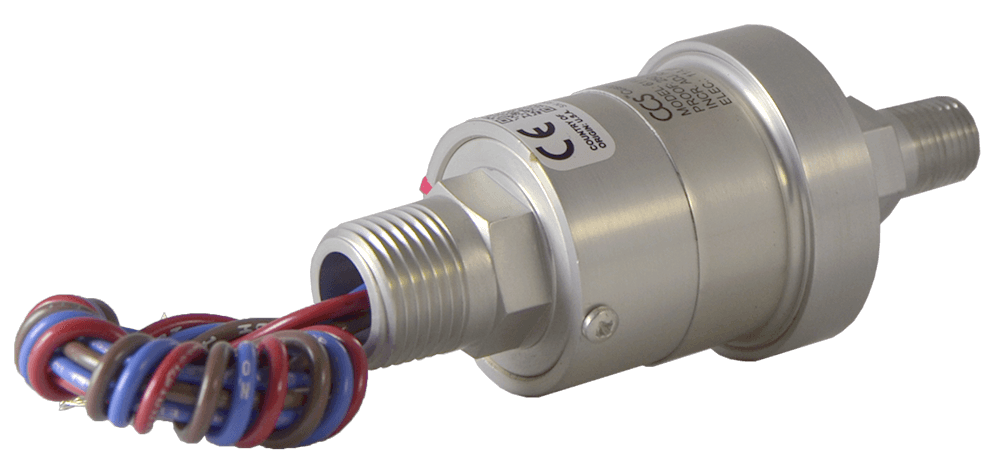

CCS DUAL-SNAP Vacuum Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Viton View More
  • Adjustable Set Point Range:
    • Increasing: 1.96 to 14.0 psi, 13.5 to 96.5 kPa, 0.14 to 0.97 bar
    • Decreasing: 0.74 to 12.8 psi, 5.10 to 88.3 kPa, 0.05 to 0.88 bar
  • Deadband: 2.5 Inches Hg, 8.0 kPa, 0.08 bar
  • System Pressure (Maximum):150 psig, 1024.21 kPa, 10.3 bar
  • Proof Pressure: 250 psig, 1723.69 kPa, 17.2 bar
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Viton
  • Relay: SPDT
  • CE Mark
Contact For Inventory
$640.72 USD
Does not ship to US
611V8000-7075
CCS DUAL-SNAP Vacuum Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N,4-Blade Elect View More
  • Adjustable Set Point Range:
    • Increasing: 1.96 to 14.0 psi, 13.5 to 96.5 kPa, 0.14 to 0.97 bar
    • Decreasing: 0.74 to 12.8 psi, 5.10 to 88.3 kPa, 0.05 to 0.88 bar
  • Deadband: 2.5 Inches Hg, 8.0 kPa, 0.08 bar
  • System Pressure (Maximum):150 psig, 1024.21 kPa, 10.3 bar
  • Proof Pressure: 250 psig, 1723.69 kPa, 17.2 bar
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna-N
  • Relay: SPDT
  • Electrical: 4 Blade Connector, conforms to DIN43650
  • CE Mark
Contact For Inventory
Close
Close

Specifications

Brand

Adjustment Type

  • Factory Set (Pre-Set)
  • Field Adjustable

Approvals & Certifications

  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - Manitoba
  • CRN - N.W. Territories
  • CRN - Saskatchewan
  • EMC
  • LVD
  • PED
  • RoHS

Deadband, Approximate

  • bar: 0.085
  • Inches Hg: 2.5

Diaphragm Material

  • Polyimide

Electrical - Free Leads

  • 18" (45 cm) Free Leads
  • 18" (45 cm) Teflon Leadwire

Electrical Connectors

  • 1/2" NPT Male
  • Electrical Connector with 4-Blades, Conforms to DIN-43650
  • Electrical Connector with Gold Contacts & Blades, Conforms to DIN-43650

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 11 A at 125/250 Vac

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • Hazardous Area
  • IP65
  • IP66
  • NEMA 13
  • NEMA 4, 13 / IP65, 66

NACE & NIST

  • NACE

NPT Connection

  • 1/4" NPT Female

O-Ring Material

  • Buna-N
  • Ethylene Propylene (EPR)
  • Viton

Process Connection Material

  • Aluminum

Proof Pressure

  • bar: 17.24
  • kPa: 1,724
  • psig: 250

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • Inches Hg: -1.5 to 26
  • mm Hg: -38 to 660

Set Point - Increasing

  • Inches Hg: -4 to 28.5
  • mm Hg: -102 to 724

Standard Features

  • Weatherproof

Switch Type

  • DPDT
  • SPDT

System Pressure

  • bar: 10.3
  • kPa: 1,034
  • psig: 150
