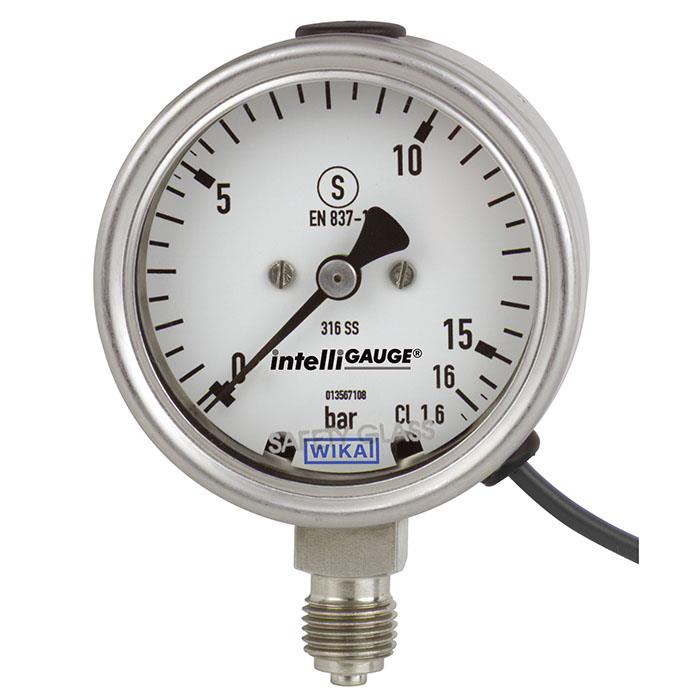

Bourdon Tube Pressure Gauge with Output Signal - PGT23.063

Brand: WIKA Instruments Ltd.
For the process industry, safety version, NS 63.
Features
  • No configuration necessary due to "plug-and-play".
  • Measuring ranges from 0 ... 1 bar to 0 ... 1,000 bar.
  • Easy-to-read Analog display with nominal size 63.
  • Safety pressure gauge S3 per EN 837-1.
show more
For the process industry, safety version, NS 63.
Features
  • No configuration necessary due to "plug-and-play".
  • Measuring ranges from 0 ... 1 bar to 0 ... 1,000 bar.
  • Easy-to-read Analog display with nominal size 63.
  • Safety pressure gauge S3 per EN 837-1.

Specifications

Certifications & Approvals

  • CE
  • Uzstandard
  • BelGIM
  • MTSCHS
  • GOST
  • CRN
  • EAC

Environmental Protection

  • IP54

Output Signal

  • 4-20 mA

Dial Material

  • Aluminium, white, black lettering

Case Material

  • Stainless steel

Window Material

  • Laminated safety glass
  • Polycarbonate

Pressure Element

  • Stainless steel 316L

Process Connection

  • G ¼" B Male

Process Connection Material

  • Stainless steel 316L

Scale Range

  • -1 to 1,000 bar;

Accuracy

  • ≤ 1.6% of measuring span

Nominal Size

  • 63 mm
