3101-3104 & 3106-3109 Slide Valve

Brand: Bifold Group
Slide valves Type 3101/3102 (normally closed) and 3106/3107 (normally open) are manifold mounted with integral pilot connection; the 3103/4 (normally closed) and 3108/3109 (normally open) are manifold mounted with remote pilot connection. A major feature of the valve design is elimination of the continuous internal leakage which is characteristic of conventional lapped-face spool valves. The valves each incorporate special high pressure seals which prevent leakage and so render the valves suitable for use with many fluid media.
Features
  • Working Pressure: 690 bar (10,000 psi) maximum
  • Pilot Pressure - Type 3101/3103/3106/3108: 103 to 690 bar (1,500 to 10,000 psi)
  • Pilot Pressure - Type 3102/3104/3107/3108: 69 to 207 bar (1,000 to 3,000 psi)
  • Operating Media: Mineral oils, water, water-glycol based hydraulic fluid
  • Recommended Filtration: 25 micron
  • Connections: 1/4" NPTF all ports
  • Flow Rate, Nominal: 27 litres/min (6 imp galls/min)
  • Working Temperature: -20º to 130º C (-4° to 2666 F)
show more

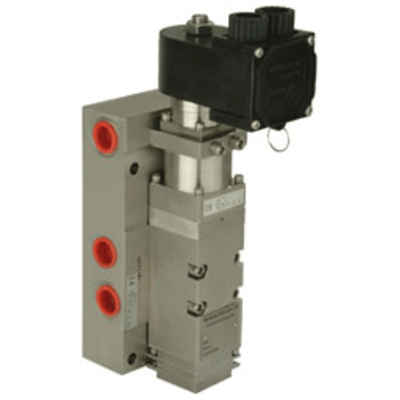

Images are representations only.
Slide valves Type 3101/3102 (normally closed) and 3106/3107 (normally open) are manifold mounted with integral pilot connection; the 3103/4 (normally closed) and 3108/3109 (normally open) are manifold mounted with remote pilot connection. A major feature of the valve design is elimination of the continuous internal leakage which is characteristic of conventional lapped-face spool valves. The valves each incorporate special high pressure seals which prevent leakage and so render the valves suitable for use with many fluid media.
Features
  • Working Pressure: 690 bar (10,000 psi) maximum
  • Pilot Pressure - Type 3101/3103/3106/3108: 103 to 690 bar (1,500 to 10,000 psi)
  • Pilot Pressure - Type 3102/3104/3107/3108: 69 to 207 bar (1,000 to 3,000 psi)
  • Operating Media: Mineral oils, water, water-glycol based hydraulic fluid
  • Recommended Filtration: 25 micron
  • Connections: 1/4" NPTF all ports
  • Flow Rate, Nominal: 27 litres/min (6 imp galls/min)
  • Working Temperature: -20º to 130º C (-4° to 2666 F)

Specifications

Brand

NACE & NIST

  • NACE MR-01-75

NPT Connection

  • 1/4" NPT Female
