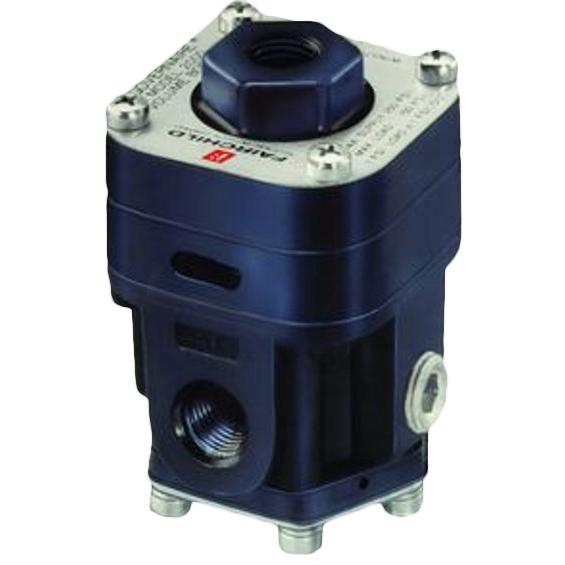

Model 2000 Pneumatic Volume Booster

Brand: Fairchild Industrial Products
The Rotork Fairchild Model 2000 Pneumatic Volume Booster converts a low flow signal to a high flow output. It is ideally suited for a variety of applications including the operation of air systems that require rapid valve or cylinder action.

With its balanced supply valve and aspirator tube, the M2000 booster will maintain set point while delivering a strong boost of volume. In addition, its no bleed soft seat design minimizes air consumption of the system.

As a pilot operated regulator design, the M2000 handles up to 250 psig [17.0 BAR], (1700 kPa) supply pressure. The M2000 provides a flow capacity of 40 SCFM (68 m3/HR), which results in a Cv factor of just less than 1.0 in forward flow mode.
Features
  • Flow capacity of 40 SCFM (68 m3/HR)
  • Balanced Supply Valve
  • Aspirator Tube design
  • Soft Supply and Exhaust Valve Seats
  • Small signal volume
  • A separate Control Chamber isolates the Diaphragm from the main flow
  • Unit construction
show more
Images are representations only.
The Rotork Fairchild Model 2000 Pneumatic Volume Booster converts a low flow signal to a high flow output. It is ideally suited for a variety of applications including the operation of air systems that require rapid valve or cylinder action.

With its balanced supply valve and aspirator tube, the M2000 booster will maintain set point while delivering a strong boost of volume. In addition, its no bleed soft seat design minimizes air consumption of the system.

As a pilot operated regulator design, the M2000 handles up to 250 psig [17.0 BAR], (1700 kPa) supply pressure. The M2000 provides a flow capacity of 40 SCFM (68 m3/HR), which results in a Cv factor of just less than 1.0 in forward flow mode.
Features
  • Flow capacity of 40 SCFM (68 m3/HR)
  • Balanced Supply Valve
  • Aspirator Tube design
  • Soft Supply and Exhaust Valve Seats
  • Small signal volume
  • A separate Control Chamber isolates the Diaphragm from the main flow
  • Unit construction
2002
FAIRCHILD Model 2000 Volume Booster, 1/4" NPT, 1:1.6 Ratio
Out of Stock
2012
FAIRCHILD Model 2000 Volume Booster, 1/4" NPT, 1:1 Ratio
Out of Stock
2013
FAIRCHILD Model 2000 Volume Booster, 3/8" NPT, 1:1 Ratio
Out of Stock

Model 2000

Ratio

Port Size

Port Thread

Specifications

Ambient Temperature Range

  • -40° to 93° C (-40° to 200° F)

BSP Connection

  • 1/4" BSPT Female
  • 3/8" BSPT Female

Diaphragm Material

  • Nitrile on Dacron

Enclosure, Body Material

  • Zinc

Exhaust Capacity - Relieving Units Only

  • 16 scfm (27.2 m³/hour)

Flow Capacity

  • 40 scfm (68 m³/hour)

NPT Connection

  • 1/4" NPT Female
  • 3/8" NPT Female

Ratio

  • 0.042361111111
  • 0.042430555556

Sensitivity

  • < 1" WC (2.54 cm)

Signal or Output Pressure - Maximum

  • bar: 10
  • kPa: 1,000
  • psig: 150

Supply Pressure - Maximum

  • bar: 17
  • kPa: 1,700
  • psig: 250

Supply Pressure Effect

  • psig: 0.1 (bar: 0.007, kPa: 0.7) for a psig: 100 (bar: 7, kPa: 700) Change in Supply Pressure
