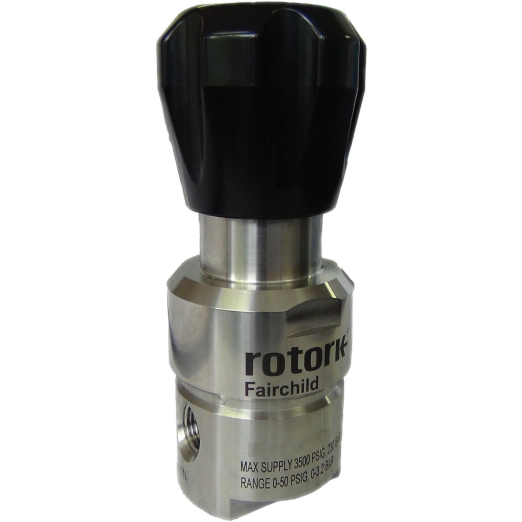

Model HPD High Pressure Regulator

Brand: Fairchild Industrial Products
Request Information
Favorite
The Rotork Fairchild HPD is a High Pressure Regulator designed for applications that have high supply pressures and require a much lower output pressure.

The HPD pressure regulator is constructed of rugged 316L Stainless Steel for corrosion resistance and durability. The HPD is available in a 2 or 4 port configuration.

The Rotork Fairchild HPD pressure regulator will handle a 6,000 psi, 414 BAR, maximum supply pressure and offers five (5) output pressure ranges from 0-25 psi, 0-1.7 BAR, 0-170 kPa, up to 5-500 psi, 0.35-35 BAR, 35-3,500 kPa.

The HPD high pressure regulator also offers a supply valve Cv of 0.06. The HPD high pressure regulator also offers a supply valve Cv of 0.06.

The Rotork Fairchild HPD incorporates a new patented valve and valve seat to prevent leakage, which commonly occurs with high supply pressures.
Features
  • High Supply Pressure of 6000 psig
  • Standard X-750 Inconel Diaphragm
  • Three Seat Material Choices (PEEK, CTFE, Vespel)
  • Tamper Proof Option
  • Five Pressure Ranges Available
  • Ambient Temperature range of -40° to 500° F
  • Panel Mounting Option
show more
The Rotork Fairchild HPD is a High Pressure Regulator designed for applications that have high supply pressures and require a much lower output pressure.

The HPD pressure regulator is constructed of rugged 316L Stainless Steel for corrosion resistance and durability. The HPD is available in a 2 or 4 port configuration.

The Rotork Fairchild HPD pressure regulator will handle a 6,000 psi, 414 BAR, maximum supply pressure and offers five (5) output pressure ranges from 0-25 psi, 0-1.7 BAR, 0-170 kPa, up to 5-500 psi, 0.35-35 BAR, 35-3,500 kPa.

The HPD high pressure regulator also offers a supply valve Cv of 0.06. The HPD high pressure regulator also offers a supply valve Cv of 0.06.

The Rotork Fairchild HPD incorporates a new patented valve and valve seat to prevent leakage, which commonly occurs with high supply pressures.
Features
  • High Supply Pressure of 6000 psig
  • Standard X-750 Inconel Diaphragm
  • Three Seat Material Choices (PEEK, CTFE, Vespel)
  • Tamper Proof Option
  • Five Pressure Ranges Available
  • Ambient Temperature range of -40° to 500° F
  • Panel Mounting Option
Close

Displaying prices & availability for United States in USD. Change location or currency

39 models matching criteria
HPD152NASTKRNS
FAIRCHILD Model HPD Regulator, 1-100 psig, 1/4" FNPT, 2-Port, CTFE, Straight Exhaust Vent View More
  • HPD: High Pressure Precision Regulator
  • 1: Supply Valve Cv: 0.06
  • 5: Supply Pressure: 1-100 psig
  • 2: Port Size: 1/4"
  • N: Port Thread: NPTF
  • A: Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • S: Body Material: 316 SST
  • T: Seat Material: CTFE
  • K: Actuator: Knob
  • R: Relief: Relieving
  • N: Mounting: None
  • S: Exhaust Vent: Straight
  • Maximum Supply Pressure: 3500 psig, 241 bar
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel
6 - 8 weeks
$608.00 USD
$15.56 Shipping
HPD152NASPTNNS
FAIRCHILD Model HPD Regulator, 1-100 psig, 1/4" FNPT, 2-Port, PEEK, Tamper Proof, Non-Relieving View More
  • HPD: High Pressure Precision Regulator
  • 1: Supply Valve Cv: 0.06
  • 5: Supply Pressure: 1-100 psig
  • 2: Port Size: 1/4"
  • N: Port Thread: NPTF
  • A: Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • S: Body Material: 316 SST
  • P: Seat Material: PEEK
  • T: Actuator: Tamper Proof
  • N: Relief: Non-Relieving
  • N: Mounting: None
  • S: Exhaust Vent: Straight
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel
6 - 8 weeks
$646.14 USD
$15.56 Shipping
HPD172NASPTNNS
FAIRCHILD Model HPD Regulator, 2-250 psig, 1/4" FNPT, 2-Port, PEEK, Tamper Proof, Non Relieving View More
  • HPD: High Pressure Precision Regulator
  • 1: Supply Valve Cv: 0.06
  • 7: Supply Pressure: 2-250 psig
  • 2: Port Size: 1/4"
  • N: Port Thread: NPTF
  • A: Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • S: Body Material: 316 SST
  • P: Seat Material: PEEK
  • T: Actuator: Tamper Proof
  • N: Relief: Non-Relieving
  • N: Mounting: None
  • S: Exhaust Vent: Straight
  • Maximum Supply Pressure: 6000 psig, 414 bar
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel
6 - 8 weeks
$646.14 USD
$15.56 Shipping
HPD172NASTKNPS
FAIRCHILD Model HPD Regulator, 2-250 psig, 1/4" FNPT, 2-Port, CTFE, Panel Mount View More
  • HPD: High Pressure Precision Regulator
  • 1: Supply Valve Cv: 0.06
  • 7: Supply Pressure: 2-250 psig
  • 2: Port Size: 1/4"
  • N: Port Thread: NPTF
  • A: Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • S: Body Material: 316 SST
  • T: Seat Material: CTFE
  • K: Actuator: Knob
  • N: Relief: Non-Relieving
  • P: Mounting: Panel
  • S: Exhaust Vent: Straight
  • Maximum Supply Pressure: 6000 psig, 414 bar
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
    • ​*Consult seat material chart for maximum temperature
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel
6 - 8 weeks
$682.73 USD
$15.56 Shipping
HPD192NASTKRNE
FAIRCHILD Model HPD Regulator, 5-500 psig, 1/4" FNPT, 2-Port, CTFE, Tapped Exhaust View More
  • HPD: High Pressure Precision Regulator
  • 1: Supply Valve Cv: 0.06
  • 9: Supply Pressure: 5-500 psig
  • 2: Port Size: 1/4"
  • N: Port Thread: NPTF
  • A: Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • S: Body Material: 316 SST
  • T: Seat Material: CTFE
  • K: Actuator: Knob
  • R: Relief: Relieving
  • N: Mounting: None
  • E: Exhaust: Tapped
  • Maximum Supply Pressure: 3500psig, 241 bar
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel
6 - 8 weeks
$696.74 USD
$15.56 Shipping
HPD142NASPKRPS
FAIRCHILD Model HPD Regulator, 0-50 psig, 1/4" FNPT, 2-Port, PEEK, Panel Mount, Straight Exhaust View More
  • HPD: High Pressure Precision Regulator
  • 1: Supply Valve Cv: 0.06
  • 4: Supply Pressure: 0-50 psig
  • 2: Port Size: 1/4"
  • N: Port Thread: NPTF
  • A: Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • S: Body Material: 316 SST
  • P: Seat Material: PEEK
  • K: Actuator: Knob
  • R: Relief: Relieving
  • P: Mounting: Panel
  • S: Exhaust: Straight
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel
10 - 12 weeks
$720.88 USD
$15.56 Shipping
HPD152NASPKRPS
FAIRCHILD Model HPD Regulator, 1-100 psig, 1/4" FNPT, 2-Port, PEEK, Panel Mount, Straight Exhaust View More
  • HPD: High Pressure Precision Regulator
  • 1: Supply Valve Cv: 0.06
  • 5: Supply Pressure: 1-100 psig
  • 2: Port Size: 1/4"
  • N: Port Thread: NPTF
  • A: Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • S: Body Material: 316 SST
  • P: Seat Material: PEEK
  • K: Actuator: Knob
  • R: Relief: Relieving
  • P: Mounting: Panel
  • S: Exhaust: Straight
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel
10 - 12 weeks
$720.88 USD
$15.56 Shipping
HPD142NASVKRPE
FAIRCHILD Model HPD Regulator, 0-50 psig, 1/4" FNPT, 2-Port, Vespal, Knob, Relieving, Panel, Tapped View More
  • HPD: High Pressure Precision Regulator
  • 1: Supply Valve Cv: 0.06
  • 4: Supply Pressure: 0-50 psig
  • 2: Port Size: 1/4"
  • N: Port Thread: NPTF
  • A: Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • S: Body Material: 316 SST
  • V: Seat Material: Vespal
  • K: Actuator: Knob
  • R: Relief: Relieving
  • P: Mounting: Panel
  • E: Exhaust: Tapped
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel
6 - 8 weeks
$859.45 USD
$15.56 Shipping
HPD192NASVKRPE
FAIRCHILD Model HPD Regulator, 5-500 psig, 1/4" FNPT, 2-Port, Vespal, Knob, Relieving, Panel, Tapped View More
  • HPD: High Pressure Precision Regulator
  • 1: Supply Valve Cv: 0.06
  • 9: Supply Pressure: 5-500 psig
  • 2: Port Size: 1/4"
  • N: Port Thread: NPTF
  • A: Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • S: Body Material: 316 SST
  • V: Seat Material: Vespal
  • K: Actuator: Knob
  • R: Relief: Relieving
  • P: Mounting: Panel
  • E: Exhaust: Tapped
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel
6 - 8 weeks
$859.45 USD
$15.56 Shipping
HPD142NASPKRP
FAIRCHILD Model HPD Regulator, 0-50 psig, 1/4" FNPT, 2-Port, PEEK, Panel Mount View More
  • HPD: High Pressure Precision Regulator
  • 1: Supply Valve Cv: 0.06
  • 4: Supply Pressure: 0-50 psig
  • 2: Port Size: 1/4"
  • N: Port Thread: NPTF
  • A: Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • S: Body Material: 316 SST
  • P: Seat Material: PEEK
  • K: Actuator: Knob
  • R: Relief: Relieving
  • P: Mounting: Panel
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel
6 - 8 weeks
Show More Models (28)
Close
Close

Specifications

Brand

Actuator Type

  • Knob Adjust
  • Tamper-Proof

Ambient Temperature Range

  • -40° to 260° C (-40° to 500° F)

BSP Connection

  • 1/4" BSPT Female

Elastomers

  • Inconel®

Enclosure, Body Material

  • 316L Stainless Steel

Exhaust Capacity - Relieving Units Only

  • 0.02 Cv
  • 5.5 scfm
  • 5.5 scfm (9.35 m³/hour)
  • 9.4 m³/hour

Flow Capacity

  • 0.06 Cv

Media

  • Compressed Air
  • Gas

Mounting

  • None
  • Panel Mount

NPT Connection

  • 1/4" NPT Female

Pressure Range

  • bar: 0 to 34.47
  • kPa: 0 to 3,447
  • psig: 0 to 500

Relief

  • Non-Relieving
  • Relieving

Seat / Seal Material

  • CTFE
  • PEEK®
  • Vespel

Supply Pressure - Maximum

  • bar: 414
  • kPa: 41,368
  • psig: 6,000

Supply Pressure Effect

  • less than 0.137 bar
  • less than psi: 1.99 (bar: 0.14, kPa: 13.7)
  • less than psig: 2 (bar: 0.137, kPa: 13.7) Change for psig: 100 (bar: 7.0, kPa: 700) Change in Supply Pressure
  • less than psig: 2 (bar: 0.14, kPa: 14)

Trim Material

  • 316L Stainless Steel
