Description

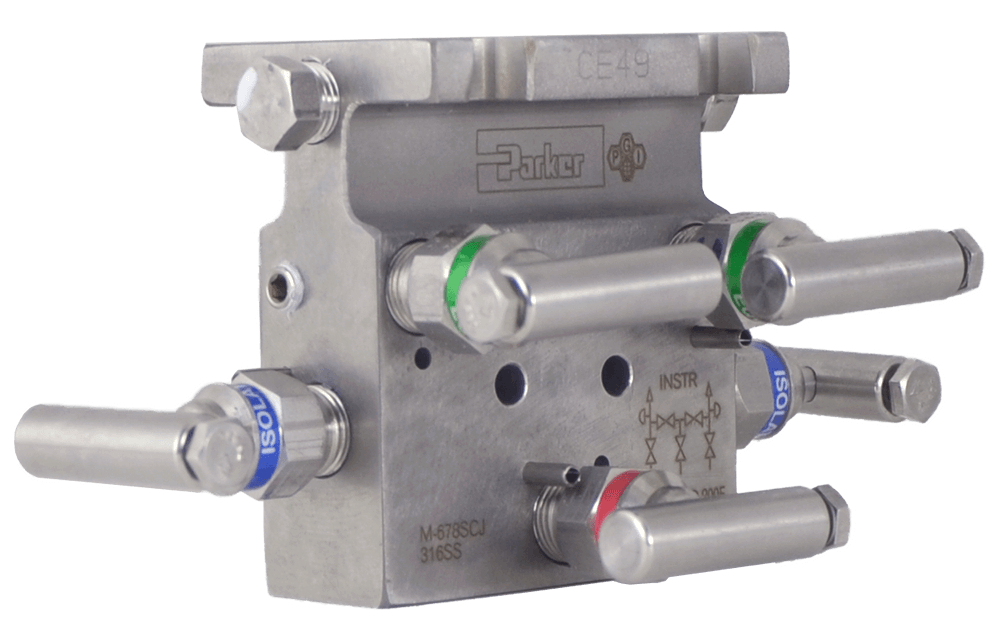

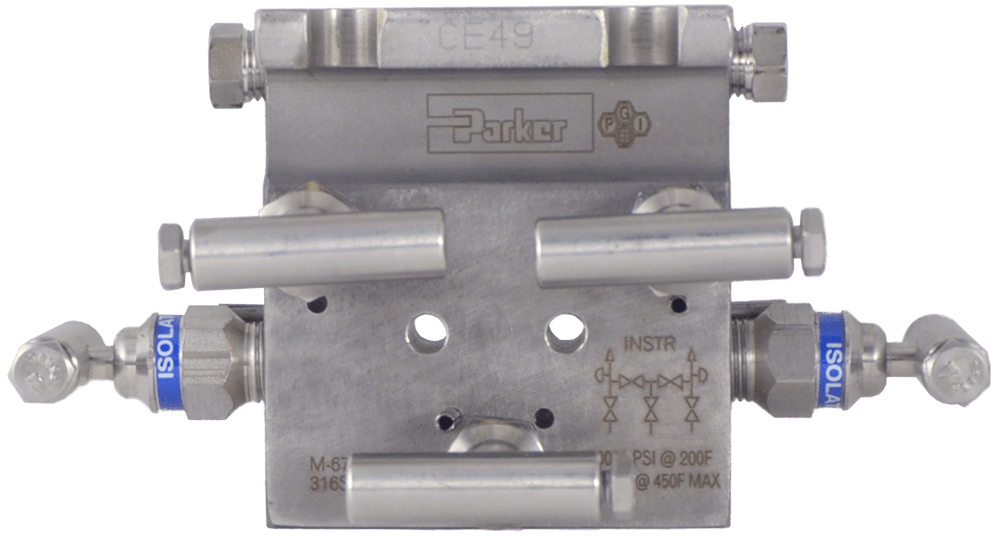

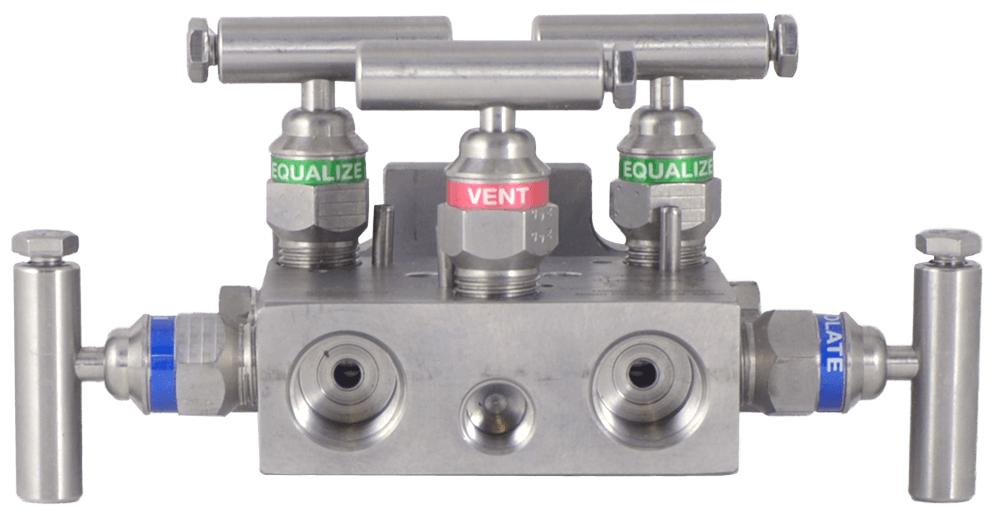

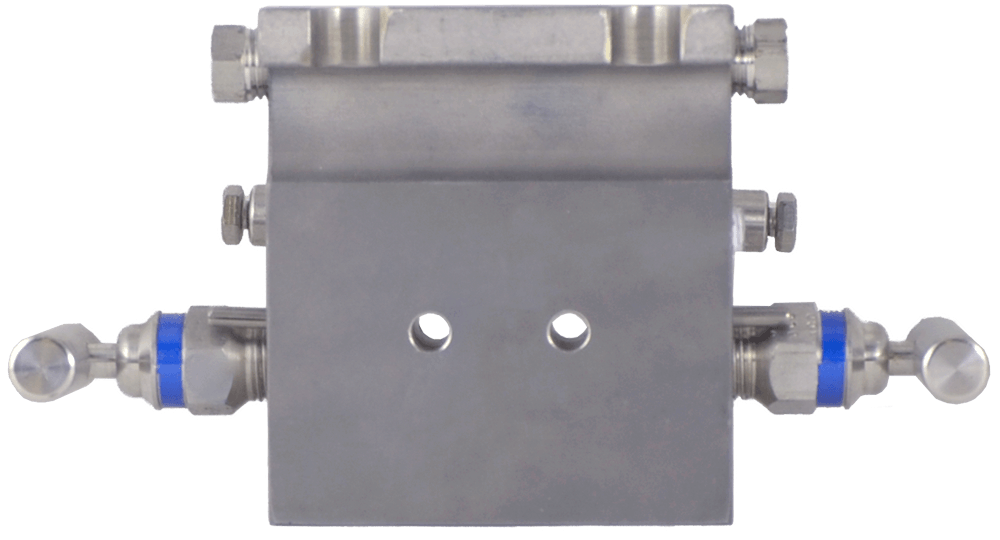

- Design: Hard Seat Five-Valve Wide Pattern Manifold
- Inlet (Process) Connection: 1/2" NPT Female
- Outlet (Instrument) Connection: Flanged
- Test Ports: 1/4" NPT
- Standard Features:
- Carbide Ball Seat
- Teflon Pressure-Core Stem Seal for Low Temperatures or Low Torque Grafoil
- Max Pressure 6000 psi @ +200°F (+93°C)
- Stainless Steel Body and Bonnet
- 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
- Benefits:
- Unique configuration for "no finger pinching" operation of all five valves
- Non-rotating ball eliminates seat galling and ball creasing
- Leak free, bubble tight seating
Inventory
5 models matching criteria
M-678-SCG
PGI 5-Valve Manifold, SST, 1/2" NPT x 1/2" NPT, 0.187 Orifice, Carbide Ball, Grafoil Core, NACE
Out of Stock
M-678-SCJ
PGI 5-Valve Manifold, SST, 1/2" NPT x 1/2" NPT, 0.187 Orifice, Carbide Ball, Teflon Core, NACE
Out of Stock
M-678-SCJ-M7
PGI 5-Valve Manifold, SST, 1/2" NPT x 1/2" NPT, 0.187 Orifice, Carbide Ball, Teflon Core, NACE
Out of Stock
M-778-SCG
PGI 5-Valve Wide Pattern Manifold, Flange x Flange, Hard Seat, SST, Carbide Ball, Grafoil Seat
Out of Stock
M-778-SCT
PGI 5-Valve Wide Pattern Manifold, Flange x Flange x 1/4", SST, Carbide Ball, PTFE Seat
Out of Stock
Configure
M-678
Inlet (Process) Connection Size

Outlet (Instrument) Connection Size

Body and Bonnet Material

Seat Material

Stem Packing Material

Options
Specifications
Specifications
Brand
Enclosure, Body Material
- ASTM A479-316 Stainless Steel
Handle Assembly Material
- ASTM A581 18-8 300 Stainless Steel
Maximum Cv Ratings
- Cv 0.53 on 0.187" Orifice
NACE & NIST
- NACE MR-0175, ISO 15156-36
NPT Inlet
- 1/2" NPT Female
Orifice Size
- 0.187"
Packing Material
- Low-Torque Grafoil®
- Teflon
- Teflon Pressure-Core® Stem Seal for Low Temperatures -45.5° C (-50° F)
Pressure Rating
- psi: 10,000 at 93° C (200° F)
- psi: 8,000 at 232° C (450° F)
Process Temperature
- -45° to 232° C (-50° to 450° F)
Seal Retainer
- ASTM A479-316 Stainless Steel
Seat/Seal Material
- Carbide
Stem Material
- ASTM A479-316 Stainless Steel
Valves
- Five
