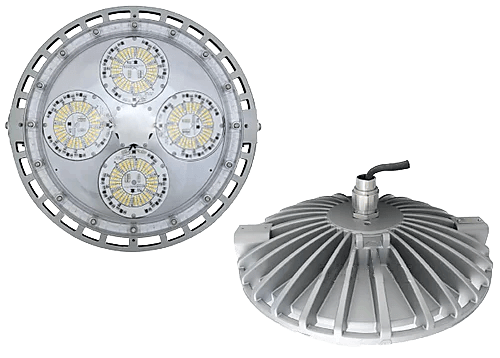

L1512 (Circle SMD) Hazardous Location High Bay Light

Brand: Top Hi-Tech Inc.
Request Information
Favorite
Up to 85℃ Heat Resistant

  • cULus Approved for Canada & US
  • CSA C22.2 (No.137-M1981), (No. 250.0), (No. 250.13)
  • UL844, UL1598, UL8750
  • Class I, Division 2, Group A, B, C, D
  • Class II, Division 2, Group F, G
  • Class III
  • IP rating IP67 (NEMA 6)
Features
  • Model No.：L1512 (SMD)
  • Suitable for various Hazardous Locations
  • LED Lighting provides 2 million times power cycle
  • High corrosion resistance
  • Small volume and light weight
  • Easy installation and maintenance
  • Higher wattage up to 275W
  • Long lifespan
show more
Up to 85℃ Heat Resistant

  • cULus Approved for Canada & US
  • CSA C22.2 (No.137-M1981), (No. 250.0), (No. 250.13)
  • UL844, UL1598, UL8750
  • Class I, Division 2, Group A, B, C, D
  • Class II, Division 2, Group F, G
  • Class III
  • IP rating IP67 (NEMA 6)
Features
  • Model No.：L1512 (SMD)
  • Suitable for various Hazardous Locations
  • LED Lighting provides 2 million times power cycle
  • High corrosion resistance
  • Small volume and light weight
  • Easy installation and maintenance
  • Higher wattage up to 275W
  • Long lifespan
Close

Specifications

Brand

Rated Voltage (±10%)

  • 120V / 277V AC

Watts (±10%)

  • 140W / 160W / 180W / 200W / 220W / 240W

Amps

  • 240W:  120V: 2.00A,208V: 1.15A, 277V: 0.87A, 347V: 0.69A, 480V: 0.50A
  • 220W:  120V: 1.83A, 208V: 1.06A, 277V: 0.79A, 347V: 0.63A, 480V: 0.46A
  • 200W:  120V: 1.67A, 208V: 0.96A, 277V: 0.72A, 347V: 0.58A, 480V: 0.42A
  • 180W:  120V: 1.50A, 208V: 0.87A, 277V: 0.65A, 347V: 0.52A, 480V: 0.38A
  • 160W:  120V: 1.33A, 208V: 0.77A, 277V: 0.58A, 347V: 0.46A, 480V: 0.33A
  • 140W:  120V: 1.17A, 208V: 0.67A, 277V: 0.51A, 347V: 0.40A, 480V: 0.29A

Color of LED Light

  • 5000K (Cool White)
  • 3000K (Warm White)

Ambient Temperature

  • -20°C ~ +40°C, T3A

Power Factor

  • cos≧0.9

CRI

  • Warm White≧80
  • Cool White≧70

Lumen (± 10%)

  • 5000K: 140W: 16259lm, 160W: 18325lm, 180W: 20005lm, 200W: 22413lm, 220W: 24699lm, 240W: 26973lm
  • 3000K: 140W: 14841lm, 160W: 16508lm, 180W: 18830lm, 200W:211160lm, 220W: 23573lm, 240W: 25801lm

Beam Angle

  • X-110° / Y-110°

Frequency

  • 50 / 60 Hz

Degree of Protection

  • IP67 / NEMA 6

Material

  • Cover: Clear or Diffuser PC Cover
  • Enclosure: Aluminum Alloy

LED Service Life

  • 60,000hrs

Entrance Thread

  • 1 x NPT 3/4"
