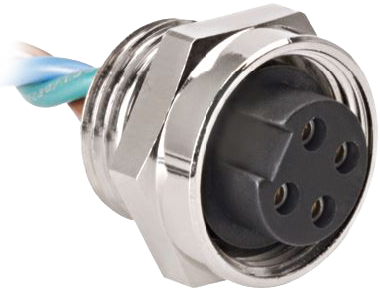

Images are representations only.
Description
Features
- Analog Communication
- Threads (Male or Female):
- 1/2"-14 NPSM
- 1/2"-14 NPT
- 3/4"-14 NPT
- 1/2"-14 NPT (B-Size and C-Size)
- Housing Material:
- Nickel Plated Brass
- Stainless Steel
- Nylon
Inventory
Displaying prices & availability for United States in USD. Change location or currency
61 models matching criteria
RSF 20-0.3M/NPT
TURCK minifast Receptacle, Front Mount, 2-Pin, 1/2"-14 NPT, 0.3m, NCNR
View More
- Process Receptacle:
- 2-Wire Standard Duty
- 1/2"-14 NPT Threads
- Connector:
- "minifast" Series
- Male Single Ended
- Nickel Plated Brass Connector
- 2 Contacts / 2 x #18 AWG Wires (BN, BU)
- Wires:
- (2) x # 18 AWG
- Length of Leads:
- 0.3 Meter
- Temperature Range: -40°C to +80°C (-40°F to +176°F)
- Protection Class:
- IEC67, NEMA 1,3,4,6P
14 - 16 weeks
$13.16USD
$19.00 Shipping
RKF 35-0.5M/NPT
TURCK minifast Receptacle, Front Mount, Female, 3-Pin, 1/2"-14 NPT, 0.5m, NCNR
View More
- R: Minifast "C" Series Receptacle
- K: Female Connector, Female Threads
- F: Designator for Receptacle
- 35: 3 x 16 AWG GN,RD/BK,RD/WH
- 0.5M: Length in Meters
- /NPT: 1/2"-14 NPT threads
- Temperature Range: -30°C to +80°C (-22°F to +176°F)
- Protection Class:
- IEC67, NEMA 1,3,4,6P
2 - 8 weeks
$15.35USD
$19.00 Shipping
RSF 30-0.2M/NPT
TURCK minifast Receptacle, Front Mount, 3-Pin, 1/2"-14 NPSM, 0.2m, NCNR
2 - 8 weeks
Non-Cancellable / Non-Refundable
$15.35USD
$19.00 Shipping
RSF 35-0.2M/NPT
TURCK minifast Receptacle, Front Mount, 3-Pin, 1/2"-14 NPT, 0.2m, NCNR
View More
- 3-Wire Cordset, Front Mount, Male
- Length: 0.2 Meters
- Contact Carrier: TPU/Yellow
- Contact: Gold Plated Brass
- Housing: Zinc Alloy, Nickel
- Rating: 10.0 A, 600 V
- Conductors: 3x16 AWG Automotive Color Code
- Temperature Range: -50°C to +80°C, -58°F to +176°F
- NEMA 1,3,4,6P, IEC IP67
4 - 8 weeks
$15.35USD
$19.00 Shipping
RKF 31-1M/NPT
TURCK minifast Receptacle, Front Mount, Female, 3-Pin, 1/2"-14 NPT, 1m, NCNR
View More
- R: Minifast "C" Series Receptacle
- K: Female Connector, Female Threads
- F: Designator for Receptacle
- 31: 3x18 AWG BK,BN,BU
- 1M: Length in Meters
- /NPT: 1/2"-14 NPT threads
- Temperature Range: -40°C to +105°C (-40°F to +221°F)
- Protection Class:
- IEC67, NEMA 1,3,4,6P
2 - 8 weeks
$16.08USD
$19.00 Shipping
RSF 31-1M/NPT
TURCK minifast Receptacle, Front Mount, Male, 3-Pin, 1/2"-14 NPT, 1m, NCNR
View More
- Process Receptacle:
- 3-Wire Standard Duty
- 1/2"-14 NPT Threads
- Connector:
- "minifast" Series
- Male Single Ended
- Nickel Plated Brass Connector
- 3 Contacts / 3 x #18 AWG Wires
- Wires:
- (3) x # 18 AWG
- Length of Leads:
- 1 Meter
- Temperature Range: -40°C to +105°C (-40°F to +221°F)
- Protection Class:
- IEC67, NEMA 1,3,4,6P
2 - 8 weeks
$16.08USD
$19.00 Shipping
RSF 36-1M
TURCK minifast Receptacle, Front Mount, 3-Pin, Heavy Duty, 1/2"-14 NPT, 1m, NCNR
Out of Stock
$16.08USD
$19.00 Shipping
RKF 40-0.3M
TURCK minifast Receptacle, Front Mount, 4-Pin, 1/2"-14 NPSM, 0.3m, NCNR
View More
- R: Minifast Receptacle, Front Mount
- K: Female Connector, Female Threads
- F: Designator for Receptacle
- 40: 4 x 18 AWG BN,WH,BU,BK
- 0.3M: Length in Meters
- 1/2"-14 NPSM threads
- Temperature Range: -40°C to +105°C (-40°F to +221°F)
- Protection Class:
- IEC67, NEMA 1,3,4,6P
2 - 8 weeks
$18.27USD
$19.00 Shipping
RKF 40-0.2M
TURCK minifast Receptacle, Front Mount, 4-Pin, 1/2"-14 NPT, 0.2m, NCNR
View More
- R: Minifast Receptacle, Front Mount
- K: Female Connector, Female Threads
- F: Designator for Receptacle
- 40: 4 x #18 AWG Wires
- 0.2M: Length in Meters
- 1/2"-14 NPT threads
- Temperature Range: -40°C to +105°C (-40°F to +221°F)
- Protection Class:
- IEC67, NEMA 1,3,4,6P
3 - 5 weeks
Non-Cancellable / Non-Refundable
$18.27USD
$19.00 Shipping
RSF 46-1M/NPT
TURCK minifast Receptacle, Front Mount, 4-Pin, Heavy Duty, 1/2"-14 NPSM, 1m, NCNR
View More
Front Mount, 4-pin, Heavy Duty, 1/2"-14NPSM, 1m, NCNR
2 - 8 weeks
Non-Cancellable / Non-Refundable
$19.73USD
$19.00 Shipping
Configure
Specifications
Specifications
Brand
Connection Pin-Out
- 12-Pin
- 2-Pin
- 3-Pin
- 4-Pin
- 5-Pin
- 6-Pin
Connection Style
- minifast
Enclosure, Body Material
- Aluminum, Anodized
- Nylon
- Stainless Steel
Environmental Protection
- IP10
- IP54
- IP66
- NEMA 1, 3, 4, 6P / IP10, 54, 66
- NEMA 3
- NEMA 4
- NEMA 6P
Process Temperature
- -30° to 80° C (-22° to 176° F)
Thread
- 1/2” NPT
- 1/2” NPT Threads (B-Size & C-Size)
- 1/2”-14 NPSM
- 3/4” NPT
Version / Leadwires
- 126: 12 x 16 AWG OG, BU, WH / BL, RD / BK, GN / BK, OG / BK, BU / BK, WK / WH, GN, RD, WH, BK
- 12-Wire
- 26: 2 x 16 AWG WH, BK
- 2-Wire
- 30: 3 x 18 AWG GN/YE, BN, BU
- 31: 3 x 18 AWG BK, BN, BU
- 321: 3 x 18 AWG GN/YE, BN, BU
- 35: 3 x 16 AWG GN RD/BK, RD/WH
- 36: 3 x 16 AWG GN, BK, WH
- 3-Wire
- 40: 4 x 18 AWG BN, WH, BU, BK
- 46: 4 x 16 AWG BK, WH, RD, GR
- 48: 4 x 18 AWG BK, WH, RD, GR
- 4-Wire
- 50: 5 x 18 AWG BK, BU, GN/YE, BN, WH
- 5-Wire
- 61: 6 x 18 GN, WH, BU, GY, YE, BN
- 63: 6 x 16 AWG WH, RD, GN, OG, BK, BU
- 6-Wire
Documentation
Documentation
Certifications & Approvals
Outline Drawings
- CAD Drawing - minifast 126 (pdf) (116 KB)
- CAD Drawing - minifast 26 (pdf) (86 KB)
- CAD Drawing - minifast 30 (pdf) (85 KB)
- CAD Drawing - minifast 31 (pdf) (87 KB)
- CAD Drawing - minifast 36 (pdf) (86 KB)
- CAD Drawing - minifast 40 (pdf) (299 KB)
- CAD Drawing - minifast 46 (pdf) (102 KB)
- CAD Drawing - minifast 48 (pdf) (308 KB)
- CAD Drawing - minifast 50 (pdf) (96 KB)
- CAD Drawing - minifast 61 (pdf) (92 KB)
- CAD Drawing - minifast 66 (pdf) (298 KB)
