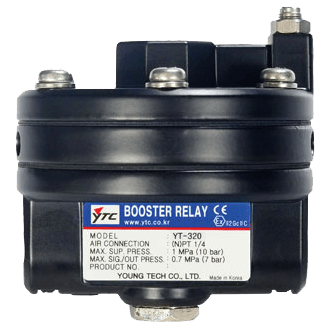

YT-320 Volume Booster

Brand: Rotork YTC
Request Information
Favorite
The YT-320 Volume Booster Relay is used in pneumatic control valve which receives the output signal from positioned and supply air pressure to actuator to reduce opening and closing time of the valve.
Features
  • Supply/Outlet Connection: 1/2" NPT
  • Signal Connection: 1/4" PT or NPT
  • Pressure Ratio: 1:1 Signal: Output
  • Signal and Output Pressure: psig: 101 (bar: 7, kPa: 700, MPa: 0.7)
  • Supply Pressure: psig: 145 (bar: 10, kPa: 1,000, MPa: 1)
  • Flow Capacity:
  • Exhaust: 2.08 Cv
  • Output: 2.72 Cv
  • Material: Aluminum
  • Temperature Range:
  • -20°C to 70°C (-4°F to 158°F)
  • -20°C to 120°C (-4°F to 248°F)
  • -40°C to 70°C (-40°F to 158°F)
show more
The YT-320 Volume Booster Relay is used in pneumatic control valve which receives the output signal from positioned and supply air pressure to actuator to reduce opening and closing time of the valve.
Features
  • Supply/Outlet Connection: 1/2" NPT
  • Signal Connection: 1/4" PT or NPT
  • Pressure Ratio: 1:1 Signal: Output
  • Signal and Output Pressure: psig: 101 (bar: 7, kPa: 700, MPa: 0.7)
  • Supply Pressure: psig: 145 (bar: 10, kPa: 1,000, MPa: 1)
  • Flow Capacity:
  • Exhaust: 2.08 Cv
  • Output: 2.72 Cv
  • Material: Aluminum
  • Temperature Range:
  • -20°C to 70°C (-4°F to 158°F)
  • -20°C to 120°C (-4°F to 248°F)
  • -40°C to 70°C (-40°F to 158°F)
Close

Displaying prices & availability for Virginia, United States in USD. Change location or currency

YT-320-N-1
ROTORK YTC YT-320 Series, 1/2" NPT View More
  • YT 320: Volume Booster
  • N: NPT
  • 1: Ambient Temperature -20~70 deg C
  • Supply Output Connection: 1/2 NPT
  • Max Signal/Output Pressure: 0.7MPa (7 bar)
  • Supply Pressure: 1MPa (10 bar)
  • Flow Capacity: 2.08 exhaust, 2.72 output
  • Material: Aluminum Diecasting
8 - 10 weeks
$839.30USD
$19.23 Shipping
Close
Close

Specifications

Brand

Ambient Temperature Range

  • -20° to 120° C (-4° to 248° F)
  • -20° to 70° C (-4° to 158° F)
  • -40° to 70° C (-40° to 158° F)

Approvals & Certifications

  • CE
  • SIL 3

Enclosure, Body Material

  • Die Cast Aluminum

Flow Capacity

  • Exhaust: 2.08 Cv
  • Output: 2.72 Cv

Independent Linearity

  • ± 1 % of Full Scale

NPT Connection

  • 1/2” NPT Female

Ratio

  • 1:1

Signal or Output Pressure - Maximum

  • bar: 7
  • kPa: 700
  • MPa: 0.7
  • psig: 101

Supply Pressure - Maximum

  • bar: 10
  • kPa: 1,000
  • MPa: 1
  • psig: 145
