D9 Series Manual Ball Valve

Brand: A-T Controls, Inc.
Request a Quote
Favorite
Features:
  • Design: 2-Piece Direct Mount
  • Size: 1/2" to 6"
  • Port: Full
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel, WCB
    • Trim: 316 Stainless Steel
    • Seats: RTFE, PTFE, 50/50%, TFM-1600, MG1241, UHMWPE, PEEK, Cavity Filled
  • End Connections: 150# Flanged Ends
  • Max Pressure Rating: 285 psi
show more

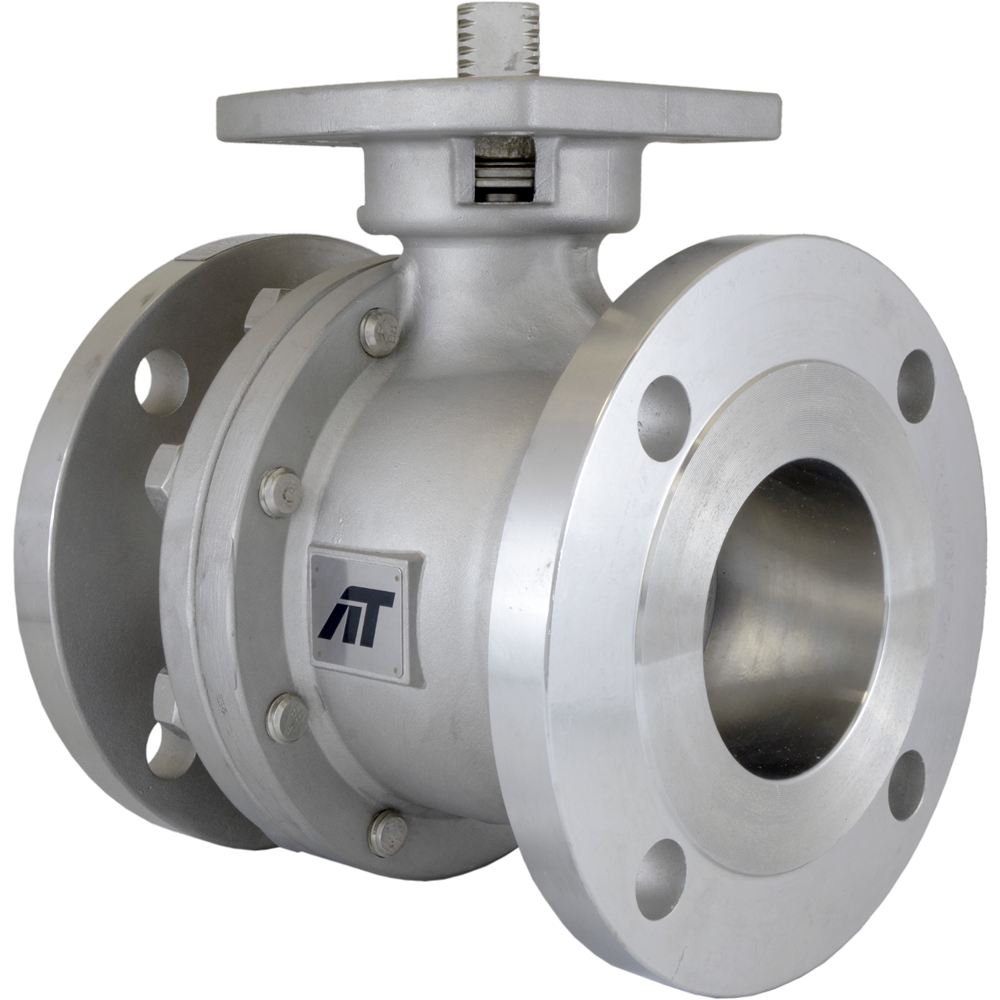

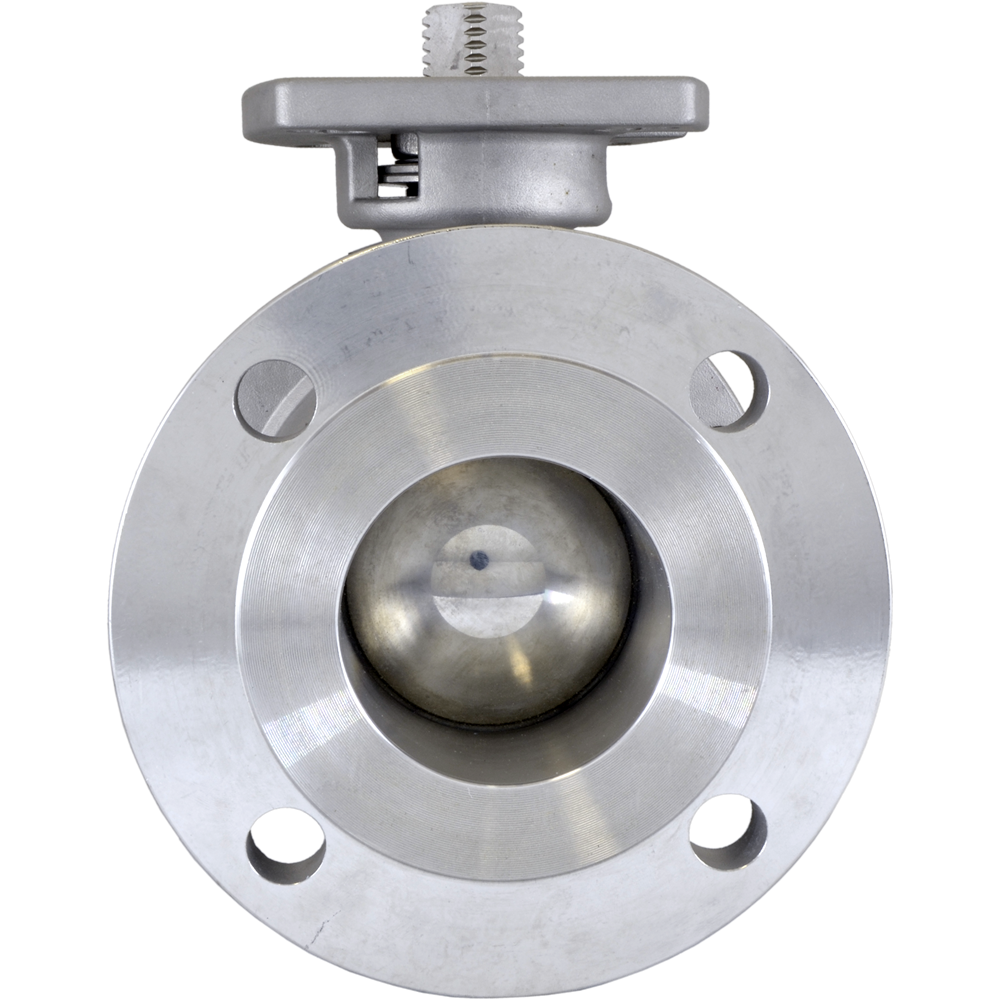

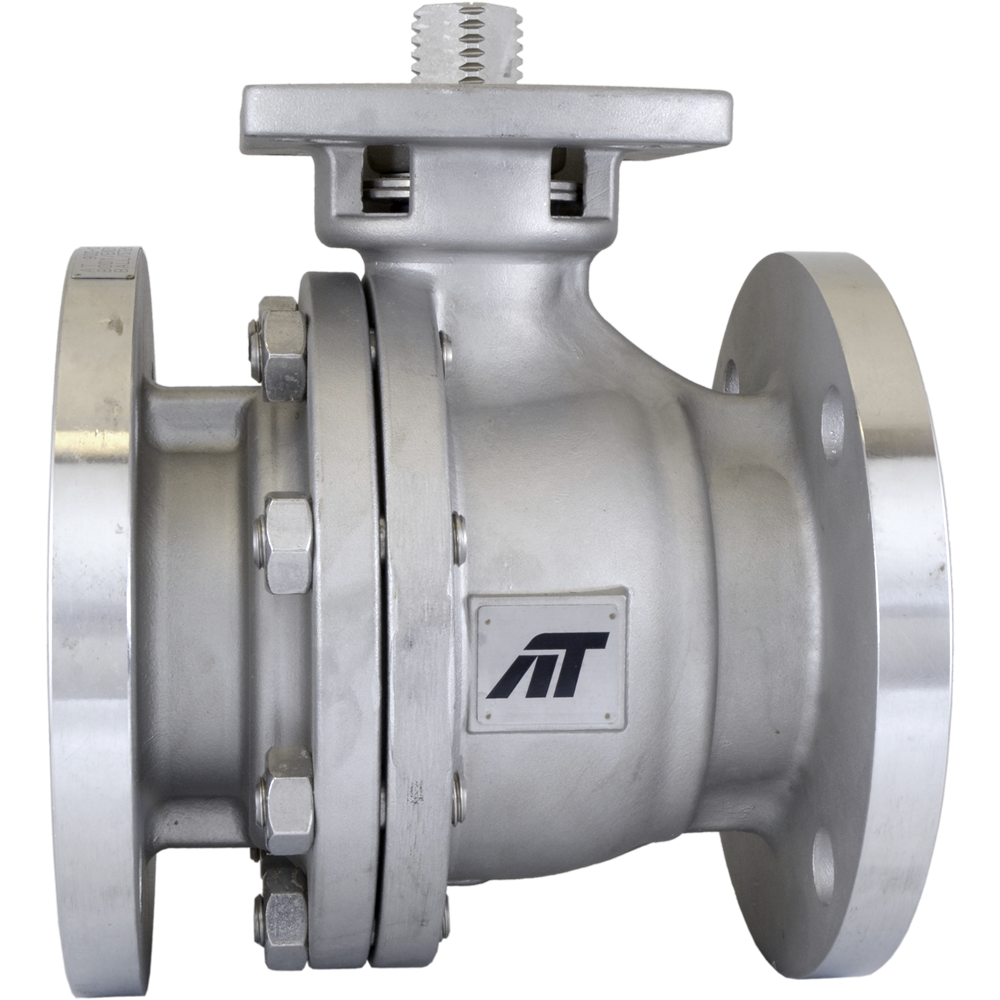

main_D9-C-F1-4002R7S-XX_Front.png 002_D9-C-F1-4002R7S-XX_Angle.png 003_D9-C-F1-4002R7S-XX_Side.png 004_D9-C-F1-4002R7S-XX_Back.png
main_D9-C-F1-4002R7S-XX_Front.png 002_D9-C-F1-4002R7S-XX_Angle.png 003_D9-C-F1-4002R7S-XX_Side.png 004_D9-C-F1-4002R7S-XX_Back.png
Images are representations only.
Features:
  • Design: 2-Piece Direct Mount
  • Size: 1/2" to 6"
  • Port: Full
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel, WCB
    • Trim: 316 Stainless Steel
    • Seats: RTFE, PTFE, 50/50%, TFM-1600, MG1241, UHMWPE, PEEK, Cavity Filled
  • End Connections: 150# Flanged Ends
  • Max Pressure Rating: 285 psi
Close

D9 Manual

Valve Size

Body Material

Body Material

Body Material

Body Material

Body Material

Body Material

Body Material

Body Material

Body Material

End Connection

End Connection

End Connection

End Connection

End Connection

End Connection

End Connection

End Connection

End Connection

Seat Material

Seat Material

Seat Material

Seat Material

Seat Material

Seat Material

Seat Material

Seat Material

Seat Material

Special Designations

Special Designations

Special Designations

Special Designations

Special Designations

Special Designations

Special Designations

Special Designations

Special Designations

Additional Specials

Additional Specials

Additional Specials

Additional Specials

Additional Specials

Additional Specials

Additional Specials

Additional Specials

Additional Specials

View Details

D9 Manual

Out of Stock
Close

Specifications

Brand

Direct Mount

  • Yes

Enclosure, Body Material

  • 316 Stainless Steel
  • WCB Carbon Steel

Flange Size - 1" (DN25)

  • 1" (DN25) - 150#

Flange Size - 1/2" (DN15)

  • 1/2" (DN15) - 150#

Flange Size - 1-1/2" (DN40)

  • 1-1/2" (DN40) - 150#

Flange Size - 2" (DN50)

  • 2" (DN50) - 150#

Flange Size - 2-1/2" (DN65)

  • 2-1/2" (DN65) - 150#

Flange Size - 3" (DN80)

  • 3" (DN80) - 150#

Flange Size - 3/4" (DN20)

  • 3/4" (DN20) - 150#

Flange Size - 4" (DN100)

  • 4" (DN100) - 150#

Flange Size - 6" (DN150)

  • 6" (DN150) - 150#

Options

  • Cleaned for Oxygen
  • Gear Operator
  • Vented Ball

Port

  • Full

Pressure Rating

  • psi: 285

Pyramidal Stem Packing

  • Yes

Seat/Seal Material

  • 50% Stainless Steel Powder / 50% Carbon Filled Teflon
  • MG1241
  • PEEK®
  • PTFE (Carbon Filled Teflon)
  • RTFE (Reinforced Teflon)
  • TFM-1600
  • UHMWPE

Standard Features

  • Direct Mount Flanged

TA-Luft Certified

  • Yes

Trim Material

  • 316 Stainless Steel
  • Monel®

Valve Type

  • Manual
Close
