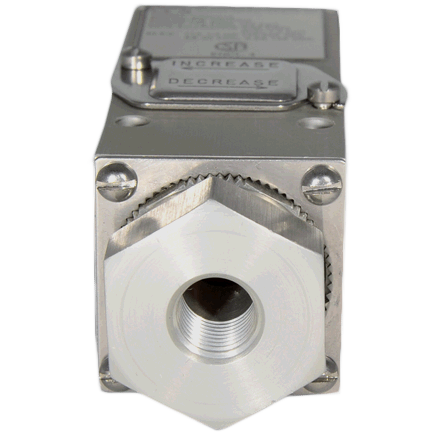

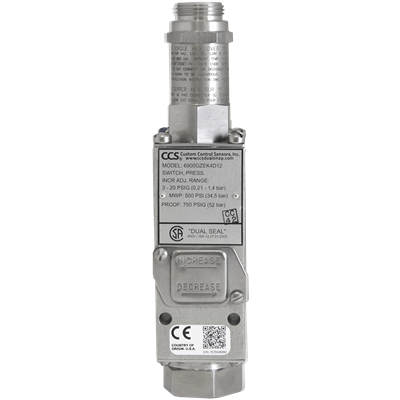

6900GCZZE5Y Series Pressure Switch

Brand: Custom Control Sensors
Request Information
Favorite
Features
  • Highly reliable devices utilizing the CCS Dual-Snap® Belleville disc spring principle pioneered by CCS’ engineers.
  • Engineering based on aerospace technology.
  • Rigid, compact and internally adjustable for convenient field set point adjustment.
  • Repeatable and stable set points.
  • Vibration and shock resistant.
  • High cycle life.
  • High over-pressure capability (System and Proof).
  • Certified explosion proof hermetically sealed electrical assembly for environmental protection.
  • Various options for wetted materials and electrical ratings to meet a wide range of application requirements and media compatibility.
show more
Features
  • Highly reliable devices utilizing the CCS Dual-Snap® Belleville disc spring principle pioneered by CCS’ engineers.
  • Engineering based on aerospace technology.
  • Rigid, compact and internally adjustable for convenient field set point adjustment.
  • Repeatable and stable set points.
  • Vibration and shock resistant.
  • High cycle life.
  • High over-pressure capability (System and Proof).
  • Certified explosion proof hermetically sealed electrical assembly for environmental protection.
  • Various options for wetted materials and electrical ratings to meet a wide range of application requirements and media compatibility.
Close

Displaying prices & availability for United States in USD. Change location or currency

4 models matching criteria
6900GCZZE5Y14
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT, All SST Construction, Welded Capsule, ATEX View More
  • Adjustable Set Point Range:
    • Increasing: 9 to 75 psig, 62.1 to 517.1 kPa, 0.6 to 5.1 bar
    • Decreasing: 3 to 69 psig, 20.7 to 475.7 kPa, 0.21 to 4.8 bar

  • Deadband: Approximately 280 psi, 1930.5 kPa, 19.3 bar
  • System Pressure (Maximum): 5000 psig, 34473.8 kPa, 345 bar
  • Proof Pressure: 7500 psig, 51710.7 kPa, 517 bar
  • Wetted Materials:
    • Pressure Port: 1/4"-18 FNPT 316 Stainless Steel
    • Welded Diaphragm: 316 Stainless Steel
    • O-Ring: Viton

  • Relay: SPDT
  • Electrical Assembly: 1/2"-14 Conduit Thread, 2 Meter Free Leads
  • UL, CSA, ATEX
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
    • ATEX Directive 94/9/EC Sira 08ATEX1046X

  • CRN, CE Mark, NEMA
Available Add-OnsStainless Steel Tag, Preset Set Point
Contact For Inventory
6900GCZZE5Y24
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT, All SST Construction, Welded Capsule, ATEX View More
  • Adjustable Set Point Range:
    • Increasing: 1800 to 3400 psig, 12410.6 to 23442.2 kPa, 124 to 234 bar
    • Decreasing: 1520 to 3120 psig, 10480.0 to 21511.6 kPa, 105 to 215 bar

  • Deadband: Approximately 280 psi, 1930.5 kPa, 19.3 bar
  • System Pressure (Maximum): 5000 psig, 34473.8 kPa, 345 bar
  • Proof Pressure: 7500 psig, 51710.7 kPa, 517 bar
  • Wetted Materials:
    • Pressure Port: 1/4"-18 FNPT 316 Stainless Steel
    • Welded Diaphragm: 316 Stainless Steel
    • O-Ring: Viton

  • Relay: SPDT
  • Electrical Assembly: 1/2"-14 Conduit Thread, 2 Meter Free Leads
  • UL, CSA, ATEX
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
    • ATEX Directive 94/9/EC Sira 08ATEX1046X

  • CRN, CE Mark, NEMA
Available Add-OnsStainless Steel Tag, Preset Set Point
Contact For Inventory
6900GCZZE5Y20
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT, All SST Construction, Welded Capsule, ATEX View More
  • Adjustable Set Point Range:

    • Increasing: 300 to 1000 psig, 2068 to 6894.7 kPa, 20.7 to 69 bar
    • Decreasing: 225 to 925 psig, 1551.3 to 6377.7 kPa, 15.5 to 64 bar

  • Deadband: Approximately 75 psi, 517.1 kPa, 5.1 bar
  • System Pressure (Maximum): 2000 psig, 1378.95 kPa, 138 bar
  • Proof Pressure: 5000 psig, 34473.8 kPa, 345 bar
  • Wetted Materials:
    • Pressure Port: 1/4"-18 FNPT 316 Stainless Steel
    • Welded Diaphragm: 316 Stainless Steel
    • O-Ring: Viton

  • Relay: SPDT
  • Electrical Assembly: 1/2"-14 Conduit Thread, 2 Meter Free Leads
  • UL, CSA, ATEX
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
    • ATEX Directive 94/9/EC Sira 08ATEX1046X

  • CRN, CE Mark, NEMA
Available Add-OnsStainless Steel Tag, Preset Set Point
Contact For Inventory
6900GCZZE5Y16
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT, All SST Construction, Welded Capsule, ATEX View More
  • Adjustable Set Point Range:

    • Increasing: 18 to 150 psig, 124 to 1034.2 kPa, 1.2 to 10.3 bar
    • Decreasing: 6 to 138 psig, 41.4 to 951.5 kPa, 0.41 to 9.5 bar

  • Deadband: Approximately 12 psi, 82.7 kPa, 0.8 bar
  • System Pressure (Maximum): 1500 psig, 10342.14 kPa, 103 bar
  • Proof Pressure: 2000 psig, 13789.5 kPa, 138 bar
  • Wetted Materials:
    • Pressure Port: 1/4"-18 FNPT 316 Stainless Steel
    • Welded Diaphragm: 316 Stainless Steel
    • O-Ring: Viton

  • Relay: SPDT
  • Electrical Assembly: 1/2"-14 Conduit Thread, 2 Meter Free Leads
  • UL, CSA, ATEX
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
    • ATEX Directive 94/9/EC Sira 08ATEX1046X

  • CRN, CE Mark, NEMA
Available Add-OnsStainless Steel Tag, Preset Set Point
Contact For Inventory
Close
Close

Specifications

Brand

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • ATEX
  • CCC
  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - Manitoba
  • CRN - N.W. Territories
  • CRN - Saskatchewan
  • CSA
  • cUL
  • Dual Seal: ANSI/ISA-12.27.01
  • GOST-R
  • IEC Ex
  • LVD
  • PED
  • RoHS
  • RTN
  • UL

Deadband

  • bar: 0.1379 to 19.31
  • kPa: 13.79 to 1,931
  • psi: 2 to 280

Diaphragm Material

  • Stainless Steel

Electrical Assembly

  • 316 Stainless Steel
  • Hermetic Seal

Electrical Certification

  • ATEX - SIRA Certified for Potentially Explosive Atmospheres. Models 6****Y, II 2 GD Ex d IIC, 08-ATEX-
  • c-UL, UL/CSA Explosion-proof: Div. 1, 2 Hermetically Sealed Electrical Assembly P/N 46-1058 (46-1061 for M (DPDT) Model Option), Listed by Both Underwriter's Laboratories, Inc. (File No. E32961) & Canadian Standard Association (CSA) Testing Laboratories
  • IECEx - SIRA Certified, SIR 10,0193X (Option Y)

Electrical Connectors

  • 2 m 18 AWG Free Leads

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 0.5 A at 125 Vdc
  • 11 A at 125/20 Vac Resistive
  • 5 A at 30 Vdc

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • Hazardous Area
  • IP66
  • NEMA 13
  • NEMA 4
  • NEMA 7
  • NEMA 9

NACE & NIST

  • NACE MR-0175: 2003

NPT Connection

  • 1/2” NPT Male
  • 1/4” NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Ethylene Propylene (EPR)
  • Viton

Process Connection Material

  • 316 Stainless Steel

Proof Pressure

  • bar: 68.95 to 689.5
  • kPa: 6,895 to 68,947
  • psi: 1,000 to 10,000

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • bar: 0.0689 to 215.1
  • kPa: 6.895 to 21,512
  • psig: 1 to 3,120

Set Point - Increasing

  • bar: 0.2068 to 234.4
  • kPa: 20.68 to 23,442
  • psig: 3 to 3,400

System Pressure

  • bar: 34.47 to 344.7
  • kPa: 3,447 to 34,474
  • psig: 500 to 5,000
