Model 8080KN Battery Operated Digital Temperature Indicator

Brand: International Metal Engineering (IME)
Request a Quote
Favorite

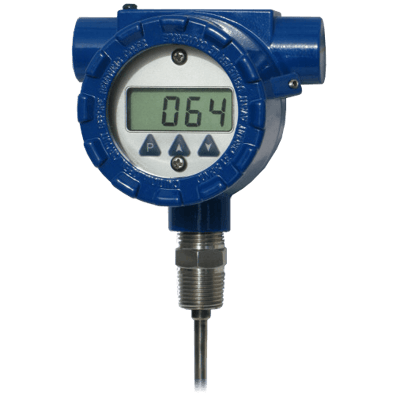

IME Model 8080KN Battery Operated Digital Temperature Indicator Sensor accepts an input from a standard Type J or K Thermocouple or RTD and provides local indication of temperature in ° F or ° C. Designed Thermocouple Type J / K or RTD Pt100 specifically to replace Bimetallic Sensors, 8080KN becomes a universal Indication Accuracy instrument since only one instrument will indicate the entire useful range of the thermocouple. This eliminates having several better than 0.5° C (32.9° F) bimetallic sensors where the dial range has to be predetermined.
Features
  • Input thermocouple and RTD
  • 4 digit LCD display in degree C or F
  • Rugged NEMA 4X enclosure
  • Choice of aluminum or 316 stainless steel
  • Designed to replace bimetallic sensors
  • Explosion proof certified
show more
main_IM_Model_8080KN_Battery_Operated_Digital_Temperature_Indicator.png 002_IM_Model_8080KN_Battery_Operated_Digital_Temperature_Indicator.png
main_IM_Model_8080KN_Battery_Operated_Digital_Temperature_Indicator.png 002_IM_Model_8080KN_Battery_Operated_Digital_Temperature_Indicator.png
Images are representations only.
IME Model 8080KN Battery Operated Digital Temperature Indicator Sensor accepts an input from a standard Type J or K Thermocouple or RTD and provides local indication of temperature in ° F or ° C. Designed Thermocouple Type J / K or RTD Pt100 specifically to replace Bimetallic Sensors, 8080KN becomes a universal Indication Accuracy instrument since only one instrument will indicate the entire useful range of the thermocouple. This eliminates having several better than 0.5° C (32.9° F) bimetallic sensors where the dial range has to be predetermined.
Features
  • Input thermocouple and RTD
  • 4 digit LCD display in degree C or F
  • Rugged NEMA 4X enclosure
  • Choice of aluminum or 316 stainless steel
  • Designed to replace bimetallic sensors
  • Explosion proof certified
Close

Model 8080KN

Housing

Instrument Connection / Conduit Size

Certification

Accessories

2 Inch "U" Bolt with Nuts and Washers

View Details

Model 8080KN

Out of Stock
Close

Specifications

Brand

Accuracy

  • Indication Accuracy: Better than 0.5° C (0.9° F)

Approvals & Certifications

  • CSA (C,US) Class I, Division I Groups B, C, D, Class II, Division I Groups E, F, G, Class III, NEMA 4X
  • FM (C,US) Class I, Division I Groups B, C, D, Class II/III, Division I Groups E, F, G

Battery Life

  • Approximately 1-Year

Display

  • LCD Display

Enclosure Finish

  • Electro-Polished for Stainless Steel
  • Epoxy Painted for Aluminum

Enclosure, Body Material

  • 316 Stainless Steel
  • Copper Free or Die Cast Aluminum

Environmental Protection

  • IP66
  • NEMA 4X

Instrument Connection

  • 1/2" BSP Female
  • 1/2" NPT Female
  • 3/4" NPT Female
  • M20 x 1.5P Female

Mounting

  • Mounting Bracket

Operating Temperature

  • 0° to 60° C (32° to 140° F) for Thermocouple Input
  • -20° to 60° C (-4° to 140° F) for RTD Input

O-Ring Material

  • Hydrogenated Nitrile

RTD Type

  • Pt100

Sensor, Probe Type

  • J Thermocouple
  • K Thermocouple
  • RTD

Size

  • Display Height: 1/2" (12.5 mm)
Close

Review this product and let us know your experiences

Write a Review
Close

Similar Products

108KN Battery Operated Digital Temperature
108KN Battery Operated Digital Temperature
International Metal Engineering (IME)
8080MN Model Digital Process Indicator
8080MN Model Digital Process Indicator
International Metal Engineering (IME)
8080PR Model Dual Relay Temperature Indicator
8080PR Model Dual Relay Temperature Indicator
International Metal Engineering (IME)
PD8-7000 ProtEX-MAX Explosion-Proof Temperature Meter
PD8-7000 ProtEX-MAX Explosion-Proof Temperature Meter
Precision Digital Corporation
8080MK Model Loop Powered Indicator
8080MK Model Loop Powered Indicator
International Metal Engineering (IME)
8080RR Model Dual Relay Process Indicator
8080RR Model Dual Relay Process Indicator
International Metal Engineering (IME)

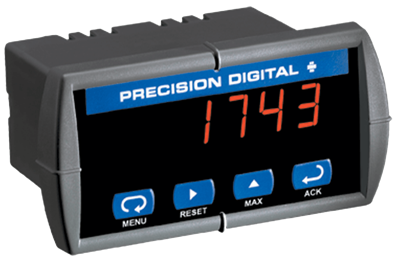

PD743 Temperature Meter
