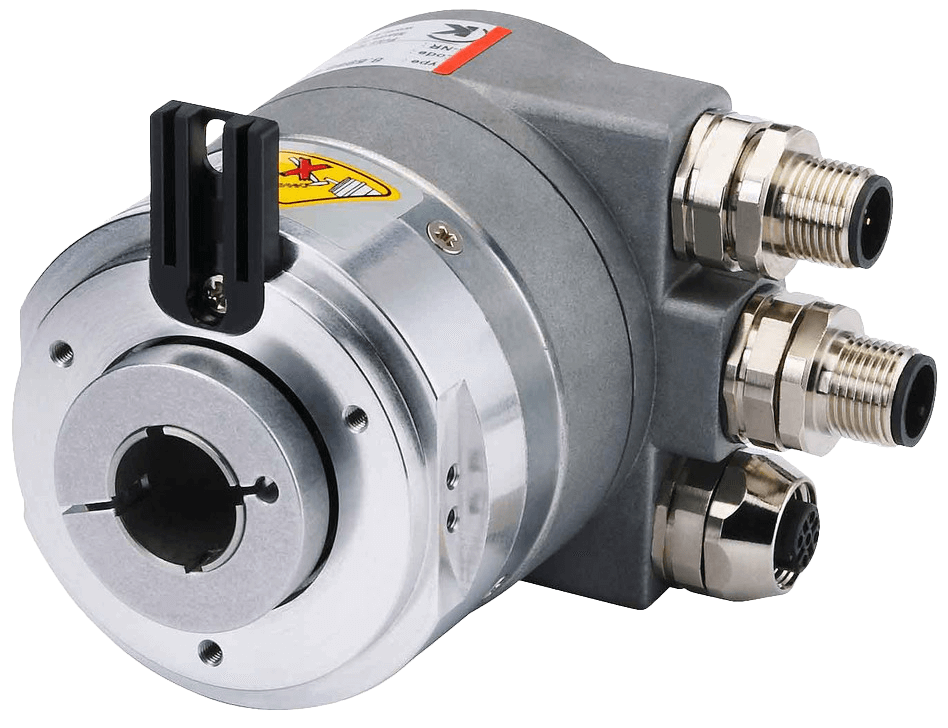

5878 (Hollow Shaft) Absolute Encoder

Brand: Turck, Inc.
Request a Quote
Favorite
The singleturn encoders 5878 with PROFINET interface and optical sensor technology are ideal for use in all applications with a PROFINET interface. The encoder supports the IRT mode and is therefore ideal for realtime applications. Easy start-up thanks to the "Ezturn for PROFINET" software supplied with the encoder. Reliable:
  • Ideally suited for all PROFINET applications thanks to the use of encoder profile 4.1
  • Perfect for use in harsh outdoor environments, as a result of IP 67 protection and rugged housing construction
Flexible:
  • IRT-Mode
  • Cycle time ≤1 Millisecond
  • Firmware updater allows for easy expansion of characteristics without having to disassemble the encoder.
  • M12 connector ensures fast, simple, error-free connection
show more
main_TU_Kubler_5878_Hollow_Shaft_Absolute_Encoder.png 002_TU_Kubler_5878_Hollow_Shaft_Absolute_Encoder.png
main_TU_Kubler_5878_Hollow_Shaft_Absolute_Encoder.png 002_TU_Kubler_5878_Hollow_Shaft_Absolute_Encoder.png
Images are representations only.
The singleturn encoders 5878 with PROFINET interface and optical sensor technology are ideal for use in all applications with a PROFINET interface. The encoder supports the IRT mode and is therefore ideal for realtime applications. Easy start-up thanks to the "Ezturn for PROFINET" software supplied with the encoder. Reliable:
  • Ideally suited for all PROFINET applications thanks to the use of encoder profile 4.1
  • Perfect for use in harsh outdoor environments, as a result of IP 67 protection and rugged housing construction
Flexible:
  • IRT-Mode
  • Cycle time ≤1 Millisecond
  • Firmware updater allows for easy expansion of characteristics without having to disassemble the encoder.
  • M12 connector ensures fast, simple, error-free connection
Close

5878 (Hollow Shaft)

Flange

Hollow Shaft

Interface / Power supply

Type of Connection

Field Bus Profile

View Details

5878 (Hollow Shaft)

Out of Stock
Close

Specifications

Brand

Approvals & Certifications

  • CE Compliant: EMC Guideline 2004/108/EC
  • Ex Approval for Hazardous Area: Zone 2 & 22
  • RoHS Compliant: Guideline 2011/65/EU
  • UL (C,US): File 224618

Capacity

  • Axial Load Capacity of Shaft: 40 N
  • Radial Load Capacity of Shaft: 80 N

Communication

  • Profinet IO

Configuration

  • Ezturn Software for PROFINET

Consumption

  • Power Consumption (No Load): 200 mA - Maximum

Cycling Rate

  • ≤ 1 millisecond

Diameter

  • Blind Hollow Shaft: 0.39"to 0.59" (10 to 15 mm)
  • Stator Coupling: 2.48" (63 mm)
  • Stator Coupling: 2.56" (65 mm)

Display

  • LED Display

Electrical Connectors

  • 3 x M12 Connector, 4-Pin

Enclosure, Body Material

  • Zinc Die Cast Housing

Environmental Protection

  • IP65
  • IP67

Flange Material

  • Aluminum

Flange Type - Other

  • Flange with Spring Element Long
  • Flange with Stator Coupling

Operating Temperature

  • -40° to 85° C (-40° to 185° F)

Power Supply

  • 10-30 Vdc

Resolution

  • Singleturn Resolution: 1 to 65,535 (16-bits), Scaleable
  • Total Resolution: 1 to 65,535 (13-bits), Scaleable

Reverse Polarity Protection

  • Yes

Shaft Material

  • Stainless Steel

Shock

  • Shock Resistance According to EN 60068-2-27: 2,500 m/sec², 6 milliseconds

Speed

  • Maximum

Torque

  • Starting Torque (IP67): < 0.05 Nm
  • Starting Torque: < 0.01 Nm

Vibration

  • Vibration Resistance According to EN 60068-2-6: 100 m/sec², 55 to 2,000 Hz
