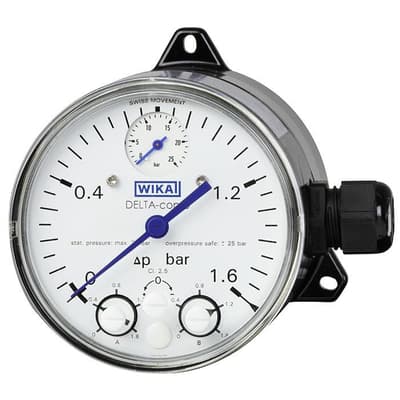

Model DPGS40 Differential Pressure Gauge with Micro Switch

Brand: WIKA Instruments Ltd.
The differential pressure gauges of the DELTA-line product family are primarily used for the monitoring and control of low differential pressures where there are high requirements in terms of one-sided overpressure and static pressure.
Features
  • Robust Aluminum case with shatterproof window.
  • Low measuring range from 0 ... 250 mbar.
  • Optionally with Ex approval.
  • High ingress protection, IP65, for outdoor use and processes with high condensation.
show more
The differential pressure gauges of the DELTA-line product family are primarily used for the monitoring and control of low differential pressures where there are high requirements in terms of one-sided overpressure and static pressure.
Features
  • Robust Aluminum case with shatterproof window.
  • Low measuring range from 0 ... 250 mbar.
  • Optionally with Ex approval.
  • High ingress protection, IP65, for outdoor use and processes with high condensation.

Specifications

Certifications & Approvals

  • CE
  • EAC
  • IECEx
  • GOST
  • KazInMetr
  • UkrSEPRO
  • Uzstandard
  • CRN

Environmental Protection

  • IP65

Case Material

Window Material

Nominal Size

  • 22, 100 mm

Process Conenction

  • 2 x G 1/4" female, lower mount, in-line, centre distance 26 mm

Scale Range

  • 0 to 10 bar

Typical Applications

Monitoring and control of filters, compressors and pumps in:
  • Marine boilers,pressure vessels, bilge-water collection
  • Drinking and cooling-water treatment plants
  • Pressure-boosting stations
  • Heating technology
  • Fire-extinguishing systems
