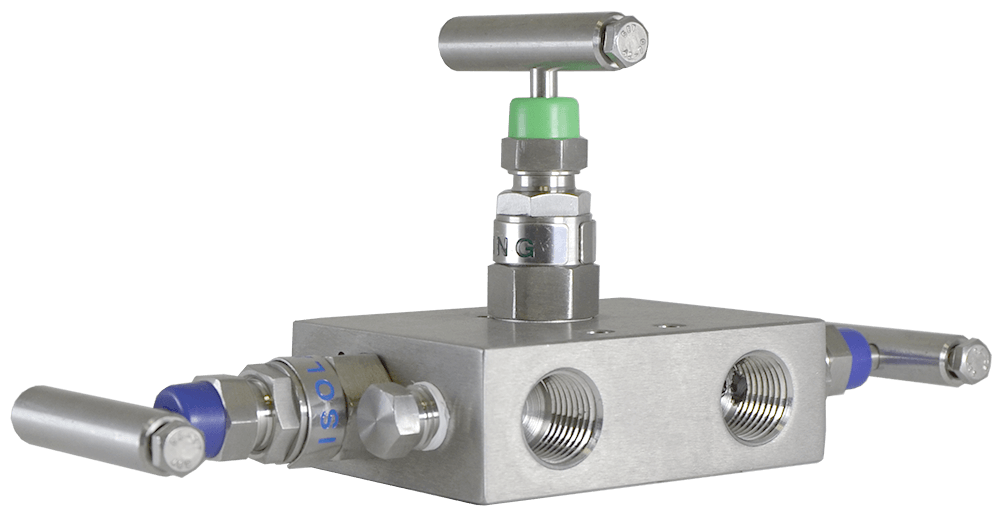

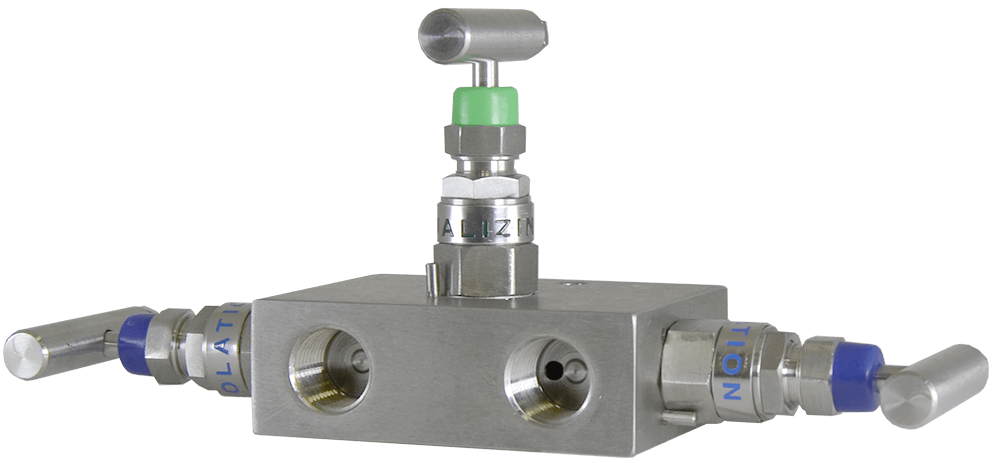

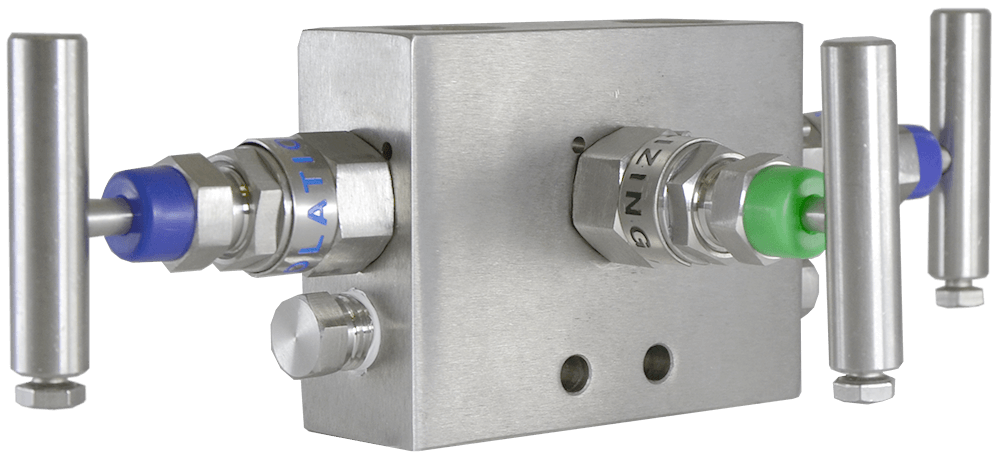

3-Valve Series

Brand: Mac-Weld Machining Ltd.
Features
  • Max Pressure: 6000 psi @ 100°F (38°C)
  • Inlet Connection: 1/2" NPT Female
  • Outlet Connection: 1/2" NPT Female, Flange
  • Standard Features:
    • PTFE Packing
    • Non-Rotating trim provides bubble tight shut-off
  • Construction Material:
    • Body: Stainless Steel
    • Trim: Stainless Steel
  • Options:
    • NACE certified wetted parts
    • Graphoil packing
show more
Features
  • Max Pressure: 6000 psi @ 100°F (38°C)
  • Inlet Connection: 1/2" NPT Female
  • Outlet Connection: 1/2" NPT Female, Flange
  • Standard Features:
    • PTFE Packing
    • Non-Rotating trim provides bubble tight shut-off
  • Construction Material:
    • Body: Stainless Steel
    • Trim: Stainless Steel
  • Options:
    • NACE certified wetted parts
    • Graphoil packing

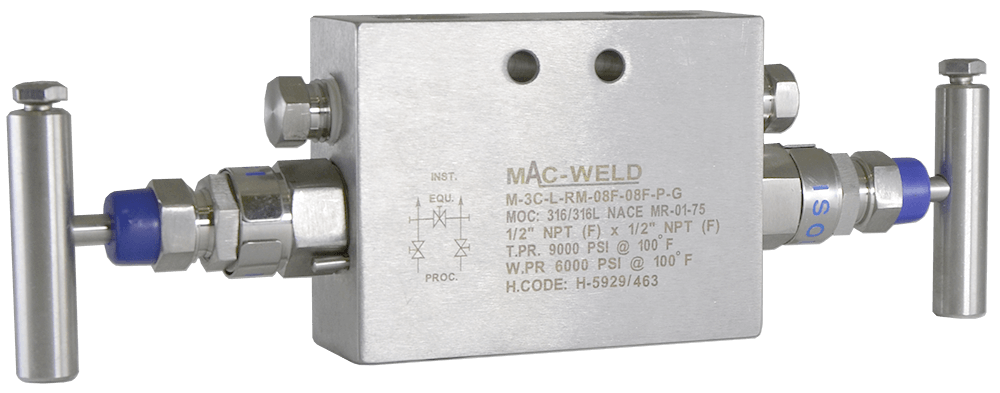

M-3C-L-RM-08F-08F-P-G
MAC-WELD 3-Valve Manifold, 316L SST, 1/2" FNPT x 1/2" FNPT, 600 psi, Graphite Packing View More
  • M: Manifold
  • 3: 3 Valve
  • C: Horizontal
  • L: 316L Stainless Steel, NACE MRO175 And EN 10204 3.1 Compliant
  • RM: Remote Mount
  • 08F: 1/2" Female NPT (Threads to ASME B 1.20.10)
  • 08F: 1/2" Female NPT (Threads to ASME B 1.20.10)
  • P: 1/4" Female NPT Drain c/w Plug
  • G: Graphoil Packing
2 In Stock
$78.32 USD $70.56 USD
$15.50 Shipping
M-3C-L-RM-08F-08F-P
MAC-WELD 3-Valve Manifold, 316L SST, 1/2" FNPT x 1/2" FNPT, 6000 psi, PTFE Packing View More
  • M: Manifold
  • 3: 3 Valve
  • C: Horizontal
  • L: 316L Stainless Steel, NACE MRO175 And EN 10204 3.1 Compliant
  • RM: Remote Mount
  • 08F: 1/2" Female NPT (Threads to ASME B 1.20.10)
  • 08F: 1/2" Female NPT (Threads to ASME B 1.20.10)
  • P: 1/4" Female NPT Drain c/w Plug
  • (Blank): PTFE Packing
1 - 3 weeks
$110.11 USD
$15.50 Shipping

Specifications

Enclosure, Body Material

  • 316L Stainless Steel

Handle Assembly Material

  • 304 Stainless Steel

NACE & NIST

  • NACE

NPT Inlet

  • 1/2" NPT Female

NPT Outlet

  • 1/2" NPT Female

Pressure Rating

  • psig: 6,000 at 38° C (100° F)

Seal Retainer

  • PTFE

Valves

  • Three
