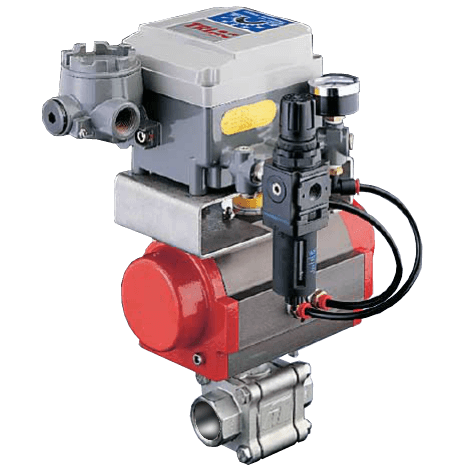

V8 Series Automated Ball Valve

Brand: A-T Controls, Inc.
Triac Series 3-Piece Ball Valves feature a direct mount automation pad.

The high quality investment castings feature a fully machined bore. The superior live-loaded packing system is accomplished with Beville washers, "V" ring packing and a unique primary pyramidal stem seal.

This advanced sealing system provides for protection against stem leaks experienced by ordinary ball valves.
Features
  • Design: Automatic V-Port Control Valve
  • Size: 1/2" to 4"
  • Port: 30°, 60°, 90° V-Port
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel, WCB
    • Trim: 316 Stainless Steel
    • Seats: 50/50%
  • End Connections: Threaded Ends, Socket Weld, Butt Weld
  • Max Pressure Rating: psig: 1,000 to 2,000
  • Actuator Type:
    • Pneumatic (Double Acting or Spring Return)
    • Electric (On/Off or Modulating)
show more
Triac Series 3-Piece Ball Valves feature a direct mount automation pad.

The high quality investment castings feature a fully machined bore. The superior live-loaded packing system is accomplished with Beville washers, "V" ring packing and a unique primary pyramidal stem seal.

This advanced sealing system provides for protection against stem leaks experienced by ordinary ball valves.
Features
  • Design: Automatic V-Port Control Valve
  • Size: 1/2" to 4"
  • Port: 30°, 60°, 90° V-Port
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel, WCB
    • Trim: 316 Stainless Steel
    • Seats: 50/50%
  • End Connections: Threaded Ends, Socket Weld, Butt Weld
  • Max Pressure Rating: psig: 1,000 to 2,000
  • Actuator Type:
    • Pneumatic (Double Acting or Spring Return)
    • Electric (On/Off or Modulating)
15 models matching criteria
V8-TS-050/2R2S-XX3
A-T CONTROLS WEM-500AA,Elect Actuator,Modulating,24 VDC Mtd to 1/2"V8 316 30°VportBallValve,Thread View More
  • Design: 3-Piece 150# Flanged
  • Size: 1/2" NPT
  • Port: 30° V-Port
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Seats: 50% Stainless Steel Powder / 50% TFE Seats

  • End Connections: Threaded Ends
  • Actuator-Pneumatic: 400 In-Lbs. Spring Return
2 - 4 weeks
$567.31USD
$14.84 Shipping
V8-TS-050/WEA2-XX3
A-T CONTROLS WE-500,Elect Actuator,Modulating,24 VDC Mtd to 1/2"V8 316 30°VportBallValve,Thread View More
  • Design: 3-Piece V-Port
  • Size: 1/2" NPT
  • Port: 30° V-Port
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Seats: 50% Stainless Steel Powder / 50% TFE Seats

  • End Connections: Threaded Ends
  • Actuator-Electric: WEM-500 Modulating
2 - 4 weeks
$1,660.36USD
$14.84 Shipping
V8-SX-100/2R3D-EX6
A-T CONTROLS Series V8 Ball Valve, Pneum. Act. 1" 60° V-Port,SocketWld,SST, RTFE,EPR-1000Positioner View More
  • Design: 3-Piece V-Port Control Valve
  • Size: 1" NPT
  • Port: 60° V-Port
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Seats: RTFE

  • End Connections: Socket Weld
  • Max Pressure Rating: 2000 psi
  • Actuator (Pneumatic): 2R80 Double Acting
    • with EPR-1000 4-20mA Electro-Pneumatic Positioner

2 - 4 weeks
$1,670.01USD
$14.84 Shipping
V8-TS-075/WEA2-XX3
A-T CONTROLS 3pc V-Port, NPT, 3/4", 50/50 STFE Seats, WEM-500 Actuator, 30°V-Ball View More
  • V8: High Performance, Full Port, 3-Piece V-Port Control Valve

    • SST Body and Trim

  • T: NPT Ends
  • S: 50/50 STFE Seats
  • 075: 3/4" Valve Size
  • WEA2: WEM-500 Actuator
    • WE: Weather Proof, IP67, TYPE 4, 4X, 6
    • M: TMC3 Series with 4-20mA Transmitter
    • 440: Actuator Size - 440 in-lbs
      • Motor FLA 2.3 Amps @ 110V 60 Hz
      • 26 Second Operation, 115VAC/1PH,4-20mA Feedback Transmitter, TMC3 Modulating Control, NEMA 4, 6, Compartment Heater & Thermostat, (2) Auxiliary Limit Switches with 4 Independent CAMS, (2) Torque Switches, Diecast Anodized Aluminum Polyester Coated Construction, Class F Extended Duty Fan Motor, Manual Override, (2) 3/4" NPT Conduit Connections, F10/F12 ISO Mounting Pad, 27MM (1.063) Star Output Drive CSA Approved: General Purpose Locations


  • XX: No Specials
  • 3: 30° V-Port (v-ball)
1 - 2 weeks
$1,709.37USD
$14.84 Shipping
V8-TS-100/WEA2-XX6
A-T CONTROLS 3pc V-Port, NPT, 50/50 STFE Seats, WEM-500 Actuator, 60°V-Ball View More
  • V8: High Performance, Full Port, 3-Piece V-Port Control Valve

    • SST Body and Trim

  • T: NPT Ends
  • S: 50/50 STFE Seats
  • 0100: 1" Valve Size
  • WEA2: WEM-500 Electric Modulating Actuator
    • WE: Weather Proof, IP67, TYPE 4, 4X, 6
    • M: TMC3 Series with 4-20mA Transmitter
    • 500: Actuator Size - 530 in-lbs
      • Motor FLA 2.3 Amps @ 110V 60 Hz
      • 26 Second Operation, 115VAC/1PH,4-20mA Feedback Transmitter, TMC3 Modulating Control, NEMA 4, 6, Compartment Heater & Thermostat, (2) Auxiliary Limit Switches with 4 Independent CAMS, (2) Torque Switches, Diecast Anodized Aluminum Polyester Coated Construction, Class F Extended Duty Fan Motor, Manual Override, (2) 3/4" NPT Conduit Connections, F10/F12 ISO Mounting Pad, 27MM (1.063) Star Output Drive
      • CSA Approved: General Purpose Locations


  • XX: No Specials
  • 6: 60° V-Port (v-ball)
1 - 2 weeks
$1,796.99USD
$14.84 Shipping
V8-TS-100/WEA2-XX-9
A-T CONTROLS, WEM-500 Actuator, Modulating Control, 90°V-Ball, Threaded Ends, 50% STFE Seats View More
  • V8: High Performance, Full Port, 3-Piece V-Port Control Valve

    • SST Body and Trim

  • T: NPT Ends
  • S: 50/50 STFE Seats
  • 0100: 1" Valve Size
  • WEA2: WEM-500 Electric Modulating Actuator
    • WE: Weather Proof, IP67, TYPE 4, 4X, 6
    • M: TMC3 Series with 4-20mA Transmitter
    • 500: Actuator Size - 530 in-lbs
      • Motor FLA 2.3 Amps @ 110V 60 Hz
      • 26 Second Operation, 115VAC/1PH,4-20mA Feedback Transmitter, TMC3 Modulating Control, NEMA 4, 6, Compartment Heater & Thermostat, (2) Auxiliary Limit Switches with 4 Independent CAMS, (2) Torque Switches, Diecast Anodized Aluminum Polyester Coated Construction, Class F Extended Duty Fan Motor, Manual Override, (2) 3/4" NPT Conduit Connections, F10/F12 ISO Mounting Pad, 27MM (1.063) Star Output Drive
      • CSA Approved: General Purpose Locations


  • XX: No Specials
  • 9: 90° V-Port (v-ball)
1 - 3 weeks
$1,796.99USD
$14.84 Shipping
V8-TS-050/2R2S-XX-6/EPR-1000-TR
A-T CONTROLS V8 Automated Valve Package, Pneumatic Spring Return, SST, 1/2", Rotary EP Positioner View More
  • V8: High Performance, Full Port, 3 Piece, V-Port
  • T: NPT Ends
  • S: 50/50 STFE Seats
  • 050: 1/2" Valve Size
  • 2R2S: 2R40SR Pneumatic Spring Return Actuator
  • XX: No Specials
  • 6: 60° V-Port (v-ball)
  • EPR-1000-TR: Rotary Electro-Pneumatic Positioner
    • Air Piping Connection: 1/4" NPT with SST Gauges
    • Input: 4-20mA
    • Output Transmitter: 4-20mA

2 - 4 weeks
$1,893.52USD
$14.84 Shipping
V8-SX-200/2R4D-EX6
A-T CONTROLS Series V8 Ball Valve, Pneum. Act. 2" 60° V-Port,SocketWld,SST, RTFE,EPR-1000Positioner View More
  • Design: 3-Piece V-Port Control Valve
  • Size: 2" NPT
  • Port: 60° V-Port
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Seats: RTFE

  • End Connections: Socket Weld
  • Max Pressure Rating: 1500 psi
  • Actuator (Pneumatic): 2R130 Double Acting
    • with EPR-1000 4-20mA Electro-Pneumatic Positioner

2 - 4 weeks
$2,096.99USD
$14.84 Shipping
V8-TS-100/WEB2-X6
A-T CONTROLS Series V8 Ball Valve, Elec. Act. (Mod.), 1", 60° V-Port, SST, Threaded, 50/50 Seat View More
  • Design: 3-Piece V-Port
  • Size: 1" NPT
  • Port: 60° V-Port
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Seats: 50% Stainless Steel Powder / 50% TFE Seats

  • End Connections: Threaded Ends
  • Actuator-Electric: WEM-690 Modulating
2 - 4 weeks
$2,300.45USD
$14.84 Shipping
V8-TS-100/WEB2-RX-6
A-T CONTROLS Series V8 Ball Valve, 1", 60° V-Port, WED-690C Electric Actuator, 24 VDC
2 - 4 weeks
$2,497.97USD
$14.84 Shipping

Specifications

Applications

  • Chemicals
  • Flow Control
  • Gases
  • Liquid
  • Petrochemical
  • Pressure Monitoring
  • Pulp & Paper
  • Refineries
  • Steam
  • Viscous Media & Slurry

Approvals & Certifications

  • API 598
  • EN 10204-3.1 MTR
  • IEC 61508: 2010, SIL 3
  • ISO 5211
  • ISO 9001: 2008

Direct Mount

  • Yes

Enclosure, Body Material

  • 316 Stainless Steel
  • WCB Carbon Steel

NPT Connection

  • 1" NPT Female
  • 1/2" NPT Female
  • 1-1/2" NPT Female
  • 1-1/4" NPT Female
  • 2" NPT Female
  • 2-1/2" NPT Female
  • 3" NPT Female
  • 3/4" NPT Female
  • 4" NPT Female

Options

  • Electro-Pneumatic Positioner
  • Pneumatic Positioner

Port

  • 30° V-Port (V-Ball)
  • 60° V-Port (V-Ball)
  • 90° V-Port (V-Ball)

Pressure Rating

  • psig: 1,000 to 2,000

Pyramidal Stem Packing

  • Yes

Seat / Seal Material

  • 50 % Stainless Steel Powder / 50 % Carbon-Filled Teflon

Standard Features

  • 3-Piece V-Port

Trim Material

  • 316 Stainless Steel

Valve Type

  • Automated

Welded Connection

  • 1" Butt Weld End
  • 1" Socket Weld End
  • 1/2" Butt Weld End
  • 1/2" Socket Weld End
  • 1-1/2" Butt Weld End
  • 1-1/2" Socket Weld End
  • 1-1/4" Butt Weld End
  • 1-1/4" Socket Weld End
  • 2" Butt Weld End
  • 2" Socket Weld End
  • 2-1/2" Butt Weld End
  • 2-1/2" Socket Weld End
  • 3" Butt Weld End
  • 3" Socket Weld End
  • 3/4" Butt Weld End
  • 3/4" Socket Weld End
  • 4" Butt Weld End
  • 4" Socket Weld End
