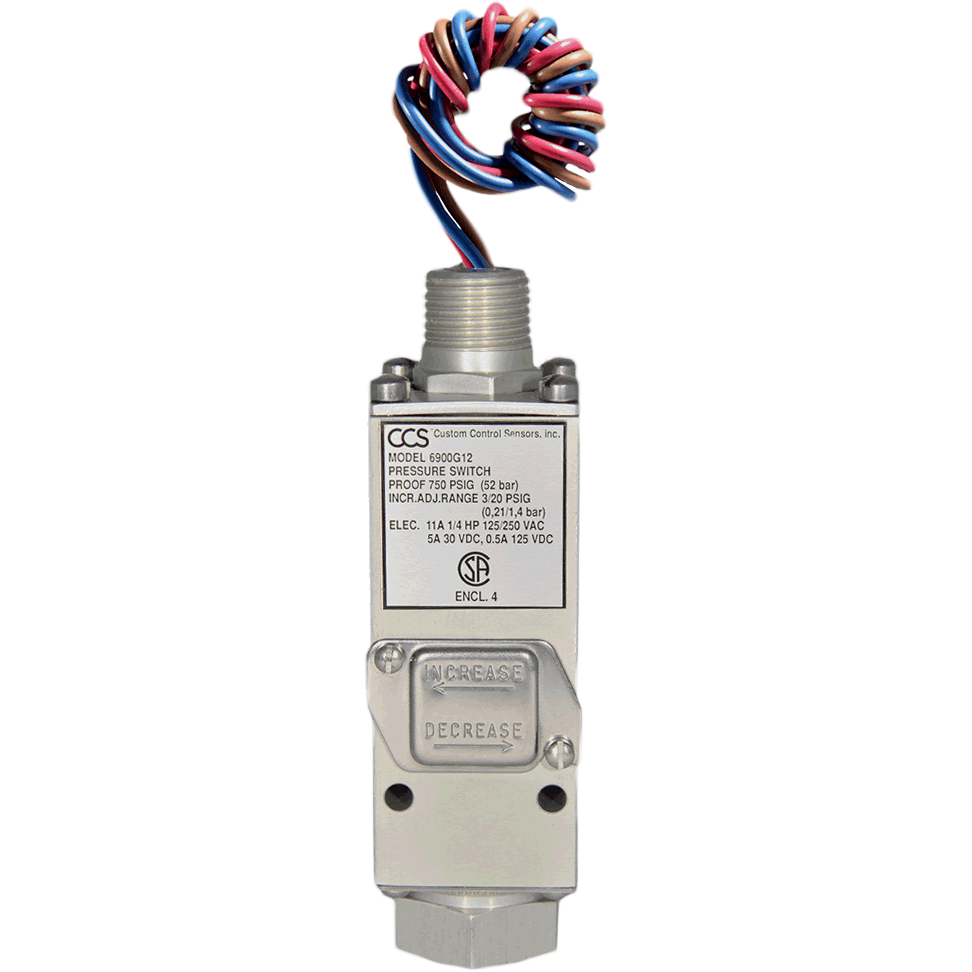

Images are representations only.

6900P Series Pressure Switch

Brand: Custom Control Sensors
Request Information
Favorite
Features
  • Adjustable Set Point Range:
    • Increasing: 15 to 16,000 psig, 103.5 to 110,316 kPa, 1.03 to 1103 bar
    • Decreasing: 5 to 13,500 psig, 34.5 to 93,079.13 kPa, 0.35 to 931 bar
  • Deadband: Approximately 10 to 2500 psi, 68.95 to 17,236.88 kPa, 0.7 to 172 bar
  • System Pressure (Maximum): 2000 to 17,000 psig, 13,789.51 to 117,210.75 kPa, 138 to 1172 bar
  • Proof Pressure: 3000 to 25,000 psig, 20,684.27 to 172,368.75 kPa, 207 to 1724 bar
  • Wetted Materials:
    • Pressure Port: 1/4" Female NPT Aluminum
    • Piston: 400 Stainless Steel
    • O-Ring: Buna N / Teflon
  • Relay: SPDT or DPDT
  • CSA, CRN, CE Mark, General Purpose
show more
Features
  • Adjustable Set Point Range:
    • Increasing: 15 to 16,000 psig, 103.5 to 110,316 kPa, 1.03 to 1103 bar
    • Decreasing: 5 to 13,500 psig, 34.5 to 93,079.13 kPa, 0.35 to 931 bar
  • Deadband: Approximately 10 to 2500 psi, 68.95 to 17,236.88 kPa, 0.7 to 172 bar
  • System Pressure (Maximum): 2000 to 17,000 psig, 13,789.51 to 117,210.75 kPa, 138 to 1172 bar
  • Proof Pressure: 3000 to 25,000 psig, 20,684.27 to 172,368.75 kPa, 207 to 1724 bar
  • Wetted Materials:
    • Pressure Port: 1/4" Female NPT Aluminum
    • Piston: 400 Stainless Steel
    • O-Ring: Buna N / Teflon
  • Relay: SPDT or DPDT
  • CSA, CRN, CE Mark, General Purpose
Close

Displaying prices & availability for United States in USD. Change location or currency

19 models matching criteria
6900P36
CCS DUAL-SNAP Piston Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, 400 SST, Buna-N, Teflon View More
  • Adjustable Set Point Range:

    • Increasing: 500 to 3200 psig, 3447.4 to 22063.2 kPa, 34.5 to 221 bar
    • Decreasing: 330 to 3030 psig, 2275.3 to 20891.1 kPa, 22.8 to 209 bar

  • Deadband: Approximately 170 psi, 1172.11 kPa, 11.7 bar
  • System Pressure (Maximum): 5000 psig, 34473.78 kPa, 345 bar
  • Proof Pressure: 7500 psig, 51710.68 kPa, 517 bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Piston: 400 Stainless Steel
    • O-Ring: Buna N / Teflon

  • Relay: SPDT
  • CSA, CRN, CE Mark, NACE, General Purpose
Available Add-OnsStainless Steel Tag
4 In Stock
6900P32-7081
CCS DUAL-SNAP Piston Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, 400 SST, Buna-N/Teflon,Explosio View More
  • Adjustable Set Point Range:
    • Increasing: 15 to 200 psig, 103.5 to 1378.9 kPa, 1.03 to 13.8 bar
    • Decreasing: 5 to 190 psig, 34.5 to 1310.0 kPa, 0.35 to 13.1 bar

  • Deadband: Approximately 10 psi, 68.95 kPa, 0.7 bar
  • System Pressure (Maximum): 2000 psig, 13789.51 kPa, 138 bar
  • Proof Pressure: 3000 psig, 20684.27 kPa, 207 bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Piston: 400 Stainless Steel
    • O-Ring: Buna N / Teflon

  • Relay: SPDT
  • Electrical: M20 x 1.5 Explosion Proof - ATEX
  • CSA, CRN, CE Mark, NACE, General Purpose
Available Add-OnsStainless Steel Tag
Contact For Inventory
6900P36-7038
CCS DUAL-SNAP Piston Switch, Non-Haz. Area, 7/16-20 UNF SST Port & Piston, Buna-N, Teflon View More
  • Adjustable Set Point Range:
    • Increasing: 500 to 3200 psig, 3447.4 to 22063.2 kPa, 34.5 to 221 bar
    • Decreasing: 330 to 3030 psig, 2275.3 to 20891.1 kPa, 22.8 to 209 bar
  • Deadband: Approximately 170 psi, 1172.11 kPa, 11.7 bar
  • System Pressure (Maximum): 5000 psig, 34473.78 kPa, 345 bar
  • Proof Pressure: 7500 psig, 51710.68 kPa, 517 bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT 316 Stainless Steel
    • Piston: 316 Stainless Steel
    • O-Ring: Buna N / Teflon
  • Relay: SPDT
  • CSA, CRN, NACE, CE Mark, General Purpose
Available Add-OnsStainless Steel Tag
Contact For Inventory
6900P36-7075
CCS DUAL-SNAP Piston Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, 400 SST, Buna-N, Teflon, DIN View More
  • Adjustable Set Point Range:
    • Increasing: 500 to 3200 psig, 3447.4 to 22063.2 kPa, 34.5 to 221 bar
    • Decreasing: 330 to 3030 psig, 2275.3 to 20891.1 kPa, 22.8 to 209 bar

  • Deadband: Approximately 170 psi, 1172.11 kPa, 11.7 bar
  • System Pressure (Maximum): 5000 psig, 34473.78 kPa, 345 bar
  • Proof Pressure: 7500 psig, 51710.68 kPa, 517 bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Piston: 400 Stainless Steel
    • O-Ring: Buna N / Teflon

  • Relay: SPDT Electrical Connector with 4 Blades - Conforms to DIN-43650
  • CSA, CRN, CE Mark, NACE, General Purpose
Available Add-OnsStainless Steel Tag
Contact For Inventory
6900P36-7090
CCS DUAL-SNAP Piston Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, 400 SST, 2m Leads, BunaN, Teflon View More
  • Adjustable Set Point Range:
    • Increasing: 500 to 3200 psig, 3447.4 to 22063.2 kPa, 34.5 to 221 bar
    • Decreasing: 330 to 3030 psig, 2275.3 to 20891.1 kPa, 22.8 to 209 bar

  • Deadband: Approximately 170 psi, 1172.11 kPa, 11.7 bar
  • System Pressure (Maximum): 5000 psig, 34473.78 kPa, 345 bar
  • Proof Pressure: 7500 psig, 51710.68 kPa, 517 bar
  • Free Leads: 2 meters
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Piston: 400 Stainless Steel
    • O-Ring: Buna N / Teflon

  • Relay: SPDT
  • CSA, CRN, CE Mark, NACE, General Purpose
Available Add-OnsStainless Steel Tag
Contact For Inventory
6900PA32
CCS DUAL-SNAP Piston Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, 400 SST, Viton View More
  • Adjustable Set Point Range:
    • Increasing: 15 to 200 psig, 103.5 to 1378.9 kPa, 1.03 to 13.8 bar
    • Decreasing: 5 to 190 psig, 34.5 to 1310.0 kPa, 0.35 to 13.1 bar

  • Deadband: Approximately 10 psi, 68.95 kPa, 0.7 bar
  • System Pressure (Maximum): 2000 psig, 13789.51 kPa, 138 bar
  • Proof Pressure: 3000 psig, 20684.27 kPa, 207 bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Piston: 400 Stainless Steel
    • O-Ring: Viton

  • Relay: SPDT
  • CSA, CRN, CE Mark, NACE, General Purpose
Available Add-OnsStainless Steel Tag
Contact For Inventory
6900PM32
CCS DUAL-SNAP Piston Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, 400 SST, Buna-N, Teflon, DPDT View More

  • Adjustable Set Point Range:
    • Increasing: 15 to 200 psig, 103.5 to 1379.9 kPa, 1.03 to 13.8 bar
    • Decreasing: 5 to 190 psig, 34.5 to 1310.0 kPa, 0.35 to 13.1 bar
  • Deadband: Approximately 10 psi, 68.95 kPa, 0.7 bar
  • System Pressure (Maximum): 2000 psig, 13789.51 kPa, 138 bar
  • Proof Pressure: 3000 psig, 20684.27 kPa, 207 bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Piston: 400 Stainless Steel
    • O-Ring: Buna N / Teflon
  • Relay: DPDT
  • CSA, CRN, CE Mark, NACE, General Purpose
[/li]
Available Add-OnsStainless Steel Tag
Contact For Inventory
6900PM34
CCS DUAL-SNAP Piston Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, 400 SST, Buna-N, Teflon, DPDT View More
  • Adjustable Set Point Range:
    • Increasing: 150 to 1600 psig, 1034.3 to 11031.6 kPa, 10.3 to 110 bar
    • Decreasing: 40 to 1490 psig, 275.8 to 10273.1 kPa, 2.8 to 103 bar
  • Deadband: Approximately 110 psi, 758.42 kPa, 7.6 bar
  • System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
  • Proof Pressure: 5000 psig, 34473.79 kPa, 345 bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Piston: 400 Stainless Steel
    • O-Ring: Buna N / Teflon
  • Relay: DPDT
  • CSA, CRN, CE Mark, NACE, General Purpose
Available Add-OnsStainless Steel Tag
Contact For Inventory
6900PM38
CCS DUAL-SNAP Piston Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, 400 SST, Buna-N, Teflon, DPDT View More
  • Adjustable Set Point Range:
    • Increasing: 2000 to 6500 psig, 13789.6 to 44815.9 kPa, 138 to 448 bar
    • Decreasing: 1500 to 6000 psig, 10342.2 to 41368.5 kPa, 103 to 414 bar
  • Deadband: Approximately 500 psi, 3447.38 kPa, 34.5 bar
  • System Pressure (Maximum): 10000 psig, 68947.57 kPa, 689 bar
  • Proof Pressure: 13000 psig, 89631.84 kPa, 896 bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Piston: 400 Stainless Steel
    • O-Ring: Buna N / Teflon
  • Relay: DPDT
  • CSA, CRN, CE Mark, NACE, General Purpose
Available Add-OnsStainless Steel Tag
Contact For Inventory
6900PM40
CCS DUAL-SNAP Piston Switch, Non-Haz. Area, 7/16" UNF 316 Stainless Steel Port, Buna-N, Teflon, DPDT View More
  • Adjustable Set Point Range:
    • Increasing: 5000 to 11000 psig, 34473.7 to 75842.3 kPa, 345 to 758 bar
    • Decreasing: 3500 to 9500 psig, 24131.6 to 65500.2 kPa, 241 to 655 bar

  • Deadband: Approximately 1500 psi, 10342.1 kPa, 103 bar
  • System Pressure (Maximum): 14000 psig, 96526.6 kPa, 965 bar
  • Proof Pressure: 20000 psig, 137895.1 kPa, 1379 bar
  • Wetted Materials:
    • Pressure Port: 7/16"-20 UNF 316 Stainless Steel
    • Piston: 316 Stainless Steel
    • O-Ring: Buna N / Teflon

  • Relay: DPDT
  • CSA, CRN, CE Mark, NACE, General Purpose
Available Add-OnsStainless Steel Tag
Contact For Inventory
Show More Models (8)
Close
Close

Specifications

Brand

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • CCC
  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - Manitoba
  • CRN - N.W. Territories
  • CRN - Saskatchewan
  • CSA
  • LVD
  • PED
  • RoHS

Deadband, Approximate

  • bar: 0.7 to 172
  • kPa: 69.0 to 17,237
  • psi: 10 to 2,500

Diaphragm Material

  • None

Electrical - Free Leads

  • 18” (45 cm) Free Leads
  • 18” (45 cm) Teflon Leadwire

Electrical Certification

  • CSA Listed by Canadian Standard Association (CSA) Testing Laboratories (File No. LR22665) for Enclosure (4) Non-hazardous Locations.

Electrical Connectors

  • 1/2” NPT Male
  • Electrical Connector with 4-Blades, Conforms to DIN-43650

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 11 A at 125/250 Vac

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65
  • IP66
  • NEMA 13
  • NEMA 4, 13 / IP65, 66
  • Non-Hazardous Area

NACE & NIST

  • NACE MR-0175: 2003

NPT Connection

  • 1/4” NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Buna-N, Teflon
  • Ethylene Propylene (EPR)
  • Viton

Piston Material

  • 316 Stainless Steel
  • Stainless Steel, 400 Series

Process Connection Material

  • 316 Stainless Steel
  • Aluminum

Proof Pressure

  • bar: 207 to 1724
  • kPa: 20,684 to 172,369
  • psig: 3,000 to 25,000

Set Point - Decreasing

  • bar: 0.35 to 931
  • kPa: 34.5 to 93,079
  • psig: 5 to 13,500

Set Point - Increasing

  • bar: 1.03 to 1100
  • kPa: 103.5 to 11,0316
  • psig: 15 to 160,000

Switch Type

  • DPDT
  • SPDT

System Pressure

  • bar: 138 to 1,172
  • kPa: 13,790 to 117,211
  • psig: 2,000 to 17,000

UNF/UNC Connection

  • 7/16”-20 UNF Female
