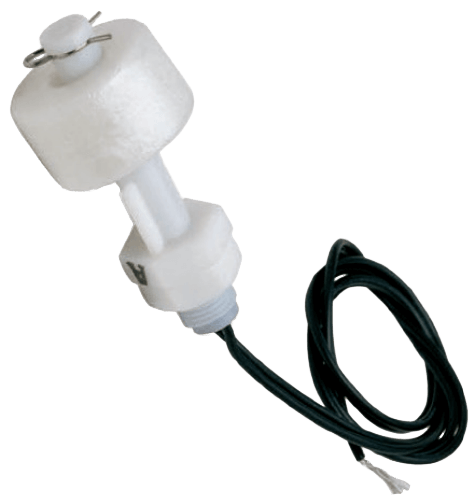

LFE Miniature Liquid Level Sensor

Brand: Automation Products Group Inc. (APG)
The LF Miniature Liquid Level Sensors are designed for reliable operation in small tanks and containers. Their rugged design and multiple configurations make them the perfect solution for OEM and large volume applications.
Features
  • Compact size
  • Low cost
  • Reliability/long switch life
  • Shock resistive construction
  • Can be used in a wide range of liquids
show more
Images are representations only.
The LF Miniature Liquid Level Sensors are designed for reliable operation in small tanks and containers. Their rugged design and multiple configurations make them the perfect solution for OEM and large volume applications.
Features
  • Compact size
  • Low cost
  • Reliability/long switch life
  • Shock resistive construction
  • Can be used in a wide range of liquids

LFE

Model

Switch

Switch

Switch

Specifications

Applications

  • Large Volume
  • Liquid
  • OEM Applications

BSP Connection

  • G 1/8" Male

Electrical - Free Leads

  • 22 AWG, 11.8" or 39.4" (300 or 1,000 mm)

Electrical Rating

  • 0.1 A at 100 Vac, 10 VA - Model LFE11P, LFE12P
  • 0.17 A at 300 Vac, 50 VA - Model LFE11R

Enclosure, Body Material

  • Buna
  • Polypropylene

Fluid Specific Gravity

  • 0.7 Minimum - Model LFE11R
  • 0.9 Minimum - Model LFE11P, LFE12P

Materials of Construction

  • Retainer: 316L Stainless Steel

Media

  • Hydraulic Oil - Model LFE11R
  • Lubricating Oil - Model LFE11R
  • Water - Model LFE11P, LFE12P

Mounting Position

  • Vertical

Operating Temperature

  • -10° to 90° C (14° to 194° F)

Pressure Rating

  • psi: 145 (kPa: 1,000, bar: 10) - Model LFE11R
  • psi: 7 (kPa: 50, bar: 0.5) - Model LFE11P, LFE12P

Sensor, Probe Style

  • Sensor: Float

Stem Material

  • Polypropylene
