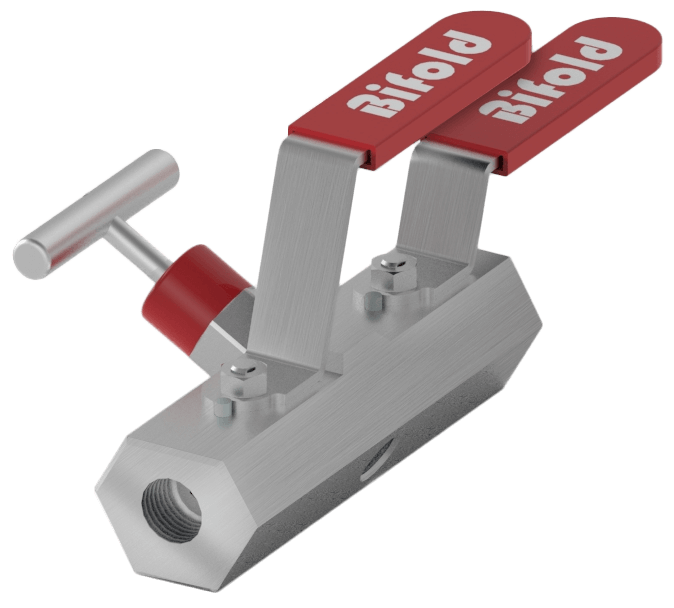

BV05 Double Block & Bleed Manifold (Hex Body)

Brand: Bifold Group
A Double Block & Bleed Ball-Needle-Ball Valve Manifold with pressures rated up to 10,000 psi / 690 bar. Manufactured from forged barstock, the two inline balls are the primary and secondary isolating valves with a needle type valve for the vent facility. The ball valve is designed to give bubble tight shut off through a 90° operation across the full operating temperature range of the valve.
Features
  • Anti-blow out stem internally loaded
  • Bi-directional
  • Precision machined stainless steel balls
  • Lever type handles as standard
  • Tamperproof lockable handle is available on the vent (option available)
  • Compact design to save space and weight
  • Full material traceability and individual serial number stamped on the valve
  • In compliance with NACE MR-0l-75 / ISO l5l56 as standard
  • RTFE stem seal and o-ring body seals
  • Stem seal design prevents galling and contamination
  • Panel mount as standard
  • Thread milled connections for improved sealing
  • Bubble tight shut-off
  • Low operating torque
  • Pressure energised stem sealing
show more
A Double Block & Bleed Ball-Needle-Ball Valve Manifold with pressures rated up to 10,000 psi / 690 bar. Manufactured from forged barstock, the two inline balls are the primary and secondary isolating valves with a needle type valve for the vent facility. The ball valve is designed to give bubble tight shut off through a 90° operation across the full operating temperature range of the valve.
Features
  • Anti-blow out stem internally loaded
  • Bi-directional
  • Precision machined stainless steel balls
  • Lever type handles as standard
  • Tamperproof lockable handle is available on the vent (option available)
  • Compact design to save space and weight
  • Full material traceability and individual serial number stamped on the valve
  • In compliance with NACE MR-0l-75 / ISO l5l56 as standard
  • RTFE stem seal and o-ring body seals
  • Stem seal design prevents galling and contamination
  • Panel mount as standard
  • Thread milled connections for improved sealing
  • Bubble tight shut-off
  • Low operating torque
  • Pressure energised stem sealing

Specifications

Brand

Approvals & Certifications

  • ISO 9001

Approvals & Certifications

  • Pressure Tested in Accordance with AP1 598 & BS EN 12266-1

Ball Material

  • Precision Machined Stainless Steel Balls

Bore Size

  • 0.19" (5 mm)

BSP Connection

  • 1/4" BSPP Female
  • 1/4" BSPT Female
  • 1/4" BSPP Male
  • 1/4" BSPT Male
  • 3/8" BSPP Female
  • 3/8" BSPT Female
  • 3/8" BSPP Male
  • 3/8" BSPT Male

BSP Inlet

  • 1/4" BSPP Female
  • 1/4" BSPT Female
  • 1/4" BSPP Male
  • 1/4" BSPT Male
  • 3/8" BSPP Female
  • 3/8" BSPT Female
  • 3/8" BSPP Male
  • 3/8" BSPT Male

BSP Outlet

  • 1/4" BSPP Female
  • 1/4" BSPT Female
  • 1/4" BPST Male
  • 1/4" BSPP Male
  • 3/8" BSPP Female
  • 3/8" BSPT Female
  • 3/8" BSPP Male
  • 3/8" BSPT Male

Cone & Thread Connection

  • 1/4" Female Medium-Pressure Cone & Thread
  • 3/8" Female Medium-Pressure Cone & Thread

Enclosure, Body Material

  • F55 / UNS S32760 Super Duplex
  • F5l / UNS S3l803 Duplex
  • LF2/Carbon Steel
  • UNS S3l600 / S3l603 Stainless Steel (Standard Material)

Media

  • Gas

Mounting

  • Panel Mount

NACE & NIST

  • NACE MR-01-75

NPT Connection

  • 1/4" NPT Female
  • 1/4" NPT Male
  • 3/8" NPT Female
  • 3/8" NPT Male

NPT Inlet

  • 1/4" NPT Female
  • 1/4" NPT Male
  • 3/8" NPT Female
  • 3/8" NPT Male

NPT Outlet

  • 1/4" NPT Female
  • 1/4" NPT Male
  • 3/8" NPT Female
  • 3/8" NPT Male

Operating Temperature

  • -20° to 180° C (-4° to 356° F) Standard
  • -45° to 225° C (-49° to 437° F) Alternative Temperature Range

O-Ring Material

  • RTFE: O-Ring Body Seal

Pipe Size

  • 1/4"
  • 3/8"

Pressure Range

  • psi: 0 to 10,000 (kPa: 0 to 69,000, bar: 0 to 690)

Rotation

  • Bi-Directional
  • Bubble Tight Shut Off through A 90° Operation

SAE Connection

  • 1/4" SAE Female Straight Thread
  • 1/4" SAE Male Straight Thread
  • 3/8" SAE Female Straight Thread
  • 3/8" SAE Male Straight Thread

SAE Inlet

  • 1/4" SAE Female Straight Thread
  • 1/4" SAE Male Straight Thread
  • 3/8" SAE Female Straight Thread
  • 3/8" SAE Male Straight Thread

SAE Outlet

  • 1/4" SAE Female Straight Thread
  • 1/4" SAE Male Straight Thread
  • 3/8" SAE Female Straight Thread
  • 3/8" SAE Male Straight Thread

Seat / Seal Material

  • Seal: RTFE Elastomer (V91A, E98E)
  • Seal: Viton Elastomer
  • Seat: Carbon Filled PEEK
  • Seat: Glass-Filled PTFE
  • Seat: PEEK
  • Seat: PPS
  • Seat: PTFE

Supply Pressure - Maximum

  • psi: 10,000 (kPa: 68,950, bar: 689.5) - Maximum

Valve Type

  • Manual

Vent

  • Anti Tamper Vent
  • Plugged Vent

Vent Connection Size

  • 1/8" NPT

Vent Connection Style

  • Female NPT
  • Male NPT

Welded Connection

  • 1/4" Butt Weld End
  • 1/4" Socket Weld End
  • 3/8" Butt Weld End
  • 3/8" Socket Weld End
