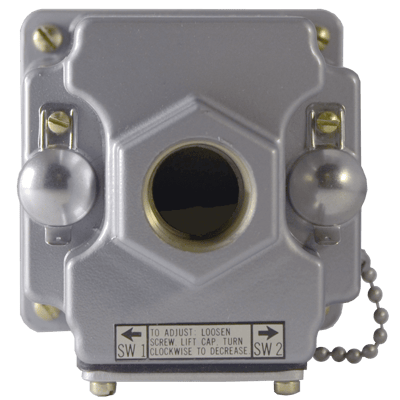

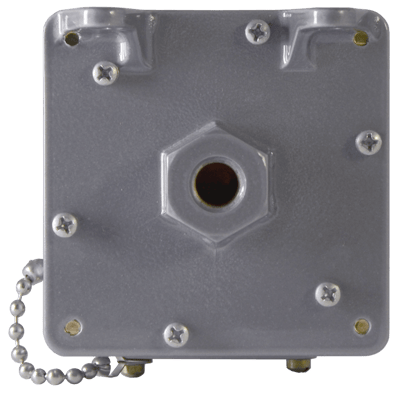

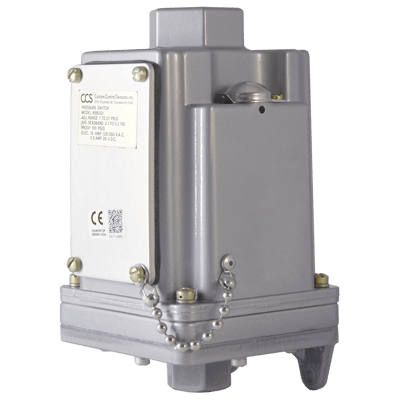

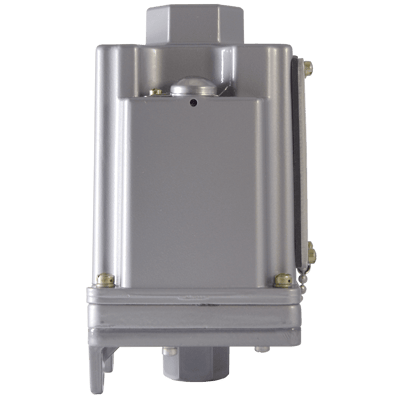

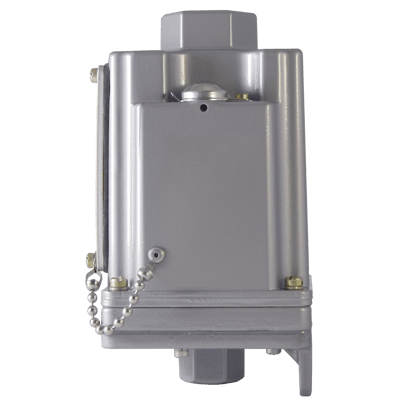

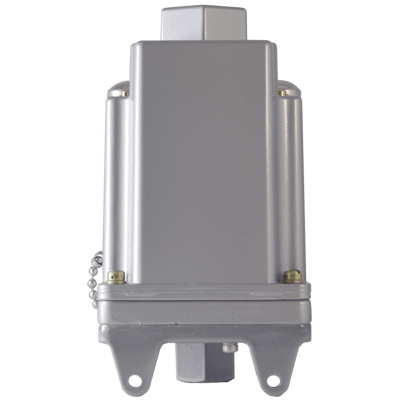

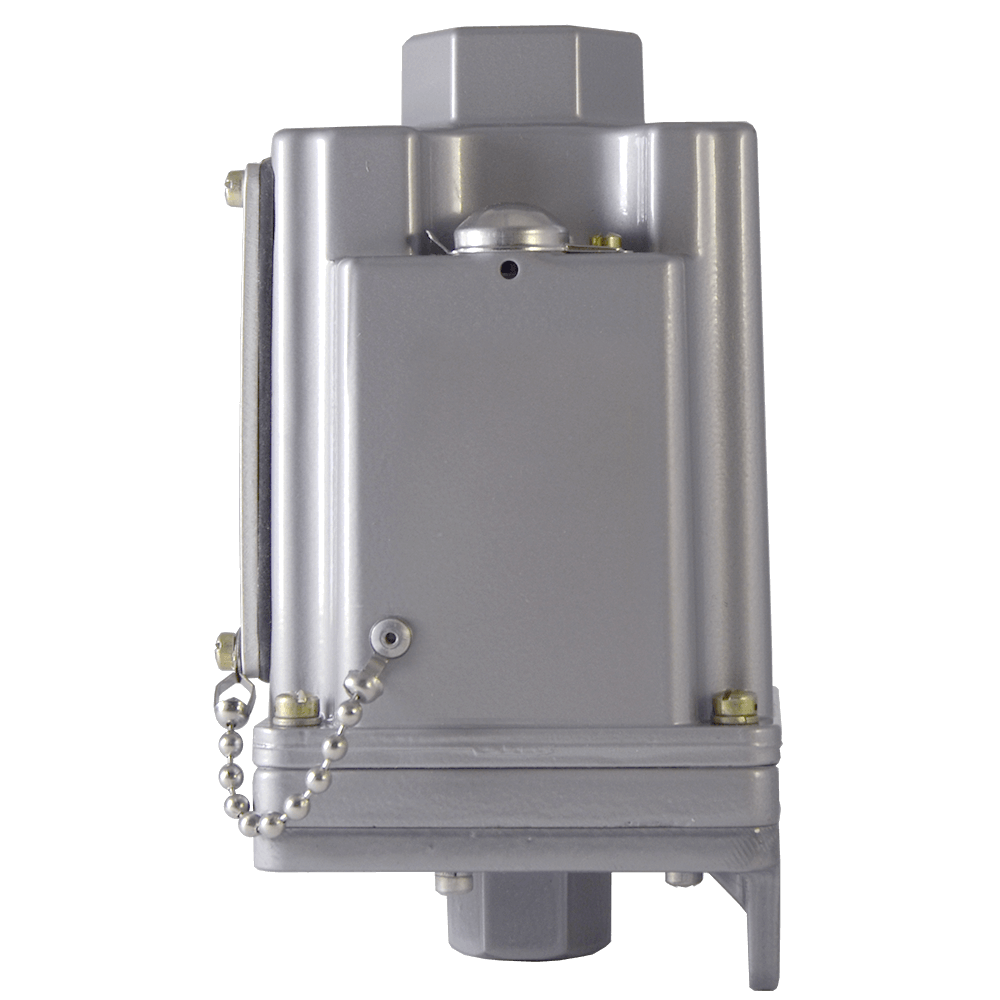

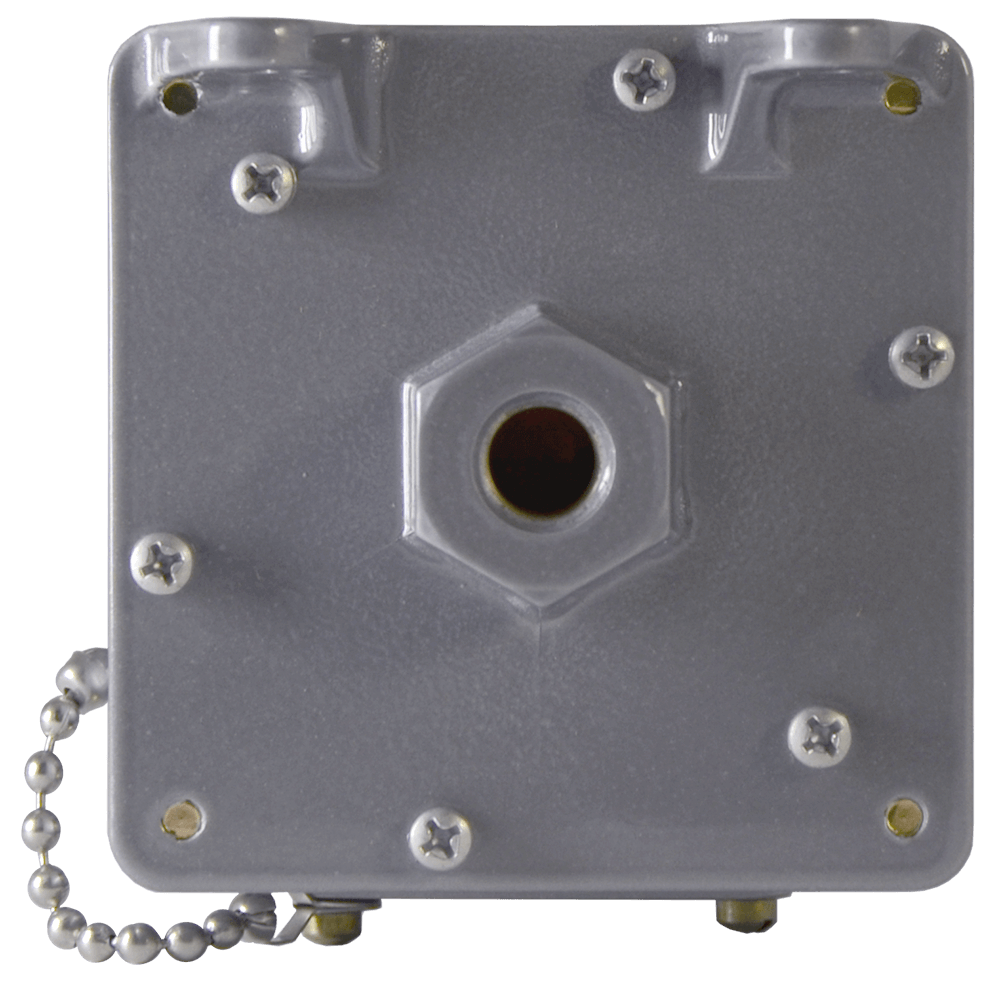

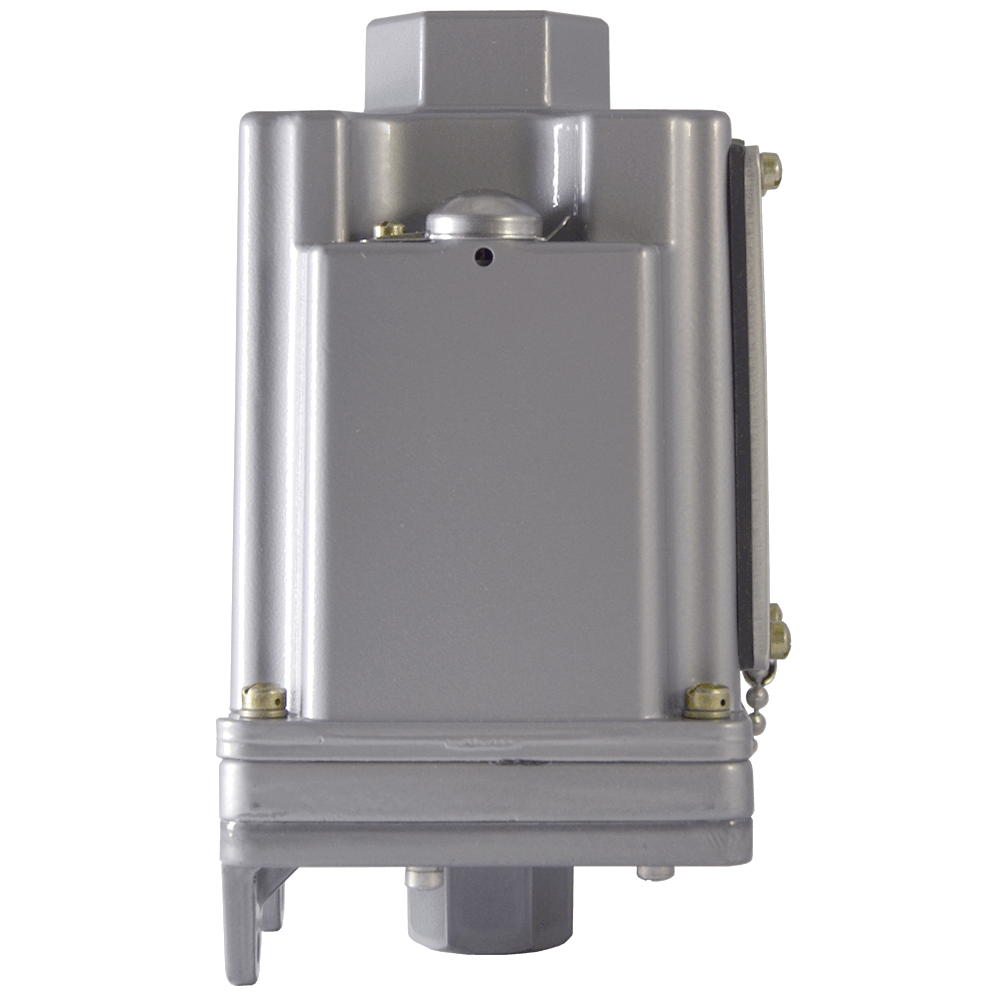

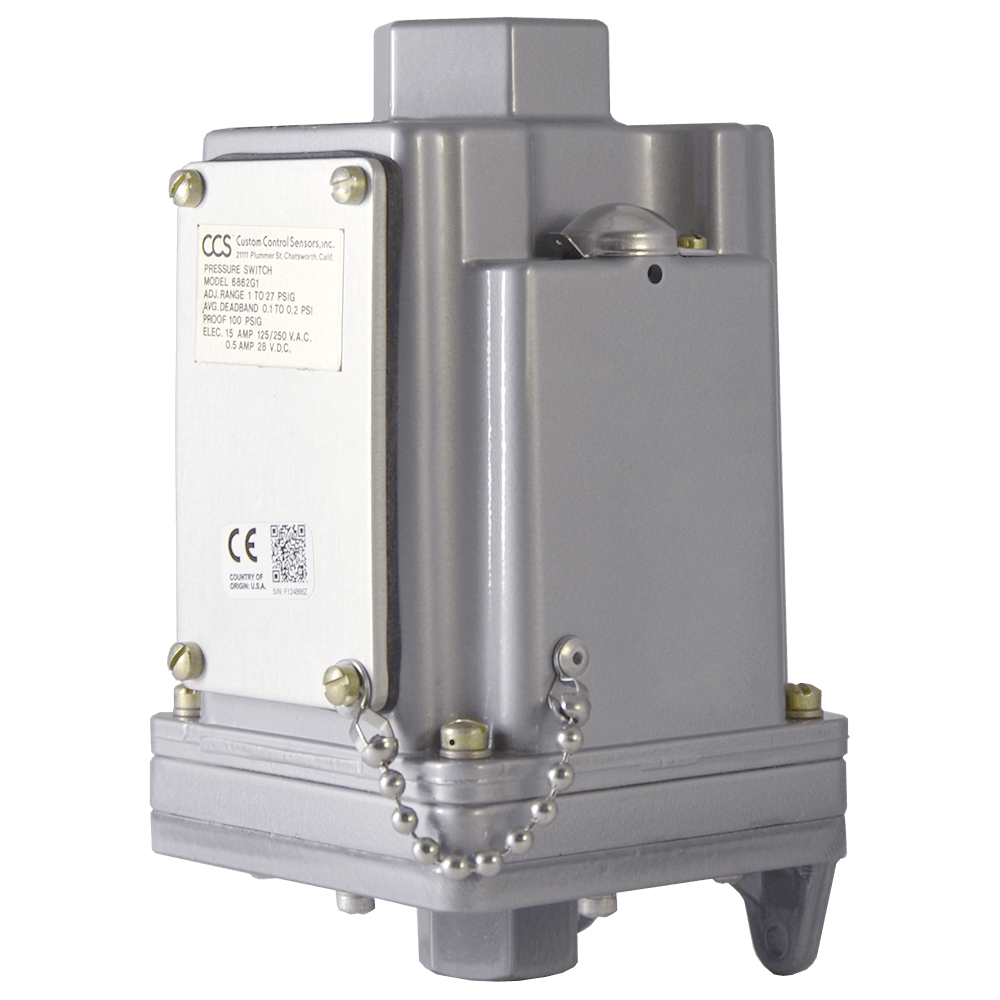

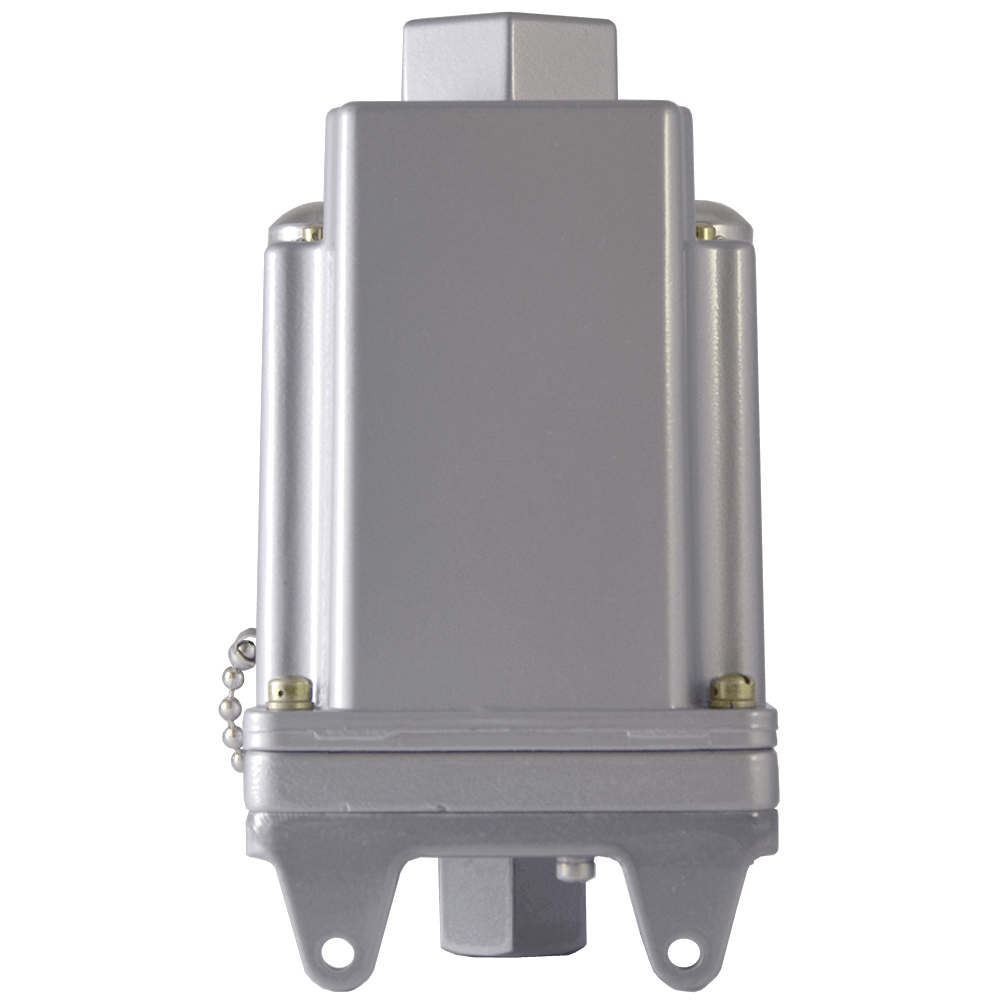

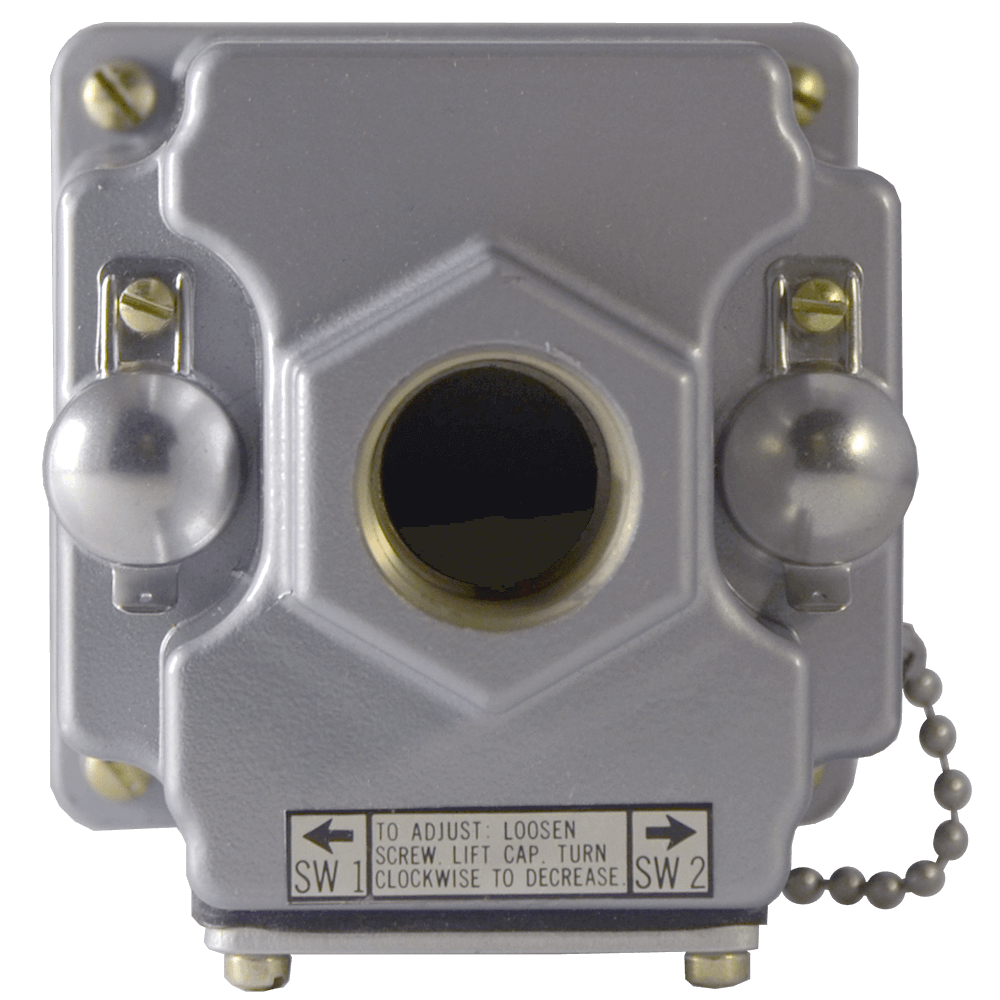

Images are representations only.

6862G Series Pressure Switch

Brand: Custom Control Sensors
  • Rigid and internally adjustable for convenient field set point adjustment.
  • Repeatable and stable set points.
  • High cycle life.
  • High over-pressure capability.
  • Equipped with certified explosion proof electrical enclosure.
  • Allows for dual set points.
SHIPPING WEIGHT: APPROXIMATELY 7 LBS. (3.2 KGS)
show more
  • Rigid and internally adjustable for convenient field set point adjustment.
  • Repeatable and stable set points.
  • High cycle life.
  • High over-pressure capability.
  • Equipped with certified explosion proof electrical enclosure.
  • Allows for dual set points.
SHIPPING WEIGHT: APPROXIMATELY 7 LBS. (3.2 KGS)

Specifications

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • CE
  • CRN
  • CRN - Saskatchewan
  • EMC
  • LVD
  • RoHS

Deadband, Approximate

  • mbar: 6.89 to 68.9
  • psi: 0.1 to 1

Diaphragm Material

  • Polyimide

Electrical Connectors

  • 3/4" NPT Female

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • Gold Contacts Option: 1 A Maximum
  • SPDT: 15 A at 125/250/480 Vac Res, 0.4 A at 125 Vdc, 0.2 A at 250 Vdc

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65
  • NEMA 13
  • NEMA 4
  • Non-Hazardous Area

NPT Connection

  • 1/4" NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Buna-N

Proof Pressure

  • bar: 6.89 to 17.24
  • kPa: 689.5 to 1,724
  • psig: 100 to 250

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • bar: 0.065 to 6.79
  • kPa: 6.6 to 679.1
  • psig: 0.95 to 98.5

Set Point - Increasing

  • bar: 0.069 to 6.89
  • kPa: 6.9 to 689.4
  • psig: 1 to 100

Standard Features

  • Weatherproof

System Pressure

  • bar: 5.17 to 13.79
  • kPa: 517.2 to 1,379
  • psig: 75 to 200
