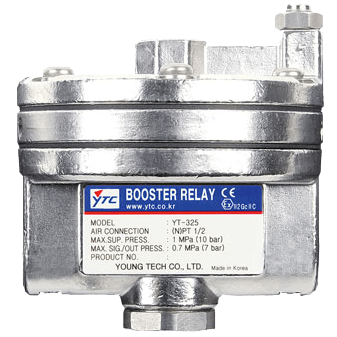

YT-325 Volume Booster

Brand: Young Tech Co., Ltd
The YT-325 Volume Booster Relay is used in pneumatic control valve which receives the output signal from positioned and supply air pressure to actuator to reduce opening and closing time of the valve.

  • Supply/Outlet Connection: 1/2" NPT
  • Signal Connection: 1/4" PT or NPT
  • Signal and Output Pressure: psig: 101 (bar: 7, kPa: 700, MPa: 0.7)
  • Supply Pressure: psig: 145 (bar: 10, kPa: 1,000, MPa: 1)
  • Pressure Ratio: 1:1 Signal:Output
  • Flow Capacity:
    • Exhaust: 2.08 Cv
    • Output: 2.72 Cv
  • Material of Construction: Stainless Steel
  • Temperature Range:
    • -20°C to +70°C (-4°F to +158°F)
    • -20°C to +120°C (-4°F to +248°F)
    • -40°C to +70°C (-40°F to +158°F)
show more
Images are representations only.
The YT-325 Volume Booster Relay is used in pneumatic control valve which receives the output signal from positioned and supply air pressure to actuator to reduce opening and closing time of the valve.

  • Supply/Outlet Connection: 1/2" NPT
  • Signal Connection: 1/4" PT or NPT
  • Signal and Output Pressure: psig: 101 (bar: 7, kPa: 700, MPa: 0.7)
  • Supply Pressure: psig: 145 (bar: 10, kPa: 1,000, MPa: 1)
  • Pressure Ratio: 1:1 Signal:Output
  • Flow Capacity:
    • Exhaust: 2.08 Cv
    • Output: 2.72 Cv
  • Material of Construction: Stainless Steel
  • Temperature Range:
    • -20°C to +70°C (-4°F to +158°F)
    • -20°C to +120°C (-4°F to +248°F)
    • -40°C to +70°C (-40°F to +158°F)

YT-325

Temperature Range

Specifications

Ambient Temperature Range

  • -20° to 120° C (-4° to 248° F)
  • -20° to 70° C (-4° to 158° F)
  • -40° to 70° C (-40° to 158° F)

Approvals & Certifications

  • CE
  • SIL 3

Enclosure, Body Material

  • 316 Stainless Steel

Flow Capacity

  • Exhaust: 2.08 Cv
  • Output: 2.72 Cv

Independent Linearity

  • ± 1% of Full Scale

NPT Connection

  • 1/2" NPT Female

Ratio

  • 0.042361111111

Signal or Output Pressure - Maximum

  • bar: 7
  • kPa: 700
  • MPa: 0.7
  • psig: 101

Supply Pressure - Maximum

  • bar: 10
  • kPa: 1,000
  • MPa: 1
  • psig: 145
